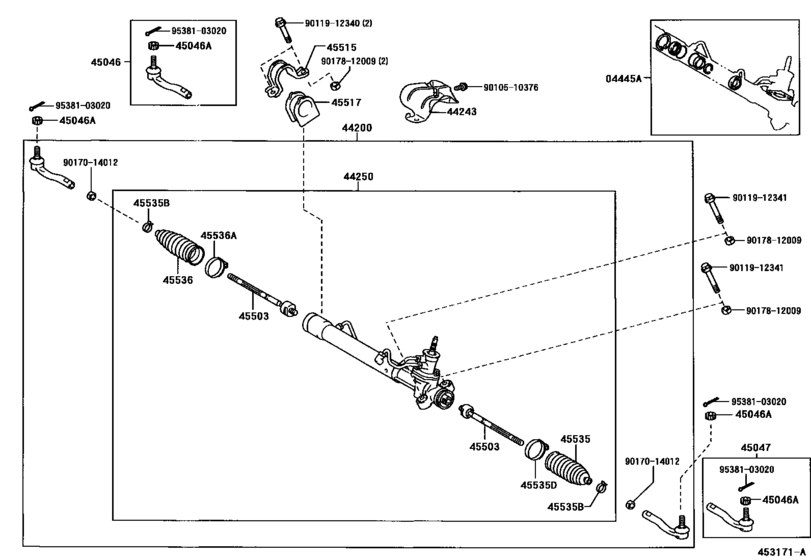

Front Steering Gear & Link ([08.2002 - ] W(POWER STEERING) (0208- )) Diagram Toyota ECHO
- Year
- 1999 - 2006
- Sales region
- U.S.A.
- Frame
- NCP12
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1999
- To
- 02.2006
- No.of Doors
- 2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-52010 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1999 - 08.2002] NCP12 |
04445-52010 |
US $80.72 |
||
|
44200
|
44200
44200-52140 Link Assy, Power Steering[08.1999 - 08.2002] NCP12 |
44200-52140 |
US $1,485.12 |
||
| replacement | |||||
|
44200
|
44200
44250-52110 Gear Assy, Power Steering(For Rack & Pinion)[08.1999 - 08.2002] NCP12 |
44250-52110 |
US $1,368.64 |
||
|
44200
|
44200
44200-52340 Link Assy, Power Steering[08.2002 -] NCP12 |
44200-52340 |
US $1,470.56 |
||
| replacements | |||||
|
44200
|
44200
44250-52200 Gear Assy, Power Steering(For Rack & Pinion)[08.2002 -] NCP12 |
44250-52200 |
US $1,470.56 |
||
|
44200
|
44200
45046-19175 End Sub-Assy, Tie Rod[08.2002 -] NCP12 |
45046-19175 |
from US $46.06 |
||
|
44200
|
44200
90170-14012 Nut, Rack End Lock[08.2002 -] NCP12 |
90170-14012 |
from US $1.09 |
||
|
44243
|
44243
44243-52010
Insulator, Power Steering Rack Housing Heat
[08.1999 - 08.2002] NCP12 |
44243-52010 |
— | ||
|
44250
|
44250
44250-52110 Gear Assy, Power Steering(For Rack & Pinion)[08.1999 - 08.2002] NCP12 |
44250-52110 |
US $1,368.64 |
||
|
44250
|
44250
44250-52200 Gear Assy, Power Steering(For Rack & Pinion)[08.2002 - 09.2002] NCP12 |
44250-52200 |
US $1,470.56 |
||
|
45046
|
45046
45046-19175 End Sub-Assy, Tie Rod[08.2002 -] NCP12 W(POWER STEERING) |
45046-19175 |
from US $46.06 |
||
|
45046
|
45046
45046-59025
End Sub-Assy, Tie Rod, Rh
[08.1999 - 11.1999] NCP12 |
45046-59025 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-59026 End Sub-Assy, Tie Rod, Rh[08.1999 - 11.1999] NCP12 |
45046-59026 |
from US $47.58 |
||
|
45046
|
45046
45046-59026 End Sub-Assy, Tie Rod, Rh[11.1999 - 08.2002] NCP12 |
45046-59026 |
from US $47.58 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1999 - 08.2002] NCP12 |
90171-12028 |
from US $1.38 |
||
|
45047
|
45047
45046-19175 End Sub-Assy, Tie Rod[08.2002 -] NCP12 W(POWER STEERING) |
45046-19175 |
from US $46.06 |
||
|
45047
|
45047
45047-59025
End Sub-Assy, Tie Rod, Rh
[08.1999 - 11.1999] NCP12 |
45047-59025 |
— | ||
| replacement | |||||
|
45047
|
45047
45047-59026 End Sub-Assy, Tie Rod, Rh[08.1999 - 11.1999] NCP12 |
45047-59026 |
from US $50.04 |
||
|
45047
|
45047
45047-59026 End Sub-Assy, Tie Rod, Rh[11.1999 - 08.2002] NCP12 |
45047-59026 |
from US $50.04 |
||
|
45503
|
45503
45503-59045 End Sub-Assy, Steering Rack[08.1999 - 08.2002] NCP12 L=256 |
45503-59045 |
from US $77.28 |
||
|
45503
|
45503
45503-59055 End Sub-Assy, Steering Rack[08.2002 - 02.2006] NCP12 L=356 |
45503-59055 |
from US $105.08 |
||
|
45515
|
45515
45515-52010 Bracket, Steering Rack Housing, No.2[08.1999 - 08.2002] NCP12 |
45515-52010 |
US $9.09 |
||
|
45517
|
45517
45517-52010 Grommet, Steering Rack Housing, No.2[08.1999 - 08.2002] NCP12 W(POWER STEERING) |
45517-52010 |
US $20.52 |
||
|
45517
|
45517
45517-52020 Grommet, Steering Rack Housing, No.2[08.1999 - 08.2002] NCP12 W(MANUAL STEERING) |
45517-52020 |
US $18.20 |
||
|
45535
|
45535
45535-52010 Boot, Steering Rack, No.1[08.1999 - 08.2002] NCP12 W(POWER STEERING) |
45535-52010 |
from US $11.49 |
||
|
45535
|
45535
45535-52030 Boot, Steering Rack, No.1[08.1999 - 08.2002] NCP12 W(MANUAL STEERING) |
45535-52030 |
from US $17.33 |
||
|
45535
|
45535
45535-52060 Boot, Steering Rack, No.1[08.2002 -] NCP12 W(POWER STEERING) |
45535-52060 |
from US $9.83 |
||
|
45535B
|
45535B
90466-17001
Clip(For Steering Rack Boot)
[08.1999 - 08.2002] NCP12 W(MANUAL STEERING) |
90466-17001 |
— | ||
|
45535B
|
45535B
90467-17021 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1999 - 08.2002] NCP12 W(POWER STEERING) |
90467-17021 |
US $1.92 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2002 -] NCP12 W(POWER STEERING) |
90467-19021 |
from US $1.50 |
||
|
45535D
|
45535D
90460-58008 Clamp(For Steering Rack Boot)[08.1999 - 08.2002] NCP12 |
90460-58008 |
from US $6.16 |
||
|
45536
|
45536
45535-52010 Boot, Steering Rack, No.1[08.1999 - 08.2002] NCP12 W(POWER STEERING) |
45535-52010 |
from US $11.49 |
||
|
45536
|
45536
45535-52030 Boot, Steering Rack, No.1[08.1999 - 08.2002] NCP12 W(MANUAL STEERING) |
45535-52030 |
from US $17.33 |
||
|
45536
|
45536
45535-52060 Boot, Steering Rack, No.1[08.2002 -] NCP12 W(POWER STEERING) |
45535-52060 |
from US $9.83 |
||
|
45536A
|
45536A
90460-58008 Clamp(For Steering Rack Boot)[08.1999 - 08.2002] NCP12 |
90460-58008 |
from US $6.16 |
||
|
9010510376
|
9010510376
90105-10376 Bolt(For Transaxle & Engine Setting) |
90105-10376 |
US $1.76 |
||
|
9011912340
|
9011912340
90119-12340 BOLT WWASHER |
90119-12340 |
from US $3.84 |
||
|
9011912341
|
9011912341
90119-12341 New Genuine Part |
90119-12341 |
US $5.07 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.09 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
from US $1.74 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
