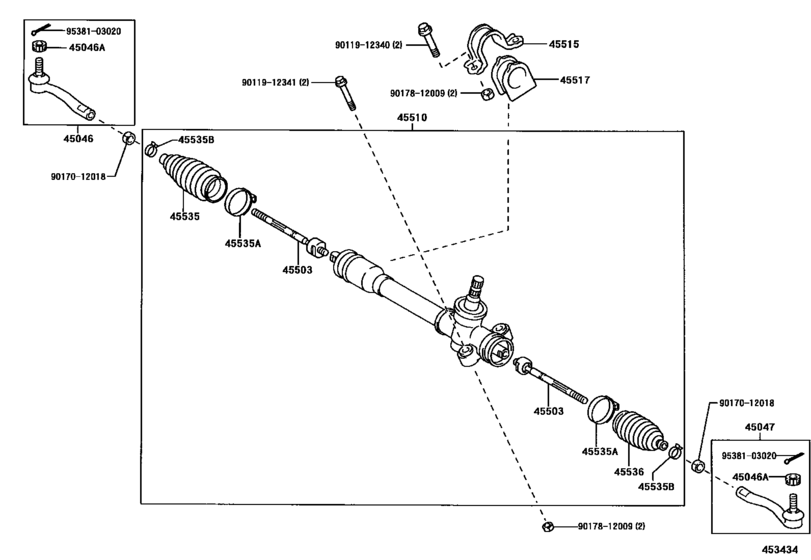

Front Steering Gear & Link ([08.2002 - ] W(MANUAL STEERING) (0208- )) Diagram Toyota ECHO
- Year
- 1999 - 2006
- Sales region
- U.S.A.
- Frame
- NCP12
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1999
- To
- 02.2006
- No.of Doors
- 2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-19175 End Sub-Assy, Tie Rod[08.2002 -] NCP12 W(POWER STEERING) |
45046-19175 |
from US $46.06 |
||
|
45046
|
45046
45046-59025
End Sub-Assy, Tie Rod, Rh
[08.1999 - 11.1999] NCP12 |
45046-59025 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-59026 End Sub-Assy, Tie Rod, Rh[08.1999 - 11.1999] NCP12 |
45046-59026 |
from US $47 |
||
|
45046
|
45046
45046-59026 End Sub-Assy, Tie Rod, Rh[11.1999 - 08.2002] NCP12 |
45046-59026 |
from US $47 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1999 - 08.2002] NCP12 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-19175 End Sub-Assy, Tie Rod[08.2002 -] NCP12 W(POWER STEERING) |
45046-19175 |
from US $46.06 |
||
|
45047
|
45047
45047-59025
End Sub-Assy, Tie Rod, Rh
[08.1999 - 11.1999] NCP12 |
45047-59025 |
— | ||
| replacement | |||||
|
45047
|
45047
45047-59026 End Sub-Assy, Tie Rod, Rh[08.1999 - 11.1999] NCP12 |
45047-59026 |
from US $50.04 |
||
|
45047
|
45047
45047-59026 End Sub-Assy, Tie Rod, Rh[11.1999 - 08.2002] NCP12 |
45047-59026 |
from US $50.04 |
||
|
45503
|
45503
45503-59045 End Sub-Assy, Steering Rack[08.1999 - 08.2002] NCP12 L=256 |
45503-59045 |
from US $85.84 |
||
|
45503
|
45503
45503-59055 End Sub-Assy, Steering Rack[08.2002 - 02.2006] NCP12 L=356 |
45503-59055 |
US $105.08 |
||
|
45510
|
45510
45510-52020
Gear Assy, Steering
[08.1999 - 08.2002] NCP12 |
45510-52020 |
— | ||
|
45515
|
45515
45515-52010 Bracket, Steering Rack Housing, No.2[08.1999 - 08.2002] NCP12 |
45515-52010 |
US $9.09 |
||
|
45517
|
45517
45517-52010 Grommet, Steering Rack Housing, No.2[08.1999 - 08.2002] NCP12 W(POWER STEERING) |
45517-52010 |
from US $20.52 |
||
|
45517
|
45517
45517-52020 Grommet, Steering Rack Housing, No.2[08.1999 - 08.2002] NCP12 W(MANUAL STEERING) |
45517-52020 |
US $18.20 |
||
|
45535
|
45535
45535-52010 Boot, Steering Rack, No.1[08.1999 - 08.2002] NCP12 W(POWER STEERING) |
45535-52010 |
from US $11.49 |
||
|
45535
|
45535
45535-52030 Boot, Steering Rack, No.1[08.1999 - 08.2002] NCP12 W(MANUAL STEERING) |
45535-52030 |
US $17.33 |
||
|
45535
|
45535
45535-52060 Boot, Steering Rack, No.1[08.2002 -] NCP12 W(POWER STEERING) |
45535-52060 |
from US $9.89 |
||
|
45535A
|
45535A
90904-67039 Clamp(For Steering Rack Boot)[08.1999 - 08.2002] NCP12 |
90904-67039 |
US $4.22 |
||
|
45535B
|
45535B
90466-17001
Clip(For Steering Rack Boot)
[08.1999 - 08.2002] NCP12 W(MANUAL STEERING) |
90466-17001 |
— | ||
|
45535B
|
45535B
90467-17021 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1999 - 08.2002] NCP12 W(POWER STEERING) |
90467-17021 |
US $1.92 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2002 -] NCP12 W(POWER STEERING) |
90467-19021 |
from US $1.52 |
||
|
45536
|
45536
45535-52010 Boot, Steering Rack, No.1[08.1999 - 08.2002] NCP12 W(POWER STEERING) |
45535-52010 |
from US $11.49 |
||
|
45536
|
45536
45535-52030 Boot, Steering Rack, No.1[08.1999 - 08.2002] NCP12 W(MANUAL STEERING) |
45535-52030 |
US $17.33 |
||
|
45536
|
45536
45535-52060 Boot, Steering Rack, No.1[08.2002 -] NCP12 W(POWER STEERING) |
45535-52060 |
from US $9.89 |
||
|
9011912340
|
9011912340
90119-12340 BOLT WWASHER |
90119-12340 |
US $5.07 |
||
|
9011912341
|
9011912341
90119-12341 New Genuine Part |
90119-12341 |
US $5.07 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
US $1.92 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
