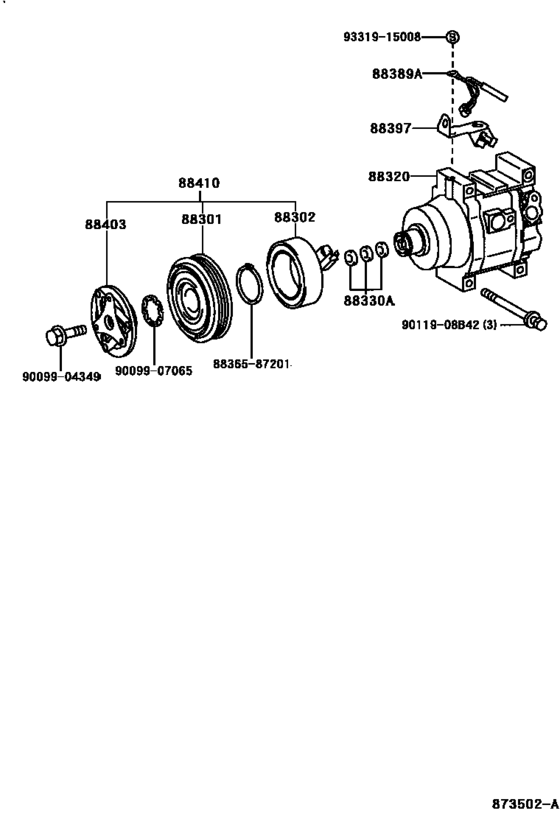

Heating & Air Conditioning - Compressor ([08.1999 - 08.2002] (9908-0208)) Diagram Toyota ECHO
- Year
- 1999 - 2006
- Sales region
- U.S.A.
- Frame
- NCP12
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1999
- To
- 02.2006
- No.of Doors
- 2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-1A160
Rotor Sub-Assy, Magnet Clutch
[08.2000 - 08.2002] NCP12 |
88412-1A160 |
— | ||
|
88301
|
88301
88412-52040 Rotor Sub-Assy, Magnet Clutch[08.1999 - 08.2000] NCP12 |
88412-52040 |
US $261.53 |
||
|
88302
|
88302
88411-16070 Stator Sub-Assy, Magnet Clutch[08.1999 - 08.2000] NCP12 |
88411-16070 |
US $59.62 |
||
|
88302
|
88302
88411-1A050
Stator Sub-Assy, Magnet Clutch
[08.2000 - 08.2002] NCP12 |
88411-1A050 |
— | ||
|
88320
|
88320
88320-52010
Compressor Assy, Cooler
[03.2001 - 08.2002] NCP12 W(MANUAL AIR CONDITIONER---DIAL TYPE) |
88320-52010 |
— | ||
|
88320
|
88320
88320-52040
Compressor Assy, Cooler
[08.1999 - 08.2002] NCP12 |
88320-52040 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-52010
Compressor Assy, Cooler
[08.1999 - 08.2002] NCP12 |
88320-52010 |
— | ||
|
88320
|
88320
88320-52120
Compressor Assy, Cooler
[08.2002 - 08.2003] NCP12 |
88320-52120 |
— | ||
|
88320
|
88320
88320-52400
Compressor Assy, Cooler
[08.2003 - 11.2005] NCP12 |
88320-52400 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[08.1999 - 08.2002] NCP12 |
88335-14020 |
from US $1.25 |
||
|
88389A
|
88389A
88389-10020
Wire, Compressor
[08.1999 - 08.2002] NCP12 |
88389-10020 |
— | ||
|
88397
|
88397
88397-52020
Clip, Sensor
[08.1999 - 08.2002] NCP12 |
88397-52020 |
— | ||
|
88403
|
88403
88403-16020
Hub Sub-Assy, Magnet Clutch
[08.1999 - 08.2000] NCP12 |
88403-16020 |
— | ||
|
88403
|
88403
88403-1A020
Hub Sub-Assy, Magnet Clutch
[08.2000 - 08.2002] NCP12 |
88403-1A020 |
— | ||
|
88410
|
88410
88410-1A210 Clutch Assy, Magnet[08.2000 - 08.2002] NCP12 |
88410-1A210 |
from US $474.45 |
||
|
88410
|
88410
88410-52050 Clutch Assy, Magnet[08.1999 - 08.2000] NCP12; NCP12 DEALER OPTION |
88410-52050 |
from US $381.21 |
||
|
88410
|
88410
88410-52140 Clutch Assy, Magnet[08.2002 - 07.2003] NCP12 |
88410-52140 |
US $556.19 |
||
| replacement | |||||
|
88410
|
88410
88410-52141 Clutch Assy, Magnet[08.2002 - 07.2003] NCP12 |
88410-52141 |
US $556.19 |
||
|
88410
|
88410
88410-52230
Clutch Assy, Magnet
[08.2003 - 02.2006] NCP12 |
88410-52230 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.15 |
||
|
8836587201
|
8836587201
88365-87201 Ring, Snap |
88365-87201 |
from US $1.75 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.13 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
