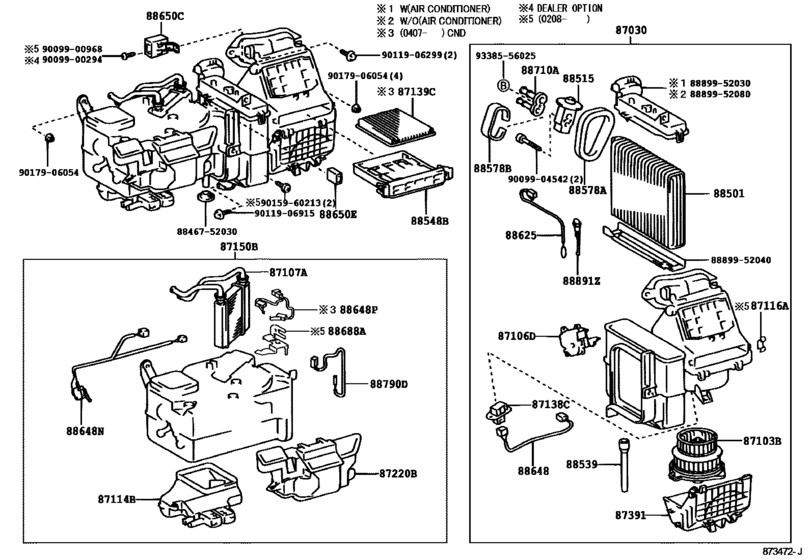

Heating & Air Conditioning - Cooler Unit ([08.1999 - ] USA=COLD SPEC (9908- )) Diagram Toyota ECHO
- Year
- 1999 - 2006
- Sales region
- U.S.A.
- Frame
- NCP12
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1999
- To
- 02.2006
- No.of Doors
- 2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87030
|
87030
87030-52090
Blower Assy, Air Conditioner
[08.1999 - 08.2002] NCP12..CND W(AIR CONDITIONER); NCP12..USA COLD SPEC & W(AIR CONDITIONER) |
87030-52090 |
— | ||
|
87030
|
87030
87030-52091
Blower Assy, Air Conditioner
[03.2003 - 04.2004] NCP12..CND W(AIR CONDITIONER); NCP12..USA COLD SPEC & W(AIR CONDITIONER) |
87030-52091 |
— | ||
|
87030
|
87030
87030-52100
Blower Assy, Air Conditioner
[08.1999 - 08.2002] NCP12..CND; NCP12..USA COLD SPEC |
87030-52100 |
— | ||
|
87030
|
87030
87030-52101
Blower Assy, Air Conditioner
[03.2003 - 04.2004] NCP12..CND; NCP12..USA COLD SPEC |
87030-52101 |
— | ||
|
87030
|
87030
87030-52170
Blower Assy, Air Conditioner
[08.1999 - 08.2002] NCP12..USA W(AIR CONDITIONER) |
87030-52170 |
— | ||
| replacement | |||||
|
87030
|
87030
87030-52172 Blower Assy, Air ConditionerAIR CONDITIONER [08.1999 - 08.2002] NCP12..USA W(AIR CONDITIONER) |
87030-52172 |
US $1,291.21 |
||
|
87030
|
87030
87030-52171
Blower Assy, Air Conditioner
[09.2002 - 03.2003] NCP12..USA W(AIR CONDITIONER) |
87030-52171 |
— | ||
|
87030
|
87030
87030-52172 Blower Assy, Air ConditionerAIR CONDITIONER [03.2003 - 02.2006] NCP12..USA W(AIR CONDITIONER) |
87030-52172 |
US $1,291.21 |
||
|
87030
|
87030
87030-52180
Blower Assy, Air Conditioner
[08.1999 - 08.2002] NCP12..USA |
87030-52180 |
— | ||
|
87103B
|
87103B
87103-52040
Motor Sub-Assy, Blower W/fan
[08.1999 - 08.2002] NCP12..CND; NCP12..USA COLD SPEC |
87103-52040 |
— | ||
|
87103B
|
87103B
87103-52060
Motor Sub-Assy, Blower W/fan
[08.1999 - 08.2002] NCP12..USA |
87103-52060 |
— | ||
|
87103B
|
87103B
87103-52080
Motor Sub-Assy, Blower W/fan
[03.2003 - 02.2006] NCP12..CND; NCP12..USA COLD SPEC |
87103-52080 |
— | ||
|
87106D
|
87106D
87106-52040
Servo Sub-Assy, Damper, No.1
[08.1999 - 08.2002] NCP12 |
87106-52040 |
— | ||
|
87107A
|
87107A
87107-52020
Unit Sub-Assy, Heater Radiator
[08.1999 - 08.2002] NCP12..USA |
87107-52020 |
— | ||
|
87107A
|
87107A
87107-52030
Unit Sub-Assy, Heater Radiator
[08.1999 - 08.2002] NCP12..CND; NCP12..USA COLD SPEC |
87107-52030 |
— | ||
| replacement | |||||
|
87107A
|
87107A
87107-52031
Unit Sub-Assy, Heater Radiator
[08.1999 - 08.2002] NCP12..CND; NCP12..USA COLD SPEC |
87107-52031 |
— | ||
|
87114B
|
87114B
87114-52040
Cover, Heater
[08.1999 - 08.2002] NCP12..USA |
87114-52040 |
— | ||
|
87114B
|
87114B
87114-52050
Cover, Heater
[08.1999 - 08.2002] NCP12..CND; NCP12..USA COLD SPEC |
87114-52050 |
— | ||
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[08.2002 - 11.2005] NCP12 |
87116-14010 |
— | ||
|
87138C
|
87138C
87138-52010 Resistor, Blower[08.1999 - 08.2002] NCP12 |
87138-52010 |
from US $16.77 |
||
|
87150B
|
87150B
87150-52070
Radiator Assy, Heater
[08.1999 - 08.2002] NCP12..USA |
87150-52070 |
— | ||
| replacement | |||||
|
87150B
|
87150B
87150-52071 Radiator Assy, HeaterHEATER [08.1999 - 08.2002] NCP12..USA |
87150-52071 |
US $416.54 |
||
|
87150B
|
87150B
87150-52071 Radiator Assy, HeaterHEATER [11.2003 - 02.2006] NCP12..USA |
87150-52071 |
US $416.54 |
||
|
87150B
|
87150B
87150-52090
Radiator Assy, Heater
[08.1999 - 08.2002] NCP12..CND; NCP12..USA COLD SPEC |
87150-52090 |
— | ||
| replacement | |||||
|
87150B
|
87150B
87150-52093
Radiator Assy, Heater
[08.1999 - 08.2002] NCP12..CND; NCP12..USA COLD SPEC |
87150-52093 |
— | ||
|
87150B
|
87150B
87150-52091
Radiator Assy, Heater
[11.2003 - 04.2004] NCP12..CND; NCP12..USA COLD SPEC |
87150-52091 |
— | ||
| replacement | |||||
|
87150B
|
87150B
87150-52093
Radiator Assy, Heater
[11.2003 - 04.2004] NCP12..CND; NCP12..USA COLD SPEC |
87150-52093 |
— | ||
|
87150B
|
87150B
87150-52092
Radiator Assy, Heater
[05.2004 - 02.2006] NCP12 COLD SPEC |
87150-52092 |
— | ||
| replacement | |||||
|
87150B
|
87150B
87150-52093
Radiator Assy, Heater
[05.2004 - 02.2006] NCP12 COLD SPEC |
87150-52093 |
— | ||
|
87220B
|
87220B
87220-52020
Duct Assy, Air
[08.1999 - 08.2002] NCP12 |
87220-52020 |
— | ||
|
87391
|
87391
87391-52020
Cover, Blower Motor
[08.1999 - 08.2002] NCP12 |
87391-52020 |
— | ||
| replacement | |||||
|
87391
|
87391
87391-52021
Cover, Blower Motor
[08.1999 - 08.2002] NCP12 |
87391-52021 |
— | ||
|
87391
|
87391
87391-52021
Cover, Blower Motor
[03.2003 - 02.2006] NCP12..USA |
87391-52021 |
— | ||
|
88501
|
88501
88501-52020
Evaporator Sub-Assy, Cooler, No.1
[08.1999 - 08.2002] NCP12..USA COLD SPEC; NCP12..CND MAKER OPTION |
88501-52020 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-52041 Evaporator Sub-Assy, Cooler, No.1COOLER, NO.1 [08.1999 - 08.2002] NCP12..USA COLD SPEC; NCP12..CND MAKER OPTION |
88501-52041 |
US $465.70 |
||
|
88501
|
88501
88501-52040
Evaporator Sub-Assy, Cooler, No.1
[08.1999 - 08.2002] NCP12..USA; NCP12..CND DEALER OPTION |
88501-52040 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-52041 Evaporator Sub-Assy, Cooler, No.1COOLER, NO.1 [08.1999 - 08.2002] NCP12..USA; NCP12..CND DEALER OPTION |
88501-52041 |
US $465.70 |
||
|
88501
|
88501
88501-52041 Evaporator Sub-Assy, Cooler, No.1COOLER, NO.1 [09.2002 - 03.2003] NCP12..USA |
88501-52041 |
US $465.70 |
||
|
88501
|
88501
88501-52080 Evaporator Sub-Assy, Cooler, No.1COOLER, NO.1 [03.2003 - 02.2006] NCP12 W(MANUAL AIR CONDITIONER) |
88501-52080 |
US $456.12 |
||
|
88515
|
88515
88515-52010 Valve, Cooler Expansion[08.1999 - 08.2002] NCP12 |
88515-52010 |
US $141.23 |
||
| replacement | |||||
|
88515
|
88515
88515-52040 Valve, Cooler Expansion[08.1999 - 08.2002] NCP12 |
88515-52040 |
from US $111.79 |
||
|
88515
|
88515
88515-52050 Valve, Cooler Expansion[12.2003 - 02.2006] NCP12 |
88515-52050 |
US $139.78 |
||
|
88539
|
88539
88539-52010
Hose, Cooler Unit Drain, No.1
[08.1999 - 08.2002] NCP12 |
88539-52010 |
— | ||
|
88548B
|
88548B
88508-52040
Case, Air Filter
[05.2004 - 02.2006] NCP12..USA PUERTORICO SPEC |
88508-52040 |
— | ||
|
88548B
|
88548B
88548-52010 Case, Air Filter[08.1999 - 08.2002] NCP12 |
88548-52010 |
from US $9.43 |
||
| replacement | |||||
|
88548B
|
88548B
88548520101 Holder Sub-Assy, Filter[08.1999 - 08.2002] NCP12 |
88548520101 |
US $12.29 |
||
|
88578A
|
88578A
88578-52020
Packing, Cooler Stabilizer Amplifier
[08.1999 - 08.2002] NCP12 |
88578-52020 |
— | ||
|
88578B
|
88578B
88578-52030
Packing, Cooling Unit, No.1
[08.1999 - 08.2002] NCP12 |
88578-52030 |
— | ||
|
88625
|
88625
88625-52020 Thermistor, Cooler, No.1[08.1999 - 08.2002] NCP12 |
88625-52020 |
US $15.97 |
||
|
88625
|
88625
88625-52100
Thermistor, Cooler, No.1
[03.2003 -] NCP12 W(MANUAL AIR CONDITIONER) |
88625-52100 |
— | ||
|
88648
|
88648
88648-52020
Wiring, Cooler, No.1
[08.1999 - 08.2002] NCP12 |
88648-52020 |
— | ||
|
88648N
|
88648N
88648-52010
Wiring, Cooler, No.2
[08.1999 - 08.2002] NCP12 |
88648-52010 |
— | ||
|
88648N
|
88648N
88648-52190
Wiring, Cooler, No.1
[05.2004 - 02.2006] NCP12 |
88648-52190 |
— | ||
|
88648P
|
88648P
88648-52200
Wiring, Cooler, No.1
[05.2004 - 11.2005] NCP12 |
88648-52200 |
— | ||
|
88650C
|
88650C
88650-52130
Amplifier Sub-Assy, Airconditioner
[08.1999 - 08.2002] NCP12 |
88650-52130 |
— | ||
|
88650E
|
88650E
88650-52040
Amplifier Assy, Air Conditioner, No.1
[08.1999 - 08.2002] NCP12 |
88650-52040 |
— | ||
|
88688A
|
88688A
88688-52270
Bracket, Cooler Stabilizer Amplifier
[05.2004 - 11.2005] NCP12 |
88688-52270 |
— | ||
|
88710A
|
88710A
88710-52010 Tube Assy, Air ConditionerAIRCONDITIONER [08.1999 - 08.2002] NCP12 |
88710-52010 |
from US $79.23 |
||
|
88790D
|
88790D
88790-52010 Thermistor Assy[08.1999 - 08.2002] NCP12 |
88790-52010 |
US $43.54 |
||
|
88891Z
|
88891Z
88891-20240
Cover, Cooler, No.1
[08.1999 - 08.2002] NCP12 |
88891-20240 |
— | ||
|
8846752030
|
8846752030
88467-52030
Grommet (For Cooler Unit Drain Hose)
|
88467-52030 |
— | ||
|
8889952030
|
8889952030
88899-52030
Cover, Evaporator
|
88899-52030 |
— | ||
|
8889952040
|
8889952040
88899-52040
Cover, Evaporator
|
88899-52040 |
— | ||
|
8889952080
|
8889952080
88899-52080
Cover, Evaporator
|
88899-52080 |
— | ||
|
9009900294
|
9009900294
90099-00294 New Genuine Part |
90099-00294 |
US $1.60 |
||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009904542
|
9009904542
90099-04542 Bolt(For Cooler Expansion Valve) |
90099-04542 |
from US $1.21 |
||
|
9011906299
|
9011906299
90119-06299 New Genuine Part |
90119-06299 |
US $1.31 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.28 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
