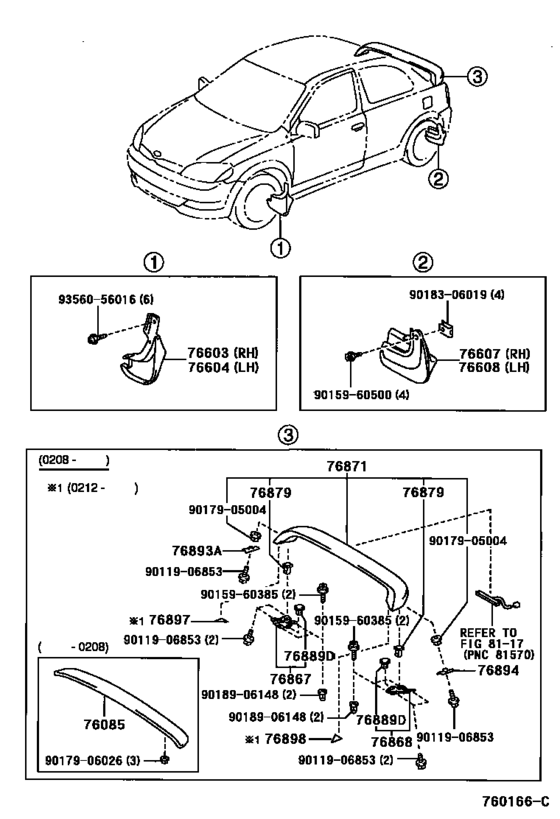

Mudguard & Spoiler ([08.1999 - ] (9908- )) Diagram Toyota ECHO
- Year
- 1999 - 2006
- Sales region
- U.S.A.
- Frame
- NCP12
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1999
- To
- 02.2006
- No.of Doors
- 2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76085
|
76085
76085-52040-A0 Spoiler Sub-Assy, Rear[08.1999 - 01.2001] NCP12 SUPER WHITE 2,040 |
76085-52040-A0 |
US $330.51 |
||
| replacement | |||||
|
76085
|
76085
76085-52901 Spoiler Sub-Assy, Rear[08.1999 - 01.2001] NCP12 SUPER WHITE 2,040 |
76085-52901 |
US $241.70 |
||
|
76085
|
76085
76085-52040-A1 Spoiler Sub-Assy, Rear[01.2001 - 08.2002] NCP12 WHITE,068 |
76085-52040-A1 |
US $330.51 |
||
| replacement | |||||
|
76085
|
76085
76085-52901 Spoiler Sub-Assy, Rear[01.2001 - 08.2002] NCP12 WHITE,068 |
76085-52901 |
US $241.70 |
||
|
76085
|
76085
76085-52040-B0 Spoiler Sub-Assy, RearREAR [08.1999 - 08.2002] NCP12 SILVER ME.,199 |
76085-52040-B0 |
US $330.51 |
||
| replacement | |||||
|
76085
|
76085
76085-52901 Spoiler Sub-Assy, Rear[08.1999 - 08.2002] NCP12 SILVER ME.,199 |
76085-52901 |
US $241.70 |
||
|
76085
|
76085
76085-52040-C0 Spoiler Sub-Assy, Rear[08.1999 - 08.2002] NCP12 BLACK MC.,209 |
76085-52040-C0 |
US $330.51 |
||
| replacement | |||||
|
76085
|
76085
76085-52901 Spoiler Sub-Assy, Rear[08.1999 - 08.2002] NCP12 BLACK MC.,209 |
76085-52901 |
US $241.70 |
||
|
76085
|
76085
76085-52040-D0 Spoiler Sub-Assy, Rear[08.1999 - 08.2002] NCP12 SUPER RED 5,3P0 |
76085-52040-D0 |
US $330.51 |
||
| replacement | |||||
|
76085
|
76085
76085-52901 Spoiler Sub-Assy, Rear[08.1999 - 08.2002] NCP12 SUPER RED 5,3P0 |
76085-52901 |
US $241.70 |
||
|
76603
|
76603
76621-52010 Mudguard Sub-Assy, Front Fender, Rh[08.1999 - 08.2002] NCP12 |
76621-52010 |
US $54 |
||
|
76604
|
76604
76622-52010 Mudguard Sub-Assy, Front Fender, Lh[08.1999 - 08.2002] NCP12 |
76622-52010 |
US $54 |
||
|
76607
|
76607
76625-52030 Mudguard Sub-Assy, Quarter Panel, Rear Rh[08.1999 - 08.2002] NCP12 |
76625-52030 |
from US $50.67 |
||
|
76607
|
76607
76625-52060
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.2002 -] NCP12 |
76625-52060 |
— | ||
|
76608
|
76608
76626-52030 Mudguard Sub-Assy, Quarter Panel, Rear Lh[08.1999 - 08.2002] NCP12 |
76626-52030 |
US $50.67 |
||
|
76608
|
76608
76626-52060 Mudguard Sub-Assy, Quarter Panel, Rear Lh[08.2002 -] NCP12 |
76626-52060 |
US $54 |
||
|
76867
|
76867
76867-52010 Retainer, Rear Spoiler Side, RhREAR SPOILER SIDE, RH [08.2002 -] NCP12 |
76867-52010 |
from US $12.23 |
||
|
76868
|
76868
76868-52010 Retainer, Rear Spoiler Side, LhREAR SPOILER SIDE, LH [08.2002 -] NCP12 |
76868-52010 |
from US $12.23 |
||
|
76871
|
76871
76871-52070-B0 Spoiler, RearREAR [08.2002 - 11.2005] NCP12 SILVER M.M.,1E7 |
76871-52070-B0 |
US $795.07 |
||
| replacement | |||||
|
76871
|
76871
76871-52908
Spoiler, Rear
[08.2002 - 11.2005] NCP12 SILVER M.M.,1E7 |
76871-52908 |
— | ||
|
76871
|
76871
76871-52070-B1
Spoiler, Rear
[08.2002 - 11.2005] NCP12 GRAY M.M.,1E3 |
76871-52070-B1 |
— | ||
| replacement | |||||
|
76871
|
76871
76871-52908
Spoiler, Rear
[08.2002 - 11.2005] NCP12 GRAY M.M.,1E3 |
76871-52908 |
— | ||
|
76871
|
76871
76871-52070-D0
Spoiler, Rear
[08.2002 - 11.2005] NCP12 RED M.M.,3P1 |
76871-52070-D0 |
— | ||
| replacement | |||||
|
76871
|
76871
76871-52908
Spoiler, Rear
[08.2002 - 11.2005] NCP12 RED M.M.,3P1 |
76871-52908 |
— | ||
|
76871
|
76871
76871-52070-J0
Spoiler, Rear
[08.2002 - 11.2005] NCP12 DK.BLUE M.M.,8P4 |
76871-52070-J0 |
— | ||
| replacement | |||||
|
76871
|
76871
76871-52908
Spoiler, Rear
[08.2002 - 11.2005] NCP12 DK.BLUE M.M.,8P4 |
76871-52908 |
— | ||
|
76879
|
76879
76879-12040 Clip, Rear Spoiler, No.1[08.2002 -] NCP12 |
76879-12040 |
from US $1.93 |
||
|
76889D
|
76889D
76889-52030 Clip, Rear Spoiler, No.2REAR SPOILER, NO.2 [08.2002 -] NCP12 |
76889-52030 |
US $3.20 |
||
|
76893A
|
76893A
76893-52030
Cover, Rear Spoiler, Rh
[08.2002 -] NCP12 |
76893-52030 |
— | ||
|
76894
|
76894
76894-52020
Cover, Rear Spoiler, Lh
[08.2002 -] NCP12 |
76894-52020 |
— | ||
|
76897
|
76897
76897-52020 Protector, Rear Spoiler, Side RhREAR SPOILER, SIDE RH [12.2002 -] NCP12 |
76897-52020 |
US $2.18 |
||
|
76898
|
76898
76898-52020 Protector, Rear Spoiler, Side LhREAR SPOILER, SIDE LH [12.2002 -] NCP12 |
76898-52020 |
US $2.18 |
||
|
9011906853
|
9011906853
90119-06853 BOLT WWASHER |
90119-06853 |
US $0.87 |
||
| replacement | |||||
|
9011906853
|
9011906853
90119-06543 BOLT |
90119-06543 |
US $1.12 |
||
|
9015960385
|
9015960385
90159-60385 SCREW |
90159-60385 |
US $1.51 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.80 |
||
|
9017905004
|
9017905004
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.86 |
||
|
9018906148
|
9018906148
90189-06148 GROMMET, SCREW |
90189-06148 |
from US $0.82 |
||
|
9356056016
|
9356056016
93560-56016 SCREW |
93560-56016 |
US $1.92 |
||
