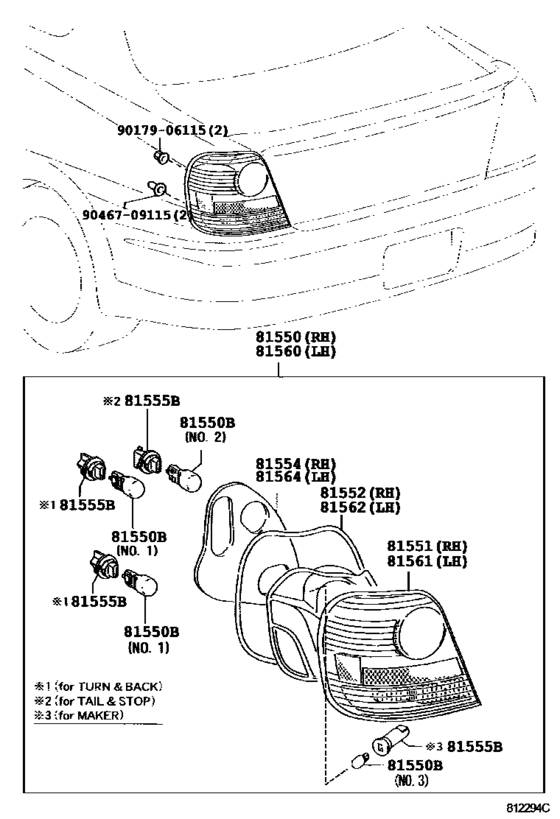

Rear Combination Lamp ([08.2002 - ] (0208- )) Diagram Toyota ECHO
- Year
- 1999 - 2006
- Sales region
- U.S.A.
- Frame
- NCP12
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1999
- To
- 02.2006
- No.of Doors
- 2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-52090 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1999 - 08.2002] NCP12 |
81550-52090 |
US $294.11 |
||
|
81550
|
81550
81550-52320 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.2002 -] NCP12 |
81550-52320 |
US $314.50 |
||
|
81550B
|
81550B
90981-11048
Bulb(For Rear Combination Lamp)
[06.2001 - 08.2002] NCP12 12V 21/5W,NO.3 |
90981-11048 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[06.2001 - 08.2002] NCP12 12V 21/5W,NO.3 |
90981-13044 |
from US $3.65 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[08.1999 - 08.2002] NCP12 12V 21W,NO.1 |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[08.1999 - 06.2001] NCP12 12V 21/5W,NO.3 |
90981-13044 |
from US $3.65 |
||
|
81550B
|
81550B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[08.1999 - 08.2002] NCP12 12V 21W,AMBER,NO.2 |
90981-15011 |
from US $4.60 |
||
|
81550B
|
81550B
99132-12050 Bulb (12V 5W)[08.2002 - 02.2006] NCP12 12V 5W,NO.3 |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81550B
|
81550B
90080-81053 Bulb(For Clearance Lamp)[08.2002 - 02.2006] NCP12 12V 5W,NO.3 |
90080-81053 |
US $2.75 |
||
|
81551
|
81551
81551-52090
Lens, Rear Combination Lamp, Rh
[08.1999 - 08.2002] NCP12 |
81551-52090 |
— | ||
|
81551
|
81551
81551-52320 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.2002 -] NCP12 |
81551-52320 |
US $90.27 |
||
|
81552
|
81552
81552-52070 Gasket, Rear Combination Lamp Lens, Rh[08.1999 - 08.2002] NCP12 |
81552-52070 |
US $15.58 |
||
| replacement | |||||
|
81552
|
81552
81552-52310 Gasket, Rear Combination Lamp Lens, Rh[08.1999 - 08.2002] NCP12 |
81552-52310 |
US $10.63 |
||
|
81552
|
81552
81552-52310 Gasket, Rear Combination Lamp Lens, Rh[08.2002 -] NCP12 |
81552-52310 |
US $10.63 |
||
|
81554
|
81554
81554-52070 Gasket, Rear Combination Lamp Body, Rh[08.1999 - 08.2002] NCP12 |
81554-52070 |
US $16.02 |
||
|
81554
|
81554
81554-52310 Gasket, Rear Combination Lamp Body, Rh[08.2002 -] NCP12 |
81554-52310 |
US $10.92 |
||
|
81555B
|
81555B
90075-60015 Socket Plug, No.1[08.1999 - 08.2002] NCP12 FOR BACK |
90075-60015 |
from US $6.40 |
||
|
81555B
|
81555B
90075-60017 Socket, Tail & Stop Lamp[08.1999 - 08.2002] NCP12 FOR TAIL & STOP |
90075-60017 |
from US $6.12 |
||
|
81555B
|
81555B
90075-60027 Socket, Rear Turn Signal Lamp[08.1999 - 08.2002] NCP12 FOR TURN |
90075-60027 |
from US $6.01 |
||
|
81555B
|
81555B
90075-60044 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2002 -] NCP12 FOR TURN & BACK |
90075-60044 |
from US $8.31 |
||
|
81555B
|
81555B
90075-99011 Socket And Wire, License Plate Lamp[08.2002 -] NCP12 FOR MARKER |
90075-99011 |
from US $1.77 |
||
|
81560
|
81560
81560-52080 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1999 - 08.2002] NCP12 |
81560-52080 |
US $294.11 |
||
|
81560
|
81560
81560-52300 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.2002 -] NCP12 |
81560-52300 |
US $314.50 |
||
|
81561
|
81561
81561-52080
Lens, Rear Combination Lamp, Lh
[08.1999 - 08.2002] NCP12 |
81561-52080 |
— | ||
|
81561
|
81561
81561-52300 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.2002 -] NCP12 |
81561-52300 |
US $90.27 |
||
|
81562
|
81562
81552-52070 Gasket, Rear Combination Lamp Lens, Rh[08.1999 - 08.2002] NCP12 |
81552-52070 |
US $15.58 |
||
| replacement | |||||
|
81562
|
81562
81552-52310 Gasket, Rear Combination Lamp Lens, Rh[08.1999 - 08.2002] NCP12 |
81552-52310 |
US $10.63 |
||
|
81562
|
81562
81552-52310 Gasket, Rear Combination Lamp Lens, Rh[08.2002 -] NCP12 |
81552-52310 |
US $10.63 |
||
|
81564
|
81564
81564-52060 Gasket, Rear Combination Lamp Body, Lh[08.1999 - 08.2002] NCP12 |
81564-52060 |
US $16.02 |
||
|
81564
|
81564
81564-52290 Gasket, Rear Combination Lamp Body, Lh[08.2002 -] NCP12 |
81564-52290 |
US $16.02 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9046709115
|
9046709115
90467-09115 CLIP |
90467-09115 |
US $2.56 |
||
