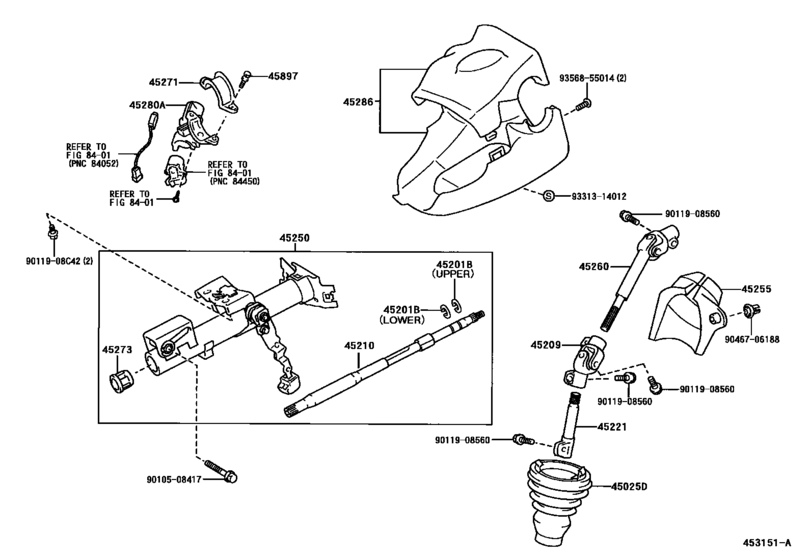

Steering Column & Shaft ([08.2002 - ] (0208- )) Diagram Toyota ECHO
- Year
- 1999 - 2006
- Sales region
- U.S.A.
- Frame
- NCP12
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1999
- To
- 02.2006
- No.of Doors
- 2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-52030
Cover Sub-Assy, Steering Column Hole, No.1
[08.1999 - 08.2002] NCP12 W(POWER STEERING) |
45025-52030 |
— | ||
|
45025D
|
45025D
45025-52040
Cover Sub-Assy, Steering Column Hole, No.1
[08.1999 - 08.2002] NCP12 W(MANUAL STEERING) |
45025-52040 |
— | ||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.1999 - 08.2002] NCP12 T=1.20,LOWER |
90520-17042 |
from US $0.86 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[08.1999 - 08.2002] NCP12 T=1.20,UPPER |
90520-17269 |
US $1.92 |
||
|
45209
|
45209
45209-52020 Yoke Sub-Assy, Steering Sliding[08.1999 - 08.2002] NCP12 |
45209-52020 |
US $100.64 |
||
|
45210
|
45210
45210-52010 Shaft Assy, Steering Main[08.1999 - 08.2002] NCP12 |
45210-52010 |
US $192.19 |
||
|
45221
|
45221
45297-52010 Shaft, Steering Intermediate[08.1999 - 08.2002] NCP12 W(POWER STEERING) |
45297-52010 |
US $99.01 |
||
|
45221
|
45221
45297-52020 Shaft, Steering Intermediate[08.1999 - 08.2002] NCP12 W(MANUAL STEERING) |
45297-52020 |
US $142.69 |
||
| replacement | |||||
|
45221
|
45221
45297-52070 Shaft, Steering Intermediate[08.1999 - 08.2002] NCP12 W(MANUAL STEERING) |
45297-52070 |
US $138.03 |
||
|
45250
|
45250
45250-52010 Column Assy, Steering[08.2002 -] NCP12 |
45250-52010 |
US $272.27 |
||
|
45255
|
45255
45255-52020 Plate, Steering Column Hole CoverSTEERING COLUMN HOLE COVER [08.1999 - 08.2002] NCP12 |
45255-52020 |
US $16.16 |
||
| replacement | |||||
|
45255
|
45255
45255-52060 Plate, Steering Column Hole CoverSTEERING COLUMN HOLE COVER [08.1999 - 08.2002] NCP12 |
45255-52060 |
US $15.29 |
||
|
45255
|
45255
45255-52060 Plate, Steering Column Hole CoverSTEERING COLUMN HOLE COVER [03.2003 -] NCP12 |
45255-52060 |
US $15.29 |
||
|
45260
|
45260
45260-52070 Shaft Assy, Steering Intermediate, No.2STEERING INTERMEDIATE, NO.2 [08.1999 - 08.2002] NCP12 |
45260-52070 |
US $198.02 |
||
|
45271
|
45271
45271-16020 Clamp, Steering Column, Upper[08.1999 - 08.2002] NCP12 |
45271-16020 |
US $8.32 |
||
|
45273
|
45273
45273-33030 Bush, Steering Main Shaft[08.1999 - 08.2002] NCP12 |
45273-33030 |
from US $8.91 |
||
|
45280A
|
45280A
45280-52020 Bracket Assy, Steering Column, Upper[08.1999 - 08.2002] NCP12..MTM |
45280-52020 |
US $144.14 |
||
|
45286
|
45286
45286-52901-B0 Cover, Steering ColumnSTEERING COLUMN [08.1999 - 08.2002] NCP12 MD.GRAY,TRIM1# |
45286-52901-B0 |
US $52.42 |
||
| replacement | |||||
|
45286
|
45286
45286-52900-B3 Cover, Steering Column[08.1999 - 08.2002] NCP12 MD.GRAY,TRIM1# |
45286-52900-B3 |
US $42.46 |
||
|
45286
|
45286
45286-52901-B1 Cover, Steering Column[08.1999 - 08.2002] NCP12 AMETHYST,TRIM9# |
45286-52901-B1 |
US $52.42 |
||
| replacement | |||||
|
45286
|
45286
45286-52900-B3 Cover, Steering Column[08.1999 - 08.2002] NCP12 AMETHYST,TRIM9# |
45286-52900-B3 |
US $42.46 |
||
|
45286
|
45286
45286-52901-B3 Cover, Steering Column[12.2002 - 02.2006] NCP12 DK.GRAY,TRIM1# |
45286-52901-B3 |
US $52.42 |
||
| replacement | |||||
|
45286
|
45286
45286-52900-B3 Cover, Steering Column[12.2002 - 02.2006] NCP12 DK.GRAY,TRIM1# |
45286-52900-B3 |
US $42.46 |
||
|
45286
|
45286
45286-52901-E0 Cover, Steering Column[08.2002 - 02.2006] NCP12 SANDAL WOOD,TRIM4# |
45286-52901-E0 |
US $52.42 |
||
| replacement | |||||
|
45286
|
45286
45286-52900-B3 Cover, Steering Column[08.2002 - 02.2006] NCP12 SANDAL WOOD,TRIM4# |
45286-52900-B3 |
US $42.46 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[08.1999 - 08.2002] NCP12 |
45897-12020 |
from US $2.89 |
||
|
9011908C42
|
9011908C42
90119-08C42 New Genuine Part |
90119-08C42 |
US $1.28 |
||
|
9010508417
|
9010508417
90105-08417 New Genuine Part |
90105-08417 |
US $1.46 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.56 |
||
|
9331314012
|
9331314012
93313-14012 SCREW |
93313-14012 |
US $0.96 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
