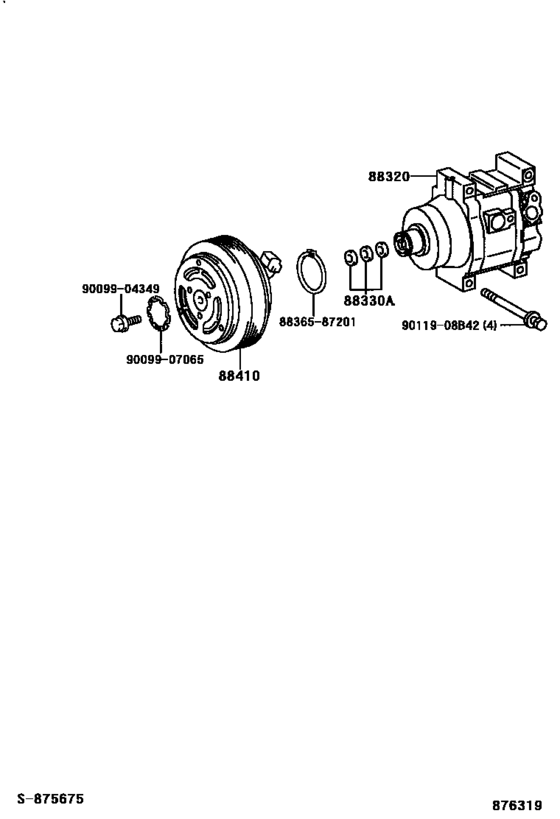

Heating & Air Conditioning - Compressor ([06.2003 - ] (0306- )) Diagram Toyota ECHO
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- NCP13
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.2003
- To
- 08.2005
- No.of Doors
- 3D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-52120
Compressor Assy, Cooler
[06.2003 - 08.2003] NCP13 |
88320-52120 |
— | ||
|
88320
|
88320
88320-52400
Compressor Assy, Cooler
[08.2003 - 08.2005] NCP13 |
88320-52400 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[06.2003 - 07.2003] NCP13 |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-52140 Clutch Assy, Magnet[06.2003 - 07.2003] NCP13 |
88410-52140 |
US $556.19 |
||
| replacement | |||||
|
88410
|
88410
88410-52141 Clutch Assy, Magnet[06.2003 - 07.2003] NCP13 |
88410-52141 |
US $556.19 |
||
|
88410
|
88410
88410-52230
Clutch Assy, Magnet
[08.2003 - 08.2005] NCP13 |
88410-52230 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
8836587201
|
8836587201
88365-87201 Ring, Snap |
88365-87201 |
from US $1.75 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
