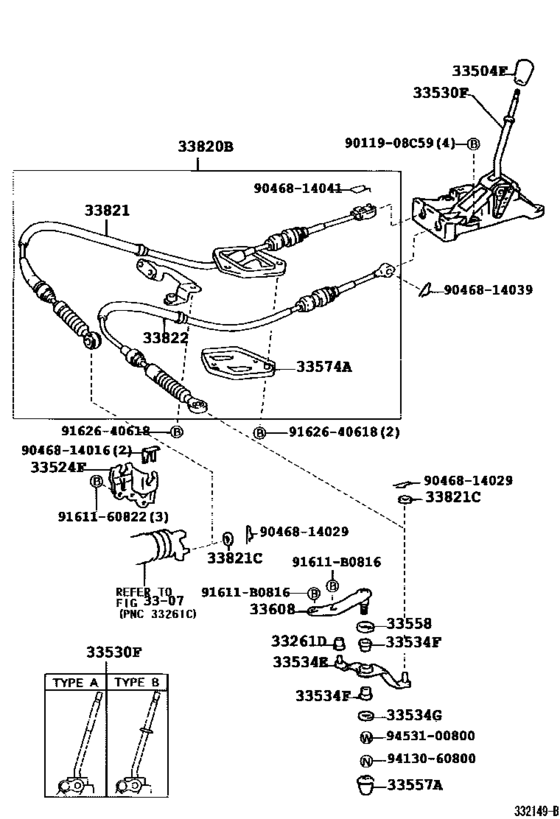

Shift Lever & Retainer ([06.2003 - ] (0306- )MTM) Diagram Toyota ECHO
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- NCP13
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 06.2003
- To
- 08.2005
- No.of Doors
- 5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33261D
|
33261D
33557-33010 Bush (For Shift & Select Lever)[06.2003 -] NCP13..MTM |
33557-33010 |
from US $7.20 |
||
|
33504F
|
33504F
33504-13010-B0 Knob Sub-Assy, Shift Lever[06.2003 - 08.2005] NCP13..MTM DK.GRAY,TRIM9# |
33504-13010-B0 |
US $77.93 |
||
|
33504F
|
33504F
33504-52050-C0 Knob Sub-Assy, Shift Lever[06.2003 - 10.2003] NCP13..5D..MTM SILVER PLATED KNOB,BLACK,TRIM9# |
33504-52050-C0 |
US $109.20 |
||
| replacement | |||||
|
33504F
|
33504F
33504-52051-C0 Knob Sub-Assy, Shift Lever[06.2003 - 10.2003] NCP13..5D..MTM SILVER PLATED KNOB,BLACK,TRIM9# |
33504-52051-C0 |
US $108.33 |
||
|
33504F
|
33504F
33504-52051-C0 Knob Sub-Assy, Shift Lever[10.2003 - 08.2005] NCP13..5D..MTM CANADA SPEC,BLACK,TRIM9# |
33504-52051-C0 |
US $108.33 |
||
|
33524F
|
33524F
33524-52010 Bracket, Control Lever Housing Support (For Floor Shift)[06.2003 -] NCP13..MTM |
33524-52010 |
US $21.26 |
||
|
33530F
|
33530F
33530-52010 Lever Assy, Shift (For Floor Shift)[06.2003 -] NCP13..MTM TYPE A:REFER TO ILLUSTRATION |
33530-52010 |
US $82.12 |
||
|
33530F
|
33530F
33530-52080
Lever Assy, Shift (For Floor Shift)
[06.2003 -] NCP13..5D..MTM TYPE B:REFER TO ILLUSTRATION |
33530-52080 |
— | ||
|
33534E
|
33534E
33534-52010 Crank, Selecting Bell, No.2[06.2003 -] NCP13..MTM |
33534-52010 |
US $44.55 |
||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[06.2003 -] NCP13..MTM |
90386-12022 |
from US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[06.2003 -] NCP13..MTM |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[06.2003 -] NCP13..MTM |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[06.2003 -] NCP13..MTM |
33558-10030 |
US $3.68 |
||
|
33574A
|
33574A
33574-52010 Retainer, Shift Cable Grommet, No.1[06.2003 -] NCP13 |
33574-52010 |
US $7.72 |
||
|
33608
|
33608
33608-52010 Support Sub-Assy, Selecting Bellcrank[06.2003 -] NCP13..MTM |
33608-52010 |
US $13.54 |
||
|
33820B
|
33820B
33820-52022 Cable Assy, Transmission Control[06.2003 -] NCP13..MTM |
33820-52022 |
US $278.10 |
||
|
33821
|
33821
33821-52022 Cable Transmission Control Shift (For Floor Shift)[06.2003 -] NCP13..MTM |
33821-52022 |
US $197.43 |
||
|
33821C
|
33821C
90201-08267 Washer, Plate (For Transfer Control Cable)[06.2003 -] NCP13..MTM OD=28 |
90201-08267 |
from US $0.92 |
||
|
33822
|
33822
33822-52021 Cable Transmission Control Select (For Floor Shift)[06.2003 -] NCP13..MTM |
33822-52021 |
US $183.46 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.28 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814029
|
9046814029
90468-14029 CLIP |
90468-14029 |
US $0.70 |
||
|
9046814039
|
9046814039
90468-14039 CLIP |
90468-14039 |
US $1.28 |
||
|
9046814041
|
9046814041
90468-14041 New Genuine Part |
90468-14041 |
US $0.61 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.44 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $1.93 |
||
