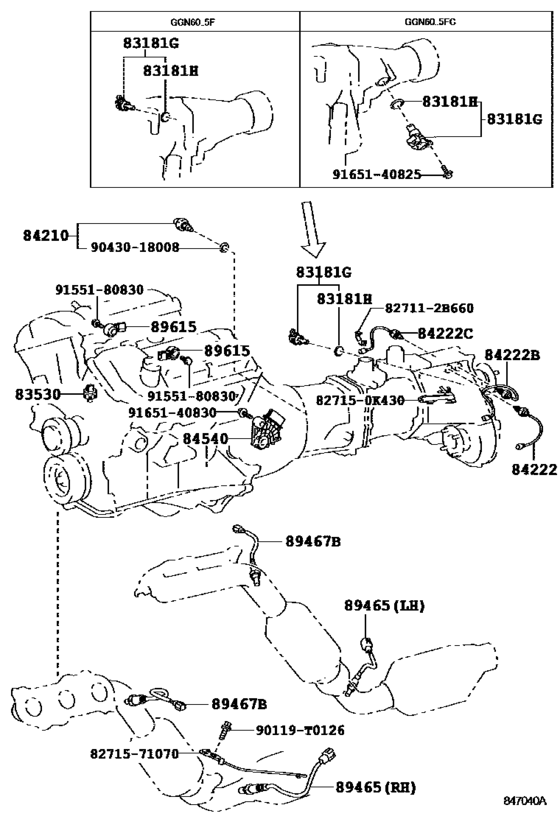

Switch & Relay & Computer ([07.2005 - ] ENGINE & TRANSMISSION (0507- )GGN50,60) Diagram Toyota FORTUNER
- Year
- 2007 - 2011
- Sales region
- General
- Frame
- GGN50
- grade
- SR
- body
- THSUV
- ENGINE
- 1GRFE
- DESTINATION
- GEN
- From
- 08.2007
- To
- 07.2011
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12020 Sensor, Speedometer[01.2005 - 12.2008] TGN51;KUN60..SUVW..5F;GGN50,KUN50,61,LAN50,TGN61..5F,5FC;GGN60,KUN51..(SUVW,THSUV) ..(4FC,5F) |
83181-12020 |
from US $169.48 |
||
|
83181H
|
83181H
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[01.2005 - 12.2008] TGN51;KUN60..SUVW..5F;GGN50,KUN50,61,LAN50,TGN61..5F,5FC;GGN60,KUN51..(SUVW,THSUV) ..(4FC,5F) |
96711-24030 |
from US $2.32 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[01.2005 - 03.2009] TGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F)..SR;GGN60,TGN61..(5F,5FC)..(AN COM,LA);GGN50,TGN51..ANCOM,GCC,GEN,IDN,MA,SA,TH |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.2005 - 03.2009] TGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F)..SR;GGN60,TGN61..(5F,5FC)..(AN COM,LA);GGN50,TGN51..ANCOM,GCC,GEN,IDN,MA,SA,TH |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[01.2005 - 03.2009] TGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F)..SR;GGN60,TGN61..(5F,5FC)..(AN COM,LA);GGN50,TGN51..ANCOM,GCC,GEN,IDN,MA,SA,TH |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2008 - 04.2012] TGN51,61;GGN60..5FC;GGN50..LHD;GGN50..5FC..SA YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-04010 Switch Assy, Back-Up Lamp[08.2008 - 04.2012] KUN51,6#..5F;GGN50..LHD..5F TYPE D:REFER 33-01 |
84210-04010 |
from US $11.80 |
||
|
84210
|
84210
84210-0K010 Switch Assy, Back-Up LampBACK-UP LAMP [01.2009 - 08.2009] GGN50..(SUVW,THSUV)..5F..(GCC,GEN) TYPE C:REFER 33-01 |
84210-0K010 |
US $37.17 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[04.2005 - 10.2008] KUN60,LAN50..SUVW..5F;GGN50,KUN51..(SUVW,THSUV)..5F..(GCC,GEN) |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[04.2005 - 10.2008] KUN60,LAN50..SUVW..5F;GGN50,KUN51..(SUVW,THSUV)..5F..(GCC,GEN) |
84210-52050 |
from US $20.67 |
||
|
84222
|
84222
84222-35080 Switch, Transfer Indicator, No.1[01.2005 - 03.2009] KUN51..SUVW,THSUV;GGN50,KUN50..5F,5FC;TGN51..4FC..(GCC,IDN,MA,TH) |
84222-35080 |
from US $55.79 |
||
|
84222C
|
84222C
84222-60100 Switch, Transfer Indicator, No.3[01.2005 - 03.2009] KUN51..SUVW,THSUV;TGN51..GCC,IDN,MA,SA,TH;GGN50,KUN50,LAN50..5F,5FC |
84222-60100 |
from US $42.98 |
||
|
89465
|
89465
89465-0K040
Sensor, Oxygen
[07.2005 - 03.2009] GGN50,60..5F LH |
89465-0K040 |
— | ||
|
89465
|
89465
89465-0K060
Sensor, Oxygen
[07.2005 - 03.2009] GGN50,60..5F RH |
89465-0K060 |
— | ||
|
89467B
|
89467B
89467-35110 Sensor, Air Fuel Ratio[08.2008 - 04.2012] GGN60..5FC;GGN50..LHD;GGN50..5FC..SA |
89467-35110 |
from US $146.52 |
||
|
89467B
|
89467B
89467-71020 Sensor, Air Fuel Ratio[07.2005 - 03.2009] GGN50;GGN60..5F;GGN60..ANCOM |
89467-71020 |
from US $224.64 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[07.2005 - 12.2008] GGN50;GGN60..5F;GGN60..ANCOM |
89615-20090 |
from US $36.02 |
||
|
90119T0126
|
90119T0126
90119-T0126
BOLT WWASHER
|
90119-T0126 |
— | ||
|
827112B660
|
827112B660
82711-2B660 Clamp, Wiring Harness |
82711-2B660 |
US $3.04 |
||
|
827150K430
|
827150K430
82715-0K430
Bracket,wiring Harness Clamp
|
82715-0K430 |
— | ||
|
8271571070
|
8271571070
82715-71070
Bracket,wiring Harness Clamp
|
82715-71070 |
— | ||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.88 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
