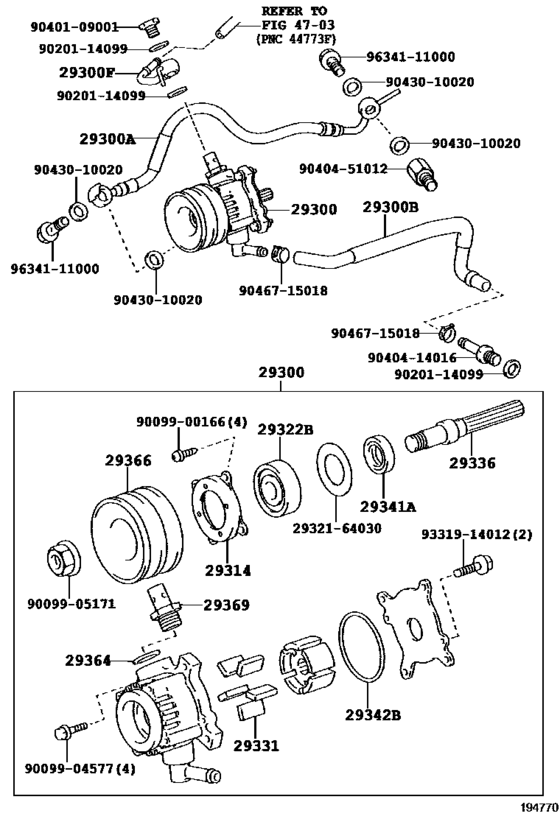

Vacuum Pump ([03.2016 - ] (1603- )5LE) Diagram Toyota FORTUNER
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- LAN155
- body
- SASUV
- ENGINE
- 5LE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- From
- 03.2016
- Gear Shift Type
- 5F
- Model Mark
- S
- Driver's Position
- LHD
- Fuel Induction
- DEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-54180 Pump Assy, Vacuum[03.2016 -] 5LE..LAN155 |
29300-54180 |
from US $398.36 |
||
|
29300A
|
29300A
90923-02118 Hose, Vacuum Pump Oil Inlet[03.2016 -] 5LE..LAN155 |
90923-02118 |
from US $89.78 |
||
|
29300B
|
29300B
29611-54100
Hose, Vacuum Pump Oil Outlet
[03.2016 -] 5LE..LAN155 |
29611-54100 |
— | ||
|
29300F
|
29300F
90405-09180 UnionVACUUM HOSE(FOR VACUUM PUMP) [03.2016 -] 5LE..LAN155 |
90405-09180 |
US $4.80 |
||
|
29314
|
29314
29314-64030
Ring, Stop
[03.2016 -] 5LE..LAN155 |
29314-64030 |
— | ||
|
29322B
|
29322B
90099-10227 Bearing(For Alternator Drive End Frame)VACUUM PUMP [03.2016 -] 5LE..LAN155 |
90099-10227 |
US $15.25 |
||
|
29331
|
29331
29331-54130 Blade, Vacuum Pump, A[03.2016 -] 5LE..LAN155 |
29331-54130 |
US $5.07 |
||
|
29336
|
29336
29336-64031
Shaft, Vacuum Pump
[03.2016 -] 5LE..LAN155 |
29336-64031 |
— | ||
|
29341A
|
29341A
29341-64030 Seal, Vacuum Pump Oil[03.2016 -] 5LE..LAN155 |
29341-64030 |
from US $7.16 |
||
|
29342B
|
29342B
29342-64030 Packing, Vacuum Pump[03.2016 -] 5LE..LAN155 |
29342-64030 |
US $3.32 |
||
|
29364
|
29364
29364-66010 Washer, Vacuum Pump[12.2015 -] 1KDFTV..KUN156..LHD..H;1KDFTV,5LE..KUN156,LAN155..L,M,S |
29364-66010 |
US $2.88 |
||
|
29366
|
29366
29366-54110
Pulley, Vacuum Pump
[03.2016 -] 5LE..LAN155 |
29366-54110 |
— | ||
|
29369
|
29369
29369-64030 Valve Sub-Assy, Check[12.2015 -] 1KDFTV..KUN156..LHD..H;1KDFTV,5LE..KUN156,LAN155..L,M,S |
29369-64030 |
US $23.76 |
||
|
2932164030
|
2932164030
29321-64030 Ring, Oil Seal Stop, Vacuum Pump |
29321-64030 |
US $1.46 |
||
|
9009900166
|
9009900166
90099-00166
New Genuine Part
|
90099-00166 |
— | ||
|
9009904577
|
9009904577
90099-04577
New Genuine Part
|
90099-04577 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.56 |
||
|
9040109001
|
9040109001
90401-09001 Bolt, Union(For Vacuum Pump Union) |
90401-09001 |
US $2.48 |
||
| replacement | |||||
|
9040109001
|
9040109001
90401-09003 Bolt, Union(For Vacuum Pump Union) |
90401-09003 |
from US $2.56 |
||
|
9040414016
|
9040414016
90404-14016 New Genuine Part |
90404-14016 |
US $3.79 |
||
|
9040451012
|
9040451012
90404-51012 UNION VACCUM HOSE |
90404-51012 |
US $2.62 |
||
|
9043010020
|
9043010020
90430-10020 GASKETROUND TYPE |
90430-10020 |
US $2.08 |
||
|
9046715018
|
9046715018
90467-15018 Clamp Or Crip, Hose |
90467-15018 |
US $4 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9634111000
|
9634111000
96341-11000 Bolt, Union(For Turbo Oil Inlet Pipe) |
96341-11000 |
from US $2.56 |
||
