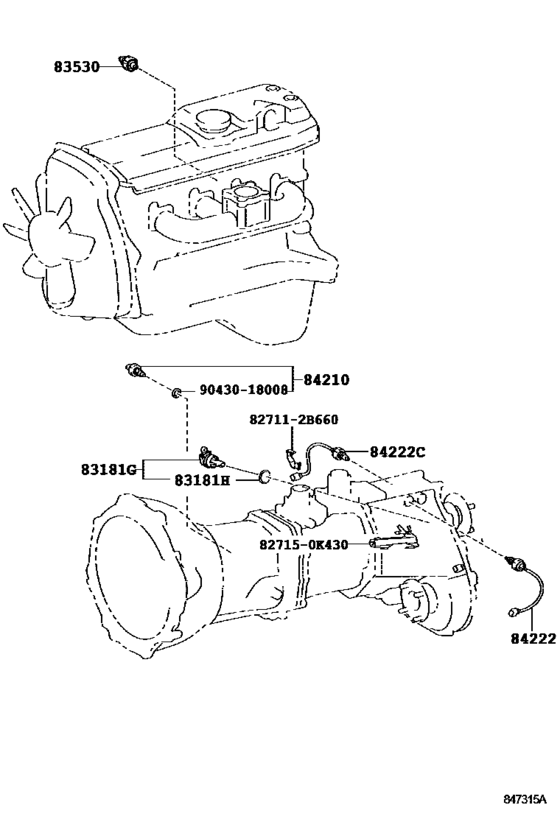

Switch & Relay & Computer ([05.2006 - ] ENGINE & TRANSMISSION (0605- )LAN50) Diagram Toyota FORTUNER
- Year
- 2006 - 2011
- Sales region
- General
- Frame
- LAN50
- grade
- SR
- body
- SUVW
- ENGINE
- 5LE
- DESTINATION
- SA
- From
- 05.2006
- To
- 08.2011
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
- Fuel Induction
- DEFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12020 Sensor, Speedometer[01.2005 - 12.2008] TGN51;KUN60..SUVW..5F;GGN50,KUN50,61,LAN50,TGN61..5F,5FC;GGN60,KUN51..(SUVW,THSUV) ..(4FC,5F) |
83181-12020 |
from US $169.48 |
||
|
83181H
|
83181H
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[01.2005 - 12.2008] TGN51;KUN60..SUVW..5F;GGN50,KUN50,61,LAN50,TGN61..5F,5FC;GGN60,KUN51..(SUVW,THSUV) ..(4FC,5F) |
96711-24030 |
from US $2.32 |
||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[05.2006 - 10.2008] LAN50 |
83530-60030 |
from US $26.54 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[04.2005 - 10.2008] KUN60,LAN50..SUVW..5F;GGN50,KUN51..(SUVW,THSUV)..5F..(GCC,GEN) |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[04.2005 - 10.2008] KUN60,LAN50..SUVW..5F;GGN50,KUN51..(SUVW,THSUV)..5F..(GCC,GEN) |
84210-52050 |
from US $20.67 |
||
|
84222
|
84222
84222-35080 Switch, Transfer Indicator, No.1[05.2006 - 10.2008] LAN50,TGN51..SA;TGN51..IDSUV..5F DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
84222-35080 |
from US $55.38 |
||
|
84222C
|
84222C
84222-60100 Switch, Transfer Indicator, No.3[01.2005 - 03.2009] KUN51..SUVW,THSUV;TGN51..GCC,IDN,MA,SA,TH;GGN50,KUN50,LAN50..5F,5FC |
84222-60100 |
from US $42.98 |
||
|
827112B660
|
827112B660
82711-2B660 Clamp, Wiring Harness |
82711-2B660 |
US $3.04 |
||
|
827150K430
|
827150K430
82715-0K430
Bracket,wiring Harness Clamp
|
82715-0K430 |
— | ||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
