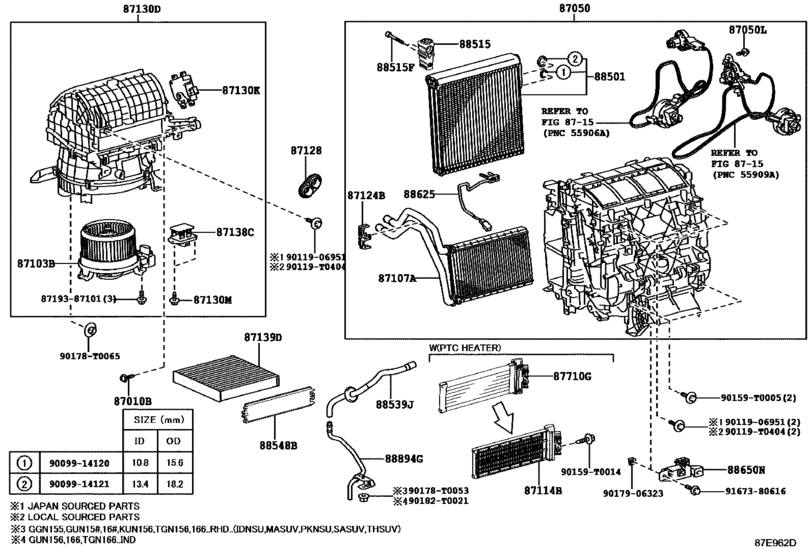

Heating & Air Conditioning - Cooler Unit ([07.2015 - ] FRONT MANUAL AIR CONDITIONER (1507- )RHD) Diagram Toyota FORTUNER
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- TGN156
- body
- IDNSU
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 01.2016
- Gear Shift Type
- 6FC
- Model Mark
- S
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87010B
|
87010B
90099-00968 Screw(For Air Conditioner Unit)[01.2016 -] KUN156..LHD..H;GUN156..IDNSU..6FC;KUN156..IDNSU..(L,M);GUN156,166..(IDNSU,INDSU).. 6F;GGN155,165,GUN155,165,TGN156,166..IDNSU,INDSU,MASUV; TGN166..L..GEN;GGN155,TGN156..LHD..IDNSU..(GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL |
90099-00968 |
US $0.88 |
||
|
87050
|
87050
87050-0KE70
Radiator Assy, Air Conditioner
[01.2016 -] TGN166..6FC..GEN;KUN156,TGN156..RHD..(M,S)..GEN |
87050-0KE70 |
— | ||
|
87050L
|
87050L
90099-00968 Screw(For Air Conditioner Unit)[01.2016 -] KUN156..LHD..H;GUN156..IDNSU..6FC;KUN156..IDNSU..(L,M);GUN156,166..(IDNSU,INDSU).. 6F;GGN155,165,GUN155,165,TGN156,166..IDNSU,INDSU,MASUV; TGN166..L..GEN;GGN155,TGN156..LHD..IDNSU..(GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL |
90099-00968 |
US $0.88 |
||
|
87103B
|
87103B
87103-0K430
Motor Sub-Assy, Blower W/fan
[01.2016 -] GUN155,165..IDN;TGN166..RHD..IDNSU;KUN156,TGN156..RHD..(M,S)..GEN |
87103-0K430 |
— | ||
|
87107A
|
87107A
87107-0K130 Unit Sub-Assy, Heater Radiator[01.2016 -] TGN166..IDNSU..(GCC,GEN,LA,VN);GUN165,KUN156..IDNSU..(L,M)..(GEN,LA,PH);GUN165,KUN 156..LHD..IDNSU..(H,L,S)..(GCC,GEN,VN);GGN155,165,GUN15#,TGN156..IDNSU..(GCC,GEN,L A,PH,VN); TGN166..L..GEN;GGN155,TGN156..LHD..IDNSU..(GEN,LA) FRONT AIR CONDIT |
87107-0K130 |
US $225.30 |
||
|
87114B
|
87114B
87114-0K060
Cover, Heater
[01.2016 -] KUN156..LHD..H;GUN156..IDNSU..(LA,PH);TGN156,166..IDNSU..L..LA;GUN155,165..IDNSU.. (GCC,IDN,PH);GUN165,KUN156..IDNSU..(L,M)..(GEN,LA,VN);GGN155,165,TGN156,166..IDNSU ..(GCC,GEN,IDN,PH,VN) |
87114-0K060 |
— | ||
|
87124B
|
87124B
87124-06140
Clamp, Heater
[07.2015 -] KUN156..LHD..H;GGN155,165,GUN15#,166..EPTSU,IDNSU,INDSU,THSUV;GUN165,KUN156..(IDNS U,THSUV)..(L,M)..(GEN,LA,PH,TH);TGN166..(EPTSU,IDNSU,INDSU,THSUV)..(EPT,GCC,GEN,ID N,IND,LA,TH,VN);GUN165,TGN156..(EPTSU,IDNSU,MASUV,PKNSU,THSUV)..(EPT,GCC,GEN, |
87124-06140 |
— | ||
|
87128
|
87128
87128-0K150 Grommet, Heater[01.2016 -] KUN156..LHD..H;GGN155,165,GUN15#,TGN156..IDNSU;GUN165,KUN156..IDNSU..(L,M)..(GEN,L A,PH);GUN165,TGN166..IDNSU..(GCC,GEN,IDN,LA,VN); TGN166..L..GEN;GGN155,TGN156..LHD..IDNSU..(GEN,LA) FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL) |
87128-0K150 |
US $5.50 |
||
|
87130D
|
87130D
87130-0K690
Blower Assy
[01.2016 -] GUN155,165..IDN;TGN166..RHD..IDNSU;KUN156,TGN156..RHD..(M,S)..GEN |
87130-0K690 |
— | ||
|
87130K
|
87130K
87106-0K250
Damper Servo Sub-Assy, Blower, No.1
[07.2015 -] GUN165..M..TH;GUN156,TGN166..RHD..(H,M);GGN155,GUN155,166,TGN156..RHD..(H,M,S);GUN 156,165,KUN156..RHD..(IDNSU,SASUV)..(M,S) |
87106-0K250 |
— | ||
|
87139D
|
87139D
87139-0K040
Filter, Clean Air
[01.2016 -] KUN156..LHD..H;KUN156..IDNSU..(L,M);GGN155,165,GUN15#,165,TGN156,166..IDNSU..(GCC, GEN,LA,VN) POLLEN FILTER |
87139-0K040 |
— | ||
|
87139D
|
87139D
87139-58010 Filter, Clean Air (Charcoal)[07.2015 -] KUN156..L,M,S;TGN166..H,L,M;GGN155,165,GUN15#,16#,LAN155,TGN156,168;KUN156,TGN166. .LHD..(AGTSU,IDNSU)..(H,S) DEODORANT FILTER |
87139-58010 |
from US $60.80 |
||
| replacement | |||||
|
87139D
|
87139D
87139-YZZ49
Filter, Cabin (Charcoal)
[07.2015 -] KUN156..L,M,S;TGN166..H,L,M;GGN155,165,GUN15#,16#,LAN155,TGN156,168;KUN156,TGN166. .LHD..(AGTSU,IDNSU)..(H,S) DEODORANT FILTER |
87139-YZZ49 |
— | ||
|
88501
|
88501
88501-0K460
Evaporator Sub-Assy, Cooler, No.1
[01.2016 -] GUN155,165..IDN;TGN166..RHD..IDNSU;KUN156,TGN156..RHD..(M,S)..GEN |
88501-0K460 |
— | ||
|
88515
|
88515
88515-0K580 Valve, Cooler Expansion[07.2015 -] GUN156..6F..IND;TGN166..(H,L,M)..(GEN,IDN,IND,LA,SA,TH);KUN156,TGN166..LHD..(AGTSU ,IDNSU)..(H,S);GUN156,TGN156..ARL,BZAGT,GEN,LA,MA,PH,PKN,SA,VN;GGN155,GUN155,16#,K UN156,LAN155,TGN168..(L,M,S)..(BZAGT,GEN,IDN,IND,LA,MA,PH,SA,TH,VN) |
88515-0K580 |
from US $78.31 |
||
|
88515F
|
88515F
90099-04542 Bolt(For Cooler Expansion Valve)[07.2015 -] KUN156..LHD..H;GUN156..6F..IND;GUN156,166,KUN156..(IDNSU,INDSU,THSUV)..(L,M,S);GGN 155,165,GUN155,165,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,THSUV |
90099-04542 |
from US $1.92 |
||
|
88539J
|
88539J
88539-0K340
Hose, Drain Cooler
[01.2016 -] GUN155,165..IDN;TGN166..RHD..IDNSU;KUN156,TGN156..RHD..(M,S)..GEN |
88539-0K340 |
— | ||
|
88548B
|
88548B
88548-0K090
Case, Air Filter
[01.2016 -] KUN156..LHD..H;GUN156..IDNSU..(LA,PH);TGN156,166..IDNSU..L..LA;GUN155,165..IDNSU.. (GCC,IDN,PH);GUN165,KUN156..IDNSU..(L,M)..(GEN,LA,VN);GGN155,165,TGN156,166..IDNSU ..(GCC,GEN,IDN,PH,VN); TGN166..L..GEN;GGN155,TGN156..LHD..IDNSU..(GEN,LA) FRO |
88548-0K090 |
— | ||
|
88625
|
88625
88620-0K010 Thermistor, Cooler, No.1[07.2015 -] TGN166..H,L,M;GUN156..6F..IND;GUN166,KUN156..L,M,S;GUN156..ARL,BZAGT,LA,PH,SA;GGN1 55,165,GUN155,165,LAN155,TGN156,168;KUN156,TGN166..LHD..(AGTSU,IDNSU)..(H,S) |
88620-0K010 |
US $25.78 |
||
|
88650N
|
88650N
88650-0K440
Amplifier Assy, Air Conditioner
[07.2015 -] KUN156..LHD..IDNSU..(H,M);GGN155,GUN155,166..EPT,GEN,IDN,SA,TH;TGN156,166..6FC..(G EN,IDN,MA,PKN,TH,VN);GUN156,165..(IDNSU,THSUV)..M..(ARL,LA,PH,TH);GUN156,165,KUN15 6..RHD..(IDNSU,SASUV)..(M,S) |
88650-0K440 |
— | ||
|
88894G
|
88894G
88894-0K050
Connector, Drain Hose
[01.2016 -] GUN155,165..IDN;TGN166..RHD..IDNSU;KUN156,TGN156..RHD..(M,S)..GEN |
88894-0K050 |
— | ||
|
90119T0404
|
90119T0404
90119-T0404
New Genuine Part
|
90119-T0404 |
— | ||
|
90159T0005
|
90159T0005
90159-T0005 New Genuine Part |
90159-T0005 |
US $0.87 |
||
|
90159T0014
|
90159T0014
90159-T0014
SCREW WWASHER TAPP
|
90159-T0014 |
— | ||
|
90178T0053
|
90178T0053
90178-T0053
New Genuine Part
|
90178-T0053 |
— | ||
|
90178T0065
|
90178T0065
90178-T0065
New Genuine Part
|
90178-T0065 |
— | ||
|
90182T0021
|
90182T0021
90182-T0021
New Genuine Part
|
90182-T0021 |
— | ||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.13 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.77 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.28 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.76 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
