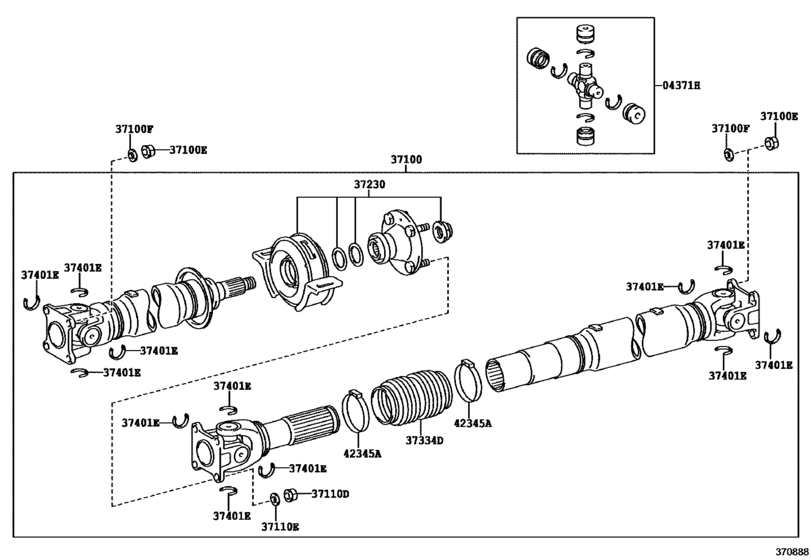

Propeller Shaft & Universal Joint ([01.2016 - ] REAR (1601- )GUN155,KUN156,TGN156..IDNSU..5F,5FC,6 FC) Diagram Toyota FORTUNER
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- TGN156
- body
- IDNSU
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 01.2016
- Gear Shift Type
- 6FC
- Model Mark
- S
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04371H
|
04371H
04371-0K110 Spider Kit, Universal Joint(For Propeller Shaft)[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,TGN156..EPTSU,IDNSU,MASUV,PKNSU,TH SUV;GUN165,TGN166..(EPTSU,INDSU,THSUV)..(5F,6FC) |
04371-0K110 |
from US $53.24 |
||
|
37100
|
37100
37100-0KP20
Shaft Assy, Propeller W/center Bearing
[01.2016 -] TGN156..IDNSU..6FC |
37100-0KP20 |
— | ||
|
37100E
|
37100E
90178-T0024 Nut, No.1 (For Propeller Shaft & Differential Setting)NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) [07.2015 -] KUN156..L,M,S;KUN156..LHD..H;GGN155,GUN15#,LAN155,TGN156 |
90178-T0024 |
US $1.09 |
||
|
37100F
|
37100F
90201-T0003 Washer, No.1 (For Propeller Shaft & Differential Setting)NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) [07.2015 -] KUN156..L,M,S;KUN156..LHD..H;GGN155,GUN15#,LAN155,TGN156 |
90201-T0003 |
US $2.57 |
||
| replacement | |||||
|
37100F
|
37100F
90201-11013 Washer, No.1 (For Propeller Shaft & Differential Setting)[07.2015 -] KUN156..L,M,S;KUN156..LHD..H;GGN155,GUN15#,LAN155,TGN156 |
90201-11013 |
from US $0.72 |
||
|
37110D
|
37110D
90178-T0024 Nut, No.1 (For Propeller Shaft & Differential Setting)NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) [01.2016 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..IDNSU..(5F,6FC) |
90178-T0024 |
US $1.09 |
||
|
37110E
|
37110E
90201-T0003 Washer, No.1 (For Propeller Shaft & Differential Setting)NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) [01.2016 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..IDNSU..(5F,6FC) |
90201-T0003 |
US $2.57 |
||
| replacement | |||||
|
37110E
|
37110E
90201-11013 Washer, No.1 (For Propeller Shaft & Differential Setting)[01.2016 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..IDNSU..(5F,6FC) |
90201-11013 |
from US $0.72 |
||
|
37230
|
37230
37230-09020 Bearing Assy, Center Support, No.1[01.2016 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,TGN156..EPTSU,IDNSU,MASUV,PKNSU,TH SUV |
37230-09020 |
US $147.11 |
||
|
37334D
|
37334D
37334-0K020 Boot, Rear Propeller Shaft[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..(L,M);GGN155,GUN15#,TGN156..EPTSU,IDNSU,INDSU,MASUV, PKNSU,THSUV |
37334-0K020 |
from US $17.94 |
||
|
37401E
|
37401E
90520-T0007
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.19,MARK F |
90520-T0007 |
— | ||
|
37401E
|
37401E
90520-T0008
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.21,MARK G |
90520-T0008 |
— | ||
|
37401E
|
37401E
90520-T0009
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.23,MARK H |
90520-T0009 |
— | ||
|
37401E
|
37401E
90520-T0010
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.25,MARK J |
90520-T0010 |
— | ||
|
37401E
|
37401E
90520-T0011 Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) [07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.27,MARK K |
90520-T0011 |
US $1.15 |
||
|
37401E
|
37401E
90520-T0012
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.29,MARK 1 |
90520-T0012 |
— | ||
|
37401E
|
37401E
90520-T0013
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.31,MARK 2 |
90520-T0013 |
— | ||
|
37401E
|
37401E
90520-T0014
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.33,MARK 3 |
90520-T0014 |
— | ||
|
37401E
|
37401E
90520-T0015
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.35,MARK 4 |
90520-T0015 |
— | ||
|
37401E
|
37401E
90520-T0016 Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) [07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.37,MARK 5 |
90520-T0016 |
US $1.15 |
||
|
37401E
|
37401E
90520-T0017
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.39,MARK 6 |
90520-T0017 |
— | ||
|
37401E
|
37401E
90520-T0018
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.41,MARK 7 |
90520-T0018 |
— | ||
|
37401E
|
37401E
90520-T0019
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.43,MARK 8 |
90520-T0019 |
— | ||
|
37401E
|
37401E
90520-T0020
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.45,MARK N |
90520-T0020 |
— | ||
|
37401E
|
37401E
90520-T0021
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.47,MARK 10 |
90520-T0021 |
— | ||
|
37401E
|
37401E
90520-T0022
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.49,MARK A |
90520-T0022 |
— | ||
|
37401E
|
37401E
90520-T0023
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.51,MARK B |
90520-T0023 |
— | ||
|
37401E
|
37401E
90520-T0024
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.53,MARK C |
90520-T0024 |
— | ||
|
37401E
|
37401E
90520-T0025
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.55,MARK D |
90520-T0025 |
— | ||
|
37401E
|
37401E
90520-T0026
Ring, Snap (For Front Propeller Shaft Joint Spider Bearing)
[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..5FC..(L,M);GUN155,165,TGN156,166..(EPTSU,IDNSU,INDSU ,MASUV,PKNSU,THSUV)..(5F,6FC) T=2.57,MARK E |
90520-T0026 |
— | ||
|
42345A
|
42345A
42345-0K260 Clamp, Rear Propeller Shaft Boot[07.2015 -] KUN156..LHD..H;KUN156..IDNSU..(L,M);GGN155,GUN15#,TGN156..EPTSU,IDNSU,INDSU,MASUV, PKNSU,THSUV |
42345-0K260 |
US $4.02 |
||
