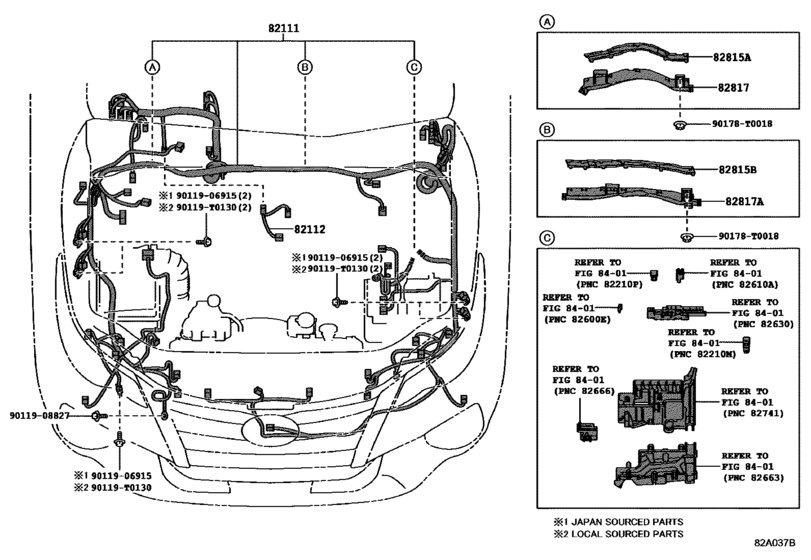

Wiring & Clamp ([07.2015 - ] ENGINE ROOM (1507- )RHD) Diagram Toyota FORTUNER
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- TGN156
- body
- IDNSU
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 01.2016
- Gear Shift Type
- 6FC
- Model Mark
- S
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-KKT70
Wire, Engine Room Main
[01.2016 - 08.2017] TGN156..S..GEN |
82111-KKT70 |
— | ||
|
82815A
|
82815A
82815-0K560
Cover, Wiring Harness Protector
[07.2015 -] GUN155..IDN;GUN155..L..MA;TGN166..RHD..(H,L,M);KUN156,TGN156..RHD..(M,S);GGN155,GU N156,16#..RHD..(ARL,IDN,IND,SA,TH) |
82815-0K560 |
— | ||
|
82815B
|
82815B
82815-0K550
Cover, Wiring Harness Protector
[07.2015 -] GUN155..IDN;GUN155..L..MA;TGN166..RHD..(H,L,M);KUN156,TGN156..RHD..(M,S);GGN155,GU N156,16#..RHD..(ARL,IDN,IND,SA,TH) |
82815-0K550 |
— | ||
|
82817
|
82817
82817-0K560
Protector, Wiring Harness, No.1
[07.2015 -] GUN155..IDN;GUN155..L..MA;TGN166..RHD..(H,L,M);KUN156,TGN156..RHD..(M,S);GGN155,GU N156,16#..RHD..(ARL,IDN,IND,SA,TH) |
82817-0K560 |
— | ||
|
82817A
|
82817A
82817-0K550
Protector, Wiring Harness, No.2
[07.2015 -] GUN155..IDN;GUN155..L..MA;TGN166..RHD..(H,L,M);KUN156,TGN156..RHD..(M,S);GGN155,GU N156,16#..RHD..(ARL,IDN,IND,SA,TH) |
82817-0K550 |
— | ||
|
90119T0130
|
90119T0130
90119-T0130
New Genuine Part
|
90119-T0130 |
— | ||
| replacement | |||||
|
90119T0130
|
90119T0130
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
90178T0018
|
90178T0018
90178-T0018
NUT FLANGE
|
90178-T0018 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9011908827
|
9011908827
90119-08827 New Genuine Part |
90119-08827 |
US $1.44 |
||
