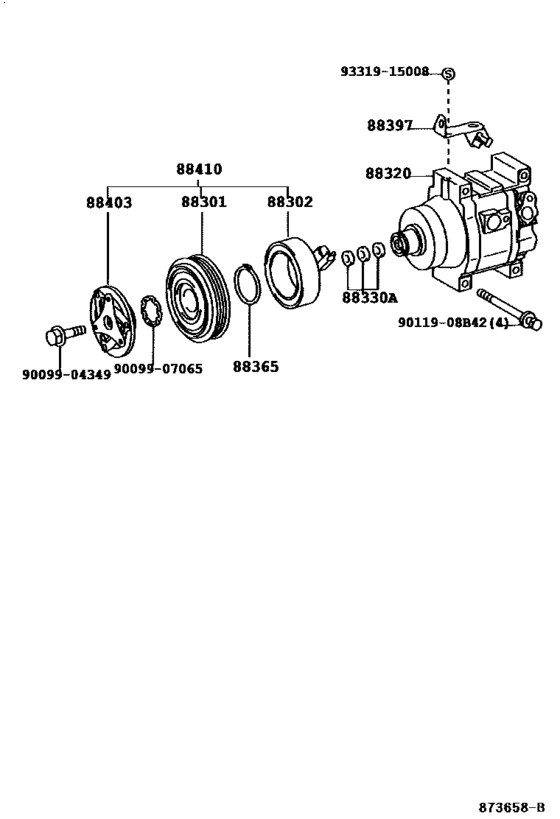

Heating & Air Conditioning - Compressor ([08.1999 - 08.2002] (9908-0208)) Diagram Toyota FUN CARGO
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- NCP20
- grade
- J
- ENGINE
- 2NZFE
- From
- 08.1999
- To
- 09.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-1A160
Rotor Sub-Assy, Magnet Clutch
[06.2001 - 08.2002] NCP2# |
88412-1A160 |
— | ||
|
88301
|
88301
88412-52040
Rotor Sub-Assy, Magnet Clutch
[08.1999 - 06.2001] NCP2# |
88412-52040 |
— | ||
|
88302
|
88302
88411-16070 Stator Sub-Assy, Magnet Clutch[08.1999 - 06.2001] NCP2# |
88411-16070 |
US $59.62 |
||
|
88302
|
88302
88411-1A050
Stator Sub-Assy, Magnet Clutch
[06.2001 - 08.2002] NCP2# |
88411-1A050 |
— | ||
|
88320
|
88320
88320-52010
Compressor Assy, Cooler
[06.2001 - 08.2002] NCP2# |
88320-52010 |
— | ||
|
88320
|
88320
88320-52040
Compressor Assy, Cooler
[08.1999 - 06.2001] NCP2# |
88320-52040 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-52010
Compressor Assy, Cooler
[08.1999 - 06.2001] NCP2# |
88320-52010 |
— | ||
|
88320
|
88320
88320-52120
Compressor Assy, Cooler
[08.2002 - 03.2003] NCP2# |
88320-52120 |
— | ||
|
88320
|
88320
88320-52400
Compressor Assy, Cooler
[08.2003 - 09.2005] NCP2# 品番ラベル＝８８３１０−５２４５１ |
88320-52400 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[08.1999 - 08.2002] NCP2# |
88335-14020 |
from US $1.25 |
||
|
88365
|
88365
88365-87201 Ring, Snap[08.1999 - 08.2002] NCP2# |
88365-87201 |
from US $1.75 |
||
|
88397
|
88397
88397-52020
Clip, Sensor
[08.1999 - 08.2002] NCP2# |
88397-52020 |
— | ||
|
88403
|
88403
88403-16020
Hub Sub-Assy, Magnet Clutch
[08.1999 - 06.2001] NCP2# |
88403-16020 |
— | ||
|
88403
|
88403
88403-1A020
Hub Sub-Assy, Magnet Clutch
[06.2001 - 08.2002] NCP2# |
88403-1A020 |
— | ||
|
88410
|
88410
88410-1A210 Clutch Assy, Magnet[06.2001 - 08.2002] NCP2# |
88410-1A210 |
US $551.82 |
||
|
88410
|
88410
88410-2B260 Clutch Assy, Magnet[06.2003 - 08.2003] NCP2# 品番ラベル＝８８３１０−５２４５０ |
88410-2B260 |
US $556.19 |
||
| replacement | |||||
|
88410
|
88410
88410-2B261 Clutch Assy, Magnet[06.2003 - 08.2003] NCP2# 品番ラベル＝８８３１０−５２４５０ |
88410-2B261 |
US $349.44 |
||
|
88410
|
88410
88410-2B280 Clutch Assy, Magnet[08.2003 - 09.2005] NCP2# 品番ラベル＝８８３１０−５２４５１ |
88410-2B280 |
US $384.38 |
||
|
88410
|
88410
88410-52050 Clutch Assy, Magnet[08.1999 - 06.2001] NCP2# |
88410-52050 |
from US $381.21 |
||
|
88410
|
88410
88410-52140 Clutch Assy, Magnet[08.2002 - 06.2003] NCP2# 外径＝１１５ |
88410-52140 |
US $556.19 |
||
| replacement | |||||
|
88410
|
88410
88410-52141 Clutch Assy, Magnet[08.2002 - 06.2003] NCP2# 外径＝１１５ |
88410-52141 |
US $556.19 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
