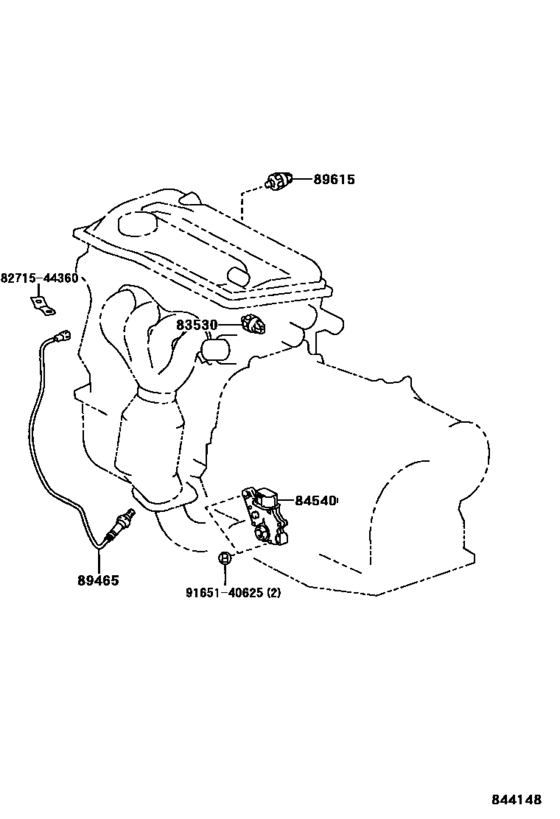

Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽ ﾐﾂｼﾖﾝ (0104- )ACM1#) Diagram Toyota GAIA
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- ACM10
- ENGINE
- 1AZFSE
- From
- 04.2001
- To
- 09.2004
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[04.2001 -] ACM1#,SXM15 ＤＥＮＳＯ |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2001 -] ACM1#,SXM15 ＤＥＮＳＯ |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[04.2001 -] ACM1#,SXM15 ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2001 -] ACM1#,SXM15 ＹＡＺＡＫＩ |
83530-60020 |
from US $25.43 |
||
|
84540
|
84540
84540-12230 Switch Assy, Neutral Start[04.2001 - 09.2004] ACM1# |
84540-12230 |
US $336.34 |
||
| replacement | |||||
|
84540
|
84540
84540-32110 Switch Assy, Neutral Start[04.2001 - 09.2004] ACM1# |
84540-32110 |
from US $159 |
||
|
89465
|
89465
89465-44070 Sensor, Oxygen[04.2001 -] ACM1# |
89465-44070 |
US $152.01 |
||
|
89615
|
89615
89615-30080 Sensor, Knock Control[04.2001 - 05.2001] ACM10 ＭＡＴＳＵＳＨＩＴＡ |
89615-30080 |
from US $120.57 |
||
|
89615
|
89615
89615-32030 Sensor, Knock Control[04.2001 - 05.2001] ACM10,SXM15 ＤＥＮＳＯ |
89615-32030 |
from US $179.97 |
||
|
89615
|
89615
89615-44010 Sensor, Knock Control[05.2001 -] ACM1# |
89615-44010 |
US $227.14 |
||
|
8271544360
|
8271544360
82715-44360 Bracket,wiring Harness Clamp |
82715-44360 |
US $5.68 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
