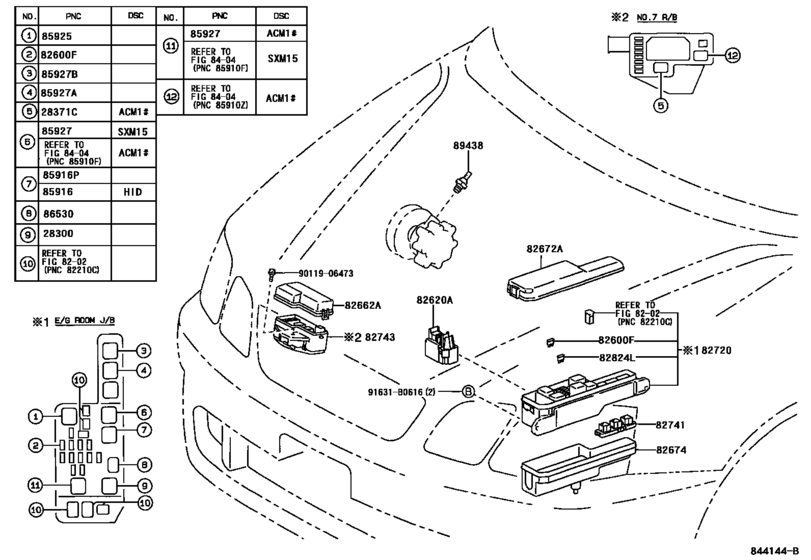

Switch & Relay & Computer ([04.2001 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0104- )ACM1#,SXM15) Diagram Toyota GAIA
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- ACM10
- ENGINE
- 1AZFSE
- From
- 04.2001
- To
- 09.2004
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[04.2001 -] 1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15 |
28300-10020 |
from US $55.30 |
||
|
28371C
|
28371C
90987-02012 Relay, Ignition, No.1[04.2001 -] 1AZFSE..ACM1# |
90987-02012 |
from US $26.99 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[04.2001 - 01.2002] ACM10,CXM10 ５Ａ，ミニ ヒューズ |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[04.2001 -] ACM1#,CXM10,SXM15 ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[04.2001 - 01.2002] ACM10,CXM10,SXM15 １０Ａ，ミニ ヒューズ |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[04.2001 -] ACM1#,CXM10,SXM15 １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[04.2001 -] ACM1#,CXM10,SXM15 ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[04.2001 -] ACM1#,CXM10,SXM15 ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[04.2001 -] ACM1#,CXM10,SXM15 ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.94 |
||
|
82620A
|
82620A
82620-20170 Block Assy, Fusible Link[08.2002 - 09.2004] ACM10 |
82620-20170 |
US $51.40 |
||
|
82662A
|
82662A
82662-44130 Cover, Relay Block, Upper, No.1[04.2001 -] ACM1#,SXM15 |
82662-44130 |
US $24.90 |
||
|
82672A
|
82672A
82672-44060 Cover, Junction Block[04.2001 - 08.2002] ACM10 |
82672-44060 |
US $34.65 |
||
|
82672A
|
82672A
82672-44061 Cover, Junction Block[08.2002 -] ACM10 |
82672-44061 |
US $34.65 |
||
|
82674
|
82674
82674-20040 Cover, Junction Block[04.2001 -] ACM1#,CXM10,SXM15 |
82674-20040 |
from US $25.19 |
||
|
82720
|
82720
82720-44050 Block Assy, Engine Room Junction[04.2001 -] ACM1# |
82720-44050 |
US $323.23 |
||
|
82741
|
82741
82741-44030 Block, Engine Room Relay[04.2001 - 01.2002] ACM10,SXM15 |
82741-44030 |
US $21.84 |
||
|
82743
|
82743
82743-44090 Block, Engine Room Relay, No.3[04.2001 -] ACM1#,SXM15 |
82743-44090 |
US $55.04 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[04.2001 -] ACM1#,CXM10,SXM15 |
82824-20140 |
US $3.32 |
||
|
85916
|
85916
85916-30060 Relay, Light Control[04.2001 -] ACM1#,CXM10,SXM15 |
85916-30060 |
from US $86.89 |
||
|
85916P
|
85916P
90987-02006 Relay[04.2001 -] ACM1#,CXM10,SXM15 |
90987-02006 |
from US $27.28 |
||
|
85927
|
85927
90987-02009 Relay Assy[04.2001 -] ACM1# |
90987-02009 |
from US $32.51 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[04.2001 -] ACM1#,SXM15 |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02012 Relay, Ignition, No.1[04.2001 -] ACM1#,SXM15 |
90987-02012 |
from US $26.99 |
||
|
86530
|
86530
90987-02012 Relay, Ignition, No.1[04.2001 -] ACM1# |
90987-02012 |
from US $26.99 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[04.2001 - 09.2004] ACM1# |
89438-33010 |
from US $30.23 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.68 |
||
|
9011906473
|
9011906473
90119-06473 BOLTWWASHER |
90119-06473 |
US $1.12 |
