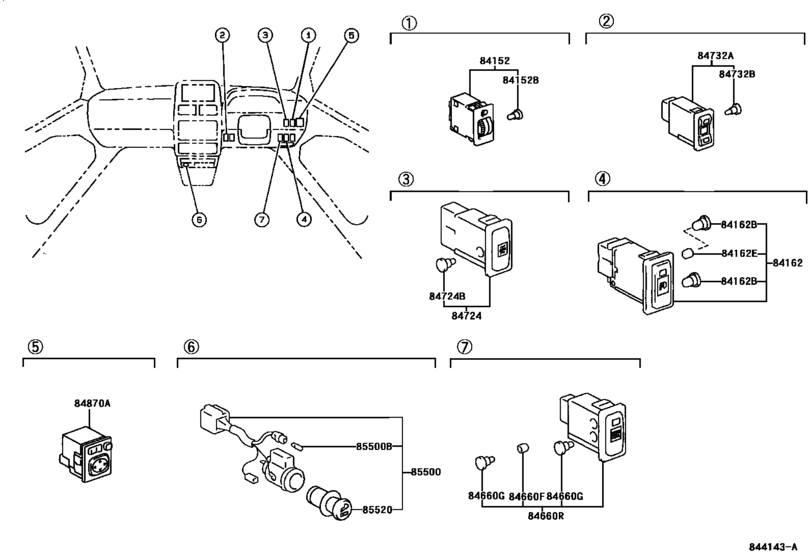

Switch & Relay & Computer ([04.2001 - ] ｲﾝﾊﾟﾈ ｽｲﾂﾁ (0104- )) Diagram Toyota GAIA
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- ACM10
- ENGINE
- 1AZFSE
- From
- 04.2001
- To
- 09.2004
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-47010 Switch, Headlamp Leveling[04.2001 -] ACM1#,CXM10,SXM15 |
84152-47010 |
US $48.05 |
||
|
84152B
|
84152B
90010-08100 Bulb (For Headlamp Leveling Switch)[04.2001 -] ACM1#,CXM10,SXM15 １４Ｖ ４０ＭＡ，グリーン キャップ付き |
90010-08100 |
from US $3.78 |
||
|
84162
|
84162
84160-44020
Switch, Front Fog Lamp
[04.2001 - 09.2004] ACM1#,CXM10 |
84160-44020 |
— | ||
|
84162B
|
84162B
84999-10310 Bulb, Air Conditioner Control[04.2001 -] ACM1#,CXM10,SXM15 １４Ｖ ０．９１Ｗ |
84999-10310 |
from US $2.96 |
||
|
84162E
|
84162E
84998-10740 Cap, Fog Lamp Bulb[04.2001 -] ACM1#,CXM10,SXM15 |
84998-10740 |
US $3.20 |
||
|
84660F
|
84660F
84998-10090 Cap, Fog Lamp Bulb[04.2001 -] ACM1#,CXM10,SXM15 |
84998-10090 |
US $3.20 |
||
|
84660G
|
84660G
84999-10320 Bulb, Satellite Switch[04.2001 -] ACM1#,CXM10,SXM15 １４Ｖ ０．８４Ｗ |
84999-10320 |
from US $3.84 |
||
|
84660R
|
84660R
84660-44010 Switch, Cooler(Rear)[04.2001 -] ACM1#,CXM10,SXM15 |
84660-44010 |
US $60.86 |
||
|
84732A
|
84732A
84730-44010 Switch, Rear Heater Blower[04.2001 -] ACM1#,CXM10,SXM15 |
84730-44010 |
US $57.51 |
||
|
84732B
|
84732B
84999-10190 Bulb, Hazard Warning Signal Switch[04.2001 -] ACM1#,CXM10,SXM15 １２Ｖ ０．８７Ｗ |
84999-10190 |
from US $5.42 |
||
|
84870A
|
84870A
84870-28020 Switch Assy, Outer Mirror[04.2001 -] ACM1#,CXM10,SXM15 |
84870-28020 |
from US $66.27 |
||
|
85500
|
85500
85500-44010 Lighter Assy, Cigarette[04.2001 -] ACM1#,CXM10,SXM15 |
85500-44010 |
US $58.82 |
||
| replacement | |||||
|
85500
|
85500
85500-63010
Lighter Assy, Cigarette
[04.2001 -] ACM1#,CXM10,SXM15 |
85500-63010 |
— | ||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[04.2001 -] ACM1#,CXM10,SXM15 １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[04.2001 -] ACM1#,CXM10,SXM15 |
85520-28010 |
from US $17.90 |
||
