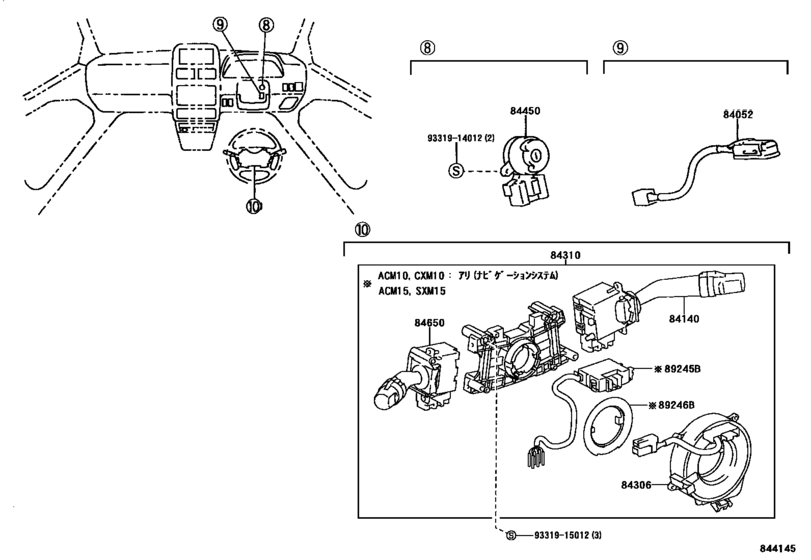

Switch & Relay & Computer ([04.2001 - ] ﾀ-ﾝｼｸﾞﾅﾙ ｽｲﾂﾁ (0104- )) Diagram Toyota GAIA
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- ACM10
- ENGINE
- 1AZFSE
- From
- 04.2001
- To
- 09.2004
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-12070 Switch Assy, Un-Lock Warning[04.2001 - 09.2004] ACM1#,CXM10 |
84052-12070 |
US $16.42 |
||
|
84140
|
84140
84140-20570
Switch Assy, Headlamp Dimmer
[04.2001 -] ACM1#,CXM10,SXM15 |
84140-20570 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-26170 Switch Assy, Headlamp Dimmer[04.2001 -] ACM1#,CXM10,SXM15 |
84140-26170 |
from US $50.57 |
||
|
84306
|
84306
84306-12070 Cable Sub-Assy, Spiral[04.2001 -] ACM10,CXM10 |
84306-12070 |
from US $174.25 |
||
|
84306
|
84306
84306-33070 Cable Sub-Assy, Spiral[04.2001 -] ACM15,SXM15; ACM10,CXM10 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
84306-33070 |
US $270.82 |
||
|
84310
|
84310
84310-1G060 Switch Assy, Turn Signal[04.2001 - 08.2002] ACM10,CXM10 |
84310-1G060 |
US $409.14 |
||
|
84310
|
84310
84310-44090 Switch Assy, Turn Signal[08.2002 -] ACM15; ACM10,CXM10 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
84310-44090 |
US $572.21 |
||
|
84310
|
84310
84310-44100 Switch Assy, Turn Signal[04.2001 - 08.2002] SXM15; ACM10,CXM10 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
84310-44100 |
US $559.10 |
||
|
84310
|
84310
84310-44150 Switch Assy, Turn Signal[08.2002 -] ACM10,CXM10 |
84310-44150 |
US $521.25 |
||
| replacements | |||||
|
84310
|
84310
84140-26170 Switch Assy, Headlamp Dimmer[08.2002 -] ACM10,CXM10 |
84140-26170 |
from US $50.57 |
||
|
84310
|
84310
84306-12070 Cable Sub-Assy, Spiral[08.2002 -] ACM10,CXM10 |
84306-12070 |
from US $174.25 |
||
|
84310
|
84310
84319-44010 Housing, Steering Wheel Switch[08.2002 -] ACM10,CXM10 |
84319-44010 |
US $40.77 |
||
|
84310
|
84310
84652-44050 Switch Assy, Windshield Wiper[08.2002 -] ACM10,CXM10 |
84652-44050 |
US $163.07 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[04.2001 - 09.2004] ACM1#,CXM10 |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-44030 Switch Assy, Windshield Wiper[04.2001 - 08.2002] ACM10,CXM10,SXM15 |
84652-44030 |
US $152.88 |
||
| replacement | |||||
|
84650
|
84650
84652-44050 Switch Assy, Windshield Wiper[04.2001 - 08.2002] ACM10,CXM10,SXM15 |
84652-44050 |
US $163.07 |
||
|
84650
|
84650
84652-44050 Switch Assy, Windshield Wiper[08.2002 -] ACM1#,CXM10 |
84652-44050 |
US $163.07 |
||
|
89245B
|
89245B
89245-22030 Sensor, Steering[04.2001 - 09.2004] ACM1#,CXM10 |
89245-22030 |
US $291.20 |
||
|
89246B
|
89246B
89246-44010 Disc, Sensor Steering[04.2001 - 08.2002] ACM10,CXM10,SXM15 |
89246-44010 |
US $119.39 |
||
|
89246B
|
89246B
89246-44020 Disc, Sensor Steering[08.2002 - 09.2004] ACM1#,CXM10 |
89246-44020 |
US $117.94 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
