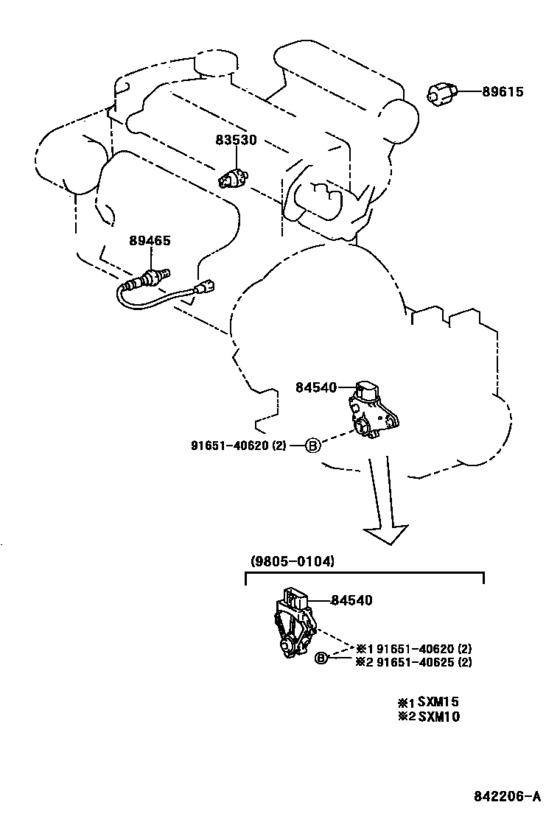

Switch & Relay & Computer ([05.1998 - 08.2002] ｴﾝｼﾞﾝ & ﾄﾗﾝｽ ﾐﾂｼﾖﾝ (9805-0208)SXM1#) Diagram Toyota GAIA
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXM10
- ENGINE
- 3SFE
- From
- 05.1998
- To
- 04.2001
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[05.1998 - 04.2001] SXM1# ＤＥＮＳＯ |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.1998 - 04.2001] SXM1# ＤＥＮＳＯ |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[05.1998 - 04.2001] SXM1# ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.1998 - 04.2001] SXM1# ＹＡＺＡＫＩ |
83530-60020 |
from US $25.43 |
||
|
84540
|
84540
84540-12200 Switch Assy, Neutral Start[05.1998 - 04.2001] SXM10 東海理化 |
84540-12200 |
US $174.24 |
||
|
84540
|
84540
84540-12210 Switch Assy, Neutral Start[05.1998 - 04.2001] SXM10 ＭＡＴＳＵＳＨＩＴＡ |
84540-12210 |
US $159 |
||
|
89465
|
89465
89465-20400 Sensor, Oxygen[05.1998 - 04.2001] SXM1# |
89465-20400 |
US $144.14 |
||
|
89615
|
89615
89615-20030 Sensor, Knock Control[05.1998 - 10.1999] SXM1# ＴＯＹＯＴＡ |
89615-20030 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[05.1998 - 10.1999] SXM1# ＴＯＹＯＴＡ |
89615-32030 |
from US $179.97 |
||
|
89615
|
89615
89615-32030 Sensor, Knock Control[10.1999 - 04.2001] SXM1# ＤＥＮＳＯ |
89615-32030 |
from US $179.97 |
||
|
89615
|
89615
89615-32040 Sensor, Knock Control[10.1999 - 04.2001] SXM1# ＴＯＹＯＴＡ |
89615-32040 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[10.1999 - 04.2001] SXM1# ＴＯＹＯＴＡ |
89615-32030 |
from US $179.97 |
||
|
89615
|
89615
89615-33020 Sensor, Knock Control[05.1998 - 10.1999] SXM1# ＤＥＮＳＯ |
89615-33020 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[05.1998 - 10.1999] SXM1# ＤＥＮＳＯ |
89615-32030 |
from US $179.97 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
