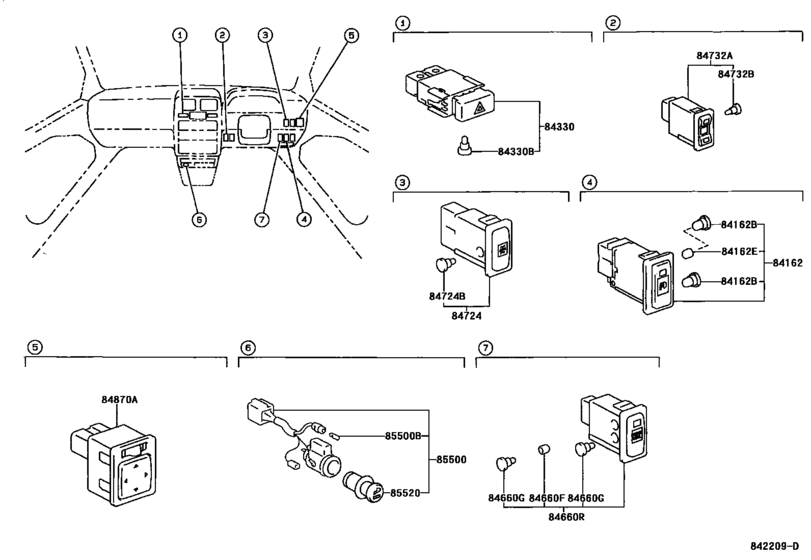

Switch & Relay & Computer ([05.1998 - 04.2001] ｲﾝﾊﾟﾈ ｽｲﾂﾁ (9805-0104)) Diagram Toyota GAIA
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXM10
- ENGINE
- 3SFE
- From
- 05.1998
- To
- 04.2001
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84162
|
84162
84160-44020
Switch, Front Fog Lamp
[05.1998 - 04.2001] CXM10,SXM1# |
84160-44020 |
— | ||
|
84162B
|
84162B
84999-10310 Bulb, Air Conditioner Control[05.1998 - 04.2001] CXM10,SXM1# １４Ｖ ０．９１Ｗ |
84999-10310 |
from US $2.96 |
||
|
84162E
|
84162E
84998-10740 Cap, Fog Lamp Bulb[05.1998 - 04.2001] CXM10,SXM1# |
84998-10740 |
US $3.20 |
||
|
84330
|
84330
84332-20350 Switch Assy, Hazard Warning Signal[05.1998 - 04.2001] CXM10,SXM1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
84332-20350 |
US $57.37 |
||
|
84330
|
84330
84332-44010 Switch Assy, Hazard Warning Signal[05.1998 - 04.2001] CXM10,SXM1# |
84332-44010 |
US $57.51 |
||
|
84330B
|
84330B
84999-10860 Bulb, Hazard Warning Signal Switch[05.1998 - 04.2001] CXM10,SXM1# １４Ｖ ０．９１Ｗ |
84999-10860 |
from US $4.32 |
||
|
84660F
|
84660F
84998-10090 Cap, Fog Lamp Bulb[05.1998 - 04.2001] CXM10,SXM1# |
84998-10090 |
US $3.20 |
||
|
84660G
|
84660G
84999-10320 Bulb, Satellite Switch[05.1998 - 04.2001] CXM10,SXM1# １４Ｖ ０．８４Ｗ |
84999-10320 |
from US $3.84 |
||
|
84660R
|
84660R
84660-44010 Switch, Cooler(Rear)[05.1998 - 04.2001] CXM10,SXM1# |
84660-44010 |
US $60.86 |
||
|
84732A
|
84732A
84730-44010 Switch, Rear Heater Blower[05.1998 - 04.2001] CXM10,SXM1# |
84730-44010 |
US $57.51 |
||
|
84732B
|
84732B
84999-10190 Bulb, Hazard Warning Signal Switch[05.1998 - 04.2001] CXM10,SXM1# １２Ｖ ０．８７Ｗ |
84999-10190 |
from US $5.42 |
||
|
84870A
|
84870A
84870-16040 Switch Assy, Outer Mirror[05.1998 - 04.2001] CXM10,SXM1# |
84870-16040 |
US $105.08 |
||
|
85500
|
85500
85500-44010 Lighter Assy, Cigarette[05.1998 - 04.2001] CXM10,SXM1# |
85500-44010 |
US $58.82 |
||
| replacement | |||||
|
85500
|
85500
85500-63010
Lighter Assy, Cigarette
[05.1998 - 04.2001] CXM10,SXM1# |
85500-63010 |
— | ||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[05.1998 - 04.2001] CXM10,SXM1# １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[05.1998 - 04.2001] CXM10,SXM1# |
85520-28010 |
from US $17.90 |
||
