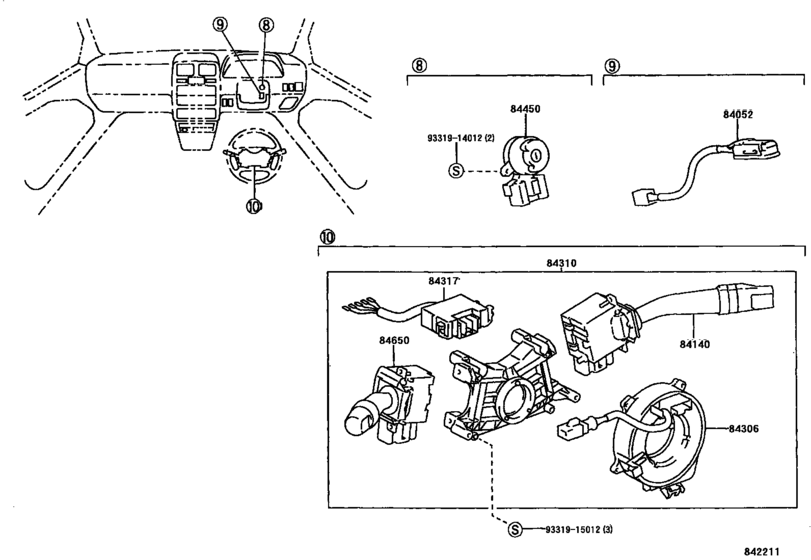

Switch & Relay & Computer ([05.1998 - 04.2001] ﾀ-ﾝｼｸﾞﾅﾙ ｽｲﾂﾁ (9805-0104)) Diagram Toyota GAIA
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXM10
- ENGINE
- 3SFE
- From
- 05.1998
- To
- 04.2001
- Seating Capacity
- 06S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-12070 Switch Assy, Un-Lock Warning[05.1998 - 04.2001] CXM10,SXM1# |
84052-12070 |
US $16.42 |
||
|
84140
|
84140
84140-20570
Switch Assy, Headlamp Dimmer
[05.1998 - 04.2001] CXM10,SXM1# |
84140-20570 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-26170 Switch Assy, Headlamp Dimmer[05.1998 - 04.2001] CXM10,SXM1# |
84140-26170 |
from US $50.57 |
||
|
84306
|
84306
84306-12070 Cable Sub-Assy, Spiral[05.1998 - 04.2001] CXM10,SXM1# |
84306-12070 |
from US $174.25 |
||
|
84310
|
84310
84310-1G060 Switch Assy, Turn Signal[05.1998 - 04.2001] CXM10,SXM10 |
84310-1G060 |
US $409.14 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[05.1998 - 04.2001] CXM10,SXM1# |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-44030 Switch Assy, Windshield Wiper[05.1998 - 04.2001] CXM10,SXM1# |
84652-44030 |
US $152.88 |
||
| replacement | |||||
|
84650
|
84650
84652-44050 Switch Assy, Windshield Wiper[05.1998 - 04.2001] CXM10,SXM1# |
84652-44050 |
US $163.07 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
