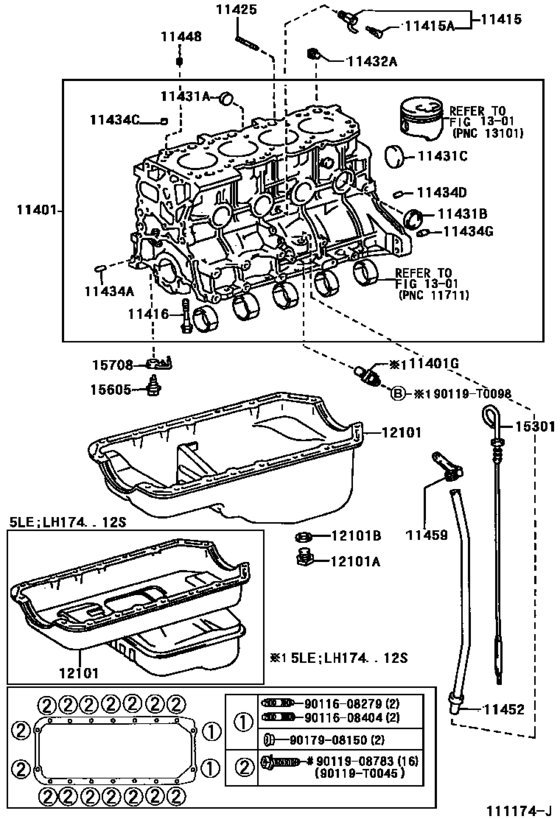

Cylinder Block ([08.1998 - ] (9808- )5L..LH176 ; (9808- )5L..LH166,174. .12S ; (0108- )5LE) Diagram Toyota HIACE
- Year
- 1998 - 2004
- Sales region
- Europe
- Frame
- LH166
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 5L
- DESTINATION
- CIS
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1998
- To
- 08.2004
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-59645 Block Sub-Assy, Cylinder[08.1998 - 07.1999] 5L..LH166,17#,184 |
11401-59645 |
US $4,309.76 |
||
| replacement | |||||
|
11401
|
11401
11401-59818 Block Sub-Assy, CylinderCYLINDER [08.1998 - 07.1999] 5L..LH166,17#,184 |
11401-59818 |
US $2,693.60 |
||
|
11415
|
11415
90910-09110 Cock Sub-Assy, Water Drain(For Cylinder Block)[03.1998 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
90910-09110 |
US $11.36 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[03.1998 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
90910-09087 |
from US $3.68 |
||
|
11416
|
11416
90910-02061 Bolt(For Cylinder Head Set)[08.1989 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
90910-02061 |
US $3.68 |
||
|
11425
|
11425
92112-80825 Bolt, Stud(For Oil Filter)[05.1997 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
92112-80825 |
US $2.56 |
||
|
11431A
|
11431A
96411-42500 Plug, Tight, No.1[08.1989 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
96411-42500 |
from US $2.95 |
||
|
11431B
|
11431B
96411-43500 Plug, Tight, No.1[08.1989 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
96411-43500 |
from US $3.88 |
||
|
11431C
|
11431C
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1989 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
96411-45000 |
from US $3.86 |
||
|
11432A
|
11432A
90345-51006 Plug, W/head Taper Screw, No.2[08.1998 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
90345-51006 |
US $0.96 |
||
|
11434A
|
11434A
90253-11021 Pin, Ring[12.1990 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=8,OD=11 |
90253-11021 |
from US $1.50 |
||
|
11434C
|
11434C
90253-15005 Pin, Ring(For Crankshaft Bearing Cap Set)[08.1989 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=7,OD=14.5 |
90253-15005 |
US $3.68 |
||
|
11434D
|
11434D
90253-11021 Pin, Ring[02.1991 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 L=8,OD=11 |
90253-11021 |
from US $1.50 |
||
|
11434G
|
11434G
90250-10113 Pin, Straight(For Timing Gear Cover Set)[02.1995 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
90250-10113 |
from US $1.03 |
||
|
11448
|
11448
11448-54020 Orifice, Cylinder Block Oil[08.1989 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
11448-54020 |
US $3.32 |
||
|
11452
|
11452
11452-54090 Guide, Oil Level Gage[08.1989 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
11452-54090 |
US $11.01 |
||
|
11459
|
11459
90929-01203 Support, Oil Level Gage Guide[08.1989 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
90929-01203 |
US $5.42 |
||
|
12101
|
12101
12101-54195 Pan Sub-Assy, Oil[08.1998 - 07.1999] 5L..LH166,176 |
12101-54195 |
US $435.34 |
||
| replacement | |||||
|
12101
|
12101
12101-54197 Pan Sub-Assy, Oil[08.1998 - 07.1999] 5L..LH166,176 |
12101-54197 |
US $284.20 |
||
|
12101
|
12101
12101-54196 Pan Sub-Assy, Oil[09.2000 - 08.2003] 5L..LH166,176 |
12101-54196 |
US $435.34 |
||
| replacement | |||||
|
12101
|
12101
12101-54197 Pan Sub-Assy, Oil[09.2000 - 08.2003] 5L..LH166,176 |
12101-54197 |
US $284.20 |
||
|
12101
|
12101
12101-54197 Pan Sub-Assy, Oil[08.2003 - 08.2004] 5L..LH166,176 |
12101-54197 |
US $284.20 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[05.1990 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004
Plug(For Oil Pan Drain)
[05.1990 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
90341-T0004 |
— | ||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[09.1993 - 08.2000] 5L..LH172..GL;5L..LH172,174..06S,10S;2L,3L,5L..LH10#,11#,125,166,176,184 |
90430-12031 |
from US $0.88 |
||
|
15301
|
15301
15301-54080 Gage Sub-Assy, Oil Level[08.1989 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
15301-54080 |
from US $8.91 |
||
|
15605
|
15605
15605-54010 Valve Sub-Assy, Oil Check[08.1998 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
15605-54010 |
from US $9.73 |
||
|
15708
|
15708
15708-54060 Nozzle Sub-Assy, Oil, No.1[08.1989 - 08.2000] 5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184 |
15708-54060 |
from US $10 |
||
|
90119T0045
|
90119T0045
90119-T0045
New Genuine Part
|
90119-T0045 |
— | ||
|
90119T0098
|
90119T0098
90119-T0098
New Genuine Part
|
90119-T0098 |
— | ||
|
9011608279
|
9011608279
90116-08279 BOLT STUD |
90116-08279 |
US $1.89 |
||
|
9011608404
|
9011608404
90116-08404 BOLT STUD |
90116-08404 |
US $1.44 |
||
|
9011908783
|
9011908783
90119-08783 BOLT WWASHER |
90119-08783 |
from US $1.08 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.05 |
||
