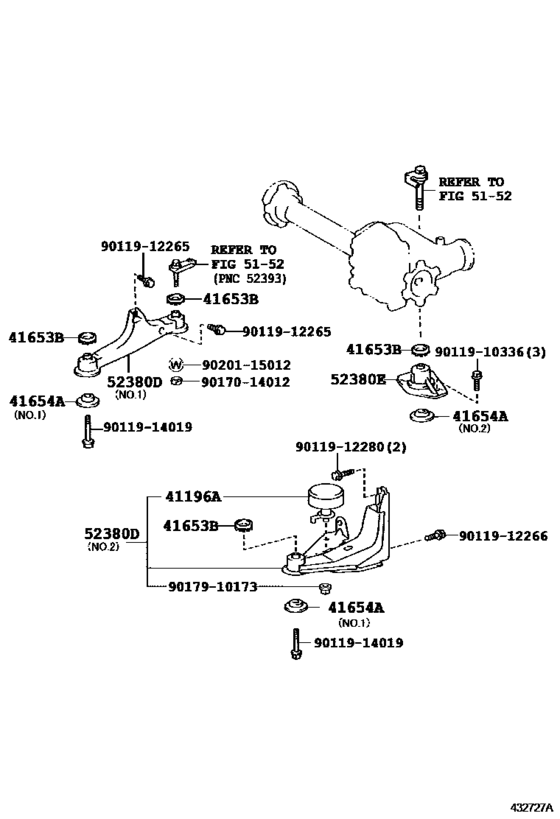

Front Axle Housing & Differential ([08.1998 - ] (9808- )LH166,176) Diagram Toyota HIACE
- Year
- 1998 - 2004
- Sales region
- Europe
- Frame
- LH166
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 5L
- DESTINATION
- CIS
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1998
- To
- 08.2004
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41196A
|
41196A
41196-26010 Damper, Front Differential Dynamic[08.1998 - 07.1999] LH166,176 |
41196-26010 |
US $41.06 |
||
|
41653B
|
41653B
41653-26010 Stopper, Differential Mount, Upper[08.1998 - 07.1999] LH166,176 |
41653-26010 |
from US $5.07 |
||
|
41654A
|
41654A
41654-26010 Stopper, Differential Mount, Lower[08.1998 - 07.1999] LH166,176 NO.1 |
41654-26010 |
from US $11.20 |
||
|
41654A
|
41654A
41654-26030 Stopper, Differential Mount, Lower[08.1998 - 07.1999] LH166,176 NO.2 |
41654-26030 |
US $19.15 |
||
|
52380D
|
52380D
52380-26051 Support Assy, Front Differential[08.1998 - 07.1999] LH166,176 NO.2 |
52380-26051 |
US $260.33 |
||
|
52380D
|
52380D
52380-26060 Support Assy, Front Differential[08.1998 - 07.1999] LH166,176 NO.1 |
52380-26060 |
US $216.94 |
||
|
52380E
|
52380E
52380-26070 Support Assy, Front Differential[08.1998 - 07.1999] LH166,176 |
52380-26070 |
from US $62.78 |
||
|
9011910336
|
9011910336
90119-10336 Bolt |
90119-10336 |
US $1.76 |
||
|
9011912265
|
9011912265
90119-12265 New Genuine Part |
90119-12265 |
US $3.32 |
||
|
9011912266
|
9011912266
90119-12266 New Genuine Part |
90119-12266 |
US $5.28 |
||
|
9011912280
|
9011912280
90119-12280 New Genuine Part |
90119-12280 |
US $5.53 |
||
|
9011914019
|
9011914019
90119-14019 BOLT |
90119-14019 |
US $5.12 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9017910173
|
9017910173
90179-10173 NUT |
90179-10173 |
US $3.20 |
||
|
9020115012
|
9020115012
90201-15012 Washer(For Rear Spring U Bolt) |
90201-15012 |
from US $1.23 |
