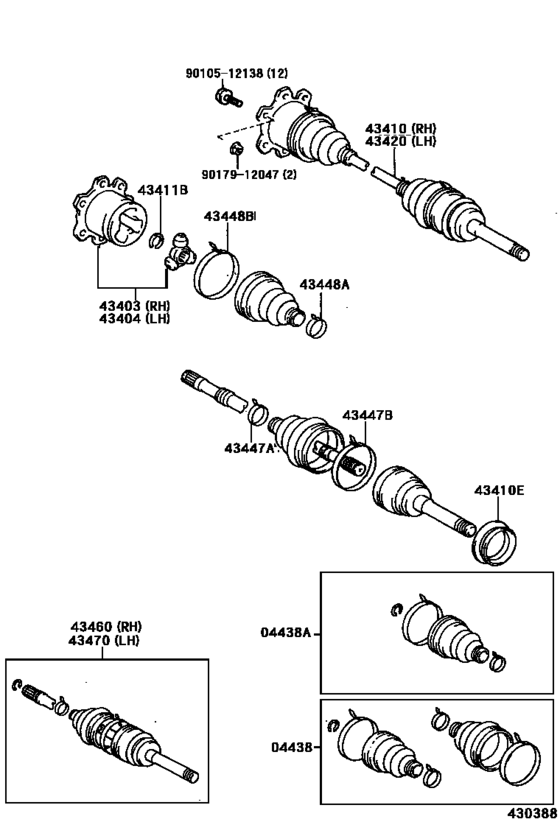

Front Drive Shaft ([08.1998 - ] (9808- )LH166,176) Diagram Toyota HIACE
- Year
- 1998 - 2004
- Sales region
- Europe
- Frame
- LH166
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 5L
- DESTINATION
- CIS
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1998
- To
- 08.2004
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438
|
04438
04438-35022
Boot Kit, Front Drive Shaft
[08.1998 - 07.1999] LH166,176 |
04438-35022 |
— | ||
| replacement | |||||
|
04438
|
04438
04428-35012 Boot Kit, Front Drive Shaft[08.1998 - 07.1999] LH166,176 |
04428-35012 |
from US $155.52 |
||
|
04438A
|
04438A
04438-35012
Boot Kit, Front Drive Shaft Inboard Joint
[08.1998 - 07.1999] LH166,176 |
04438-35012 |
— | ||
| replacements | |||||
|
04438A
|
04438A
04437-25011
Boot Kit, Front Drive Shaft Inboard Joint
[08.1998 - 07.1999] LH166,176 |
04437-25011 |
— | ||
|
04438A
|
04438A
04437-25013 BOOT KIT, FR DRIVE[08.1998 - 07.1999] LH166,176 |
04437-25013 |
US $63.08 |
||
|
43403
|
43403
43403-35020 Joint Set, Front Axle Inboard, Rh[08.1998 - 07.1999] LH166,176 |
43403-35020 |
US $340.70 |
||
| replacement | |||||
|
43403
|
43403
43403-26010 Joint Assy, Front Drive Inboard[08.1998 - 07.1999] LH166,176 |
43403-26010 |
US $316.24 |
||
|
43404
|
43404
43403-35020 Joint Set, Front Axle Inboard, Rh[08.1998 - 07.1999] LH166,176 |
43403-35020 |
US $340.70 |
||
| replacement | |||||
|
43404
|
43404
43403-26010 Joint Assy, Front Drive Inboard[08.1998 - 07.1999] LH166,176 |
43403-26010 |
US $316.24 |
||
|
43410
|
43410
43430-26022
Shaft Assy, Front Drive, Rh
[07.2001 - 08.2004] LH166,176 |
43430-26022 |
— | ||
| replacement | |||||
|
43410
|
43410
43430-26023 Shaft Assy, Front Drive[07.2001 - 08.2004] LH166,176 |
43430-26023 |
US $1,010.46 |
||
|
43410
|
43410
43430-26050 Shaft Assy, Front Drive, Rh[08.1998 - 07.1999] LH166,176 |
43430-26050 |
US $936.21 |
||
| replacements | |||||
|
43410
|
43410
43430-26023 Shaft Assy, Front Drive[08.1998 - 07.1999] LH166,176 |
43430-26023 |
US $1,010.46 |
||
|
43410
|
43410
90316-60004 Seal, Oil (For Steering Knuckle)[08.1998 - 07.1999] LH166,176 |
90316-60004 |
from US $19.15 |
||
|
43410E
|
43410E
90304-76003 Deflector, Rear Wheel Bearing Dust, No.1 Rh[08.1998 - 07.1999] LH166,176 |
90304-76003 |
from US $12.96 |
||
|
43410E
|
43410E
90304-76005 Seal, Dust(For Front Axle Outer Shaft)[07.2001 -] LH166,176 |
90304-76005 |
from US $16.42 |
||
|
43411B
|
43411B
90520-29028 Ring, Snap (For Rear Drive Shaft)[08.1998 - 07.1999] LH166,176 |
90520-29028 |
US $1.60 |
||
|
43420
|
43420
43430-26022
Shaft Assy, Front Drive, Rh
[07.2001 - 08.2004] LH166,176 |
43430-26022 |
— | ||
| replacement | |||||
|
43420
|
43420
43430-26023 Shaft Assy, Front Drive[07.2001 - 08.2004] LH166,176 |
43430-26023 |
US $1,010.46 |
||
|
43420
|
43420
43430-26050 Shaft Assy, Front Drive, Rh[08.1998 - 07.1999] LH166,176 |
43430-26050 |
US $936.21 |
||
| replacements | |||||
|
43420
|
43420
43430-26023 Shaft Assy, Front Drive[08.1998 - 07.1999] LH166,176 |
43430-26023 |
US $1,010.46 |
||
|
43420
|
43420
90316-60004 Seal, Oil (For Steering Knuckle)[08.1998 - 07.1999] LH166,176 |
90316-60004 |
from US $19.15 |
||
|
43447A
|
43447A
90949-01221 Clamp, Rear Drive Shaft Boot[08.1998 - 07.1999] LH166,176 |
90949-01221 |
US $2.08 |
||
|
43447B
|
43447B
90949-01135 Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)[08.1998 - 07.1999] LH166,176 |
90949-01135 |
US $3.67 |
||
|
43448A
|
43448A
90949-01221 Clamp, Rear Drive Shaft Boot[08.1998 - 07.1999] LH166,176 |
90949-01221 |
US $2.08 |
||
|
43448B
|
43448B
90949-01222 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.1998 - 07.1999] LH166,176 |
90949-01222 |
US $2.72 |
||
|
43460
|
43460
43460-29365 Shaft Assy, Front Drive Outboard Joint, Rh[08.1998 - 07.1999] LH166,176 |
43460-29365 |
US $512.51 |
||
| replacements | |||||
|
43460
|
43460
43460-29475 Shaft Assy, Front Drive Outboard Joint[08.1998 - 07.1999] LH166,176 |
43460-29475 |
US $501.45 |
||
|
43460
|
43460
90316-60004 Seal, Oil (For Steering Knuckle)[08.1998 - 07.1999] LH166,176 |
90316-60004 |
from US $19.15 |
||
|
43460
|
43460
43460-29475 Shaft Assy, Front Drive Outboard Joint[07.2001 - 08.2004] LH166,176 |
43460-29475 |
US $501.45 |
||
|
43470
|
43470
43460-29365 Shaft Assy, Front Drive Outboard Joint, Rh[08.1998 - 07.1999] LH166,176 |
43460-29365 |
US $512.51 |
||
| replacements | |||||
|
43470
|
43470
43460-29475 Shaft Assy, Front Drive Outboard Joint[08.1998 - 07.1999] LH166,176 |
43460-29475 |
US $501.45 |
||
|
43470
|
43470
90316-60004 Seal, Oil (For Steering Knuckle)[08.1998 - 07.1999] LH166,176 |
90316-60004 |
from US $19.15 |
||
|
43470
|
43470
43460-29475 Shaft Assy, Front Drive Outboard Joint[07.2001 - 08.2004] LH166,176 |
43460-29475 |
US $501.45 |
||
|
9010512138
|
9010512138
90105-12138 Bolt |
90105-12138 |
US $1.60 |
||
|
9017912047
|
9017912047
90179-12047 Nut(For Front Stabilizer Link) |
90179-12047 |
from US $1.56 |
||
