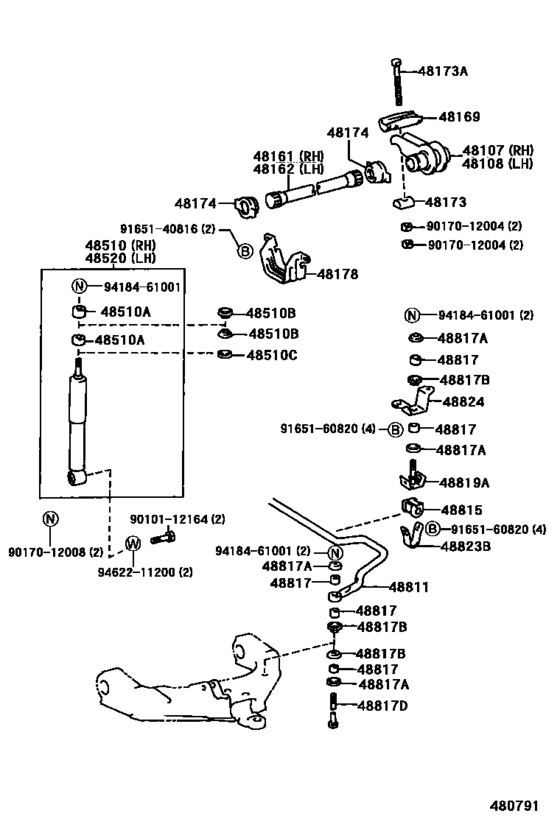

Front Spring & Shock Absorber ([08.1998 - ] (9808- )LH166,176) Diagram Toyota HIACE
- Year
- 1998 - 2004
- Sales region
- Europe
- Frame
- LH166
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 5L
- DESTINATION
- CIS
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1998
- To
- 08.2004
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48107
|
48107
48107-26050 Arm Sub-Assy, Anchor, Rh[08.1989 -] RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH17 2,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0 6S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S |
48107-26050 |
US $75.71 |
||
|
48108
|
48108
48108-26050 Arm Sub-Assy, Anchor, Lh[08.1989 -] RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH17 2,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0 6S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S |
48108-26050 |
US $75.71 |
||
|
48161
|
48161
48161-26290
Spring, Torsion Bar, Rh
[08.1998 - 07.1999] LH166,176 |
48161-26290 |
— | ||
|
48162
|
48162
48162-26290 Spring, Torsion Bar, Lh[08.1998 - 07.1999] LH166,176 |
48162-26290 |
US $185.86 |
||
|
48169
|
48169
48169-26030 Swivel, Anchor Arm[08.1998 - 07.1999] LH166,176 |
48169-26030 |
US $19.74 |
||
|
48173
|
48173
48173-27010 Seat, Anchor Arm Adjuster[08.1989 -] RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH17 2,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0 6S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S |
48173-27010 |
US $7.04 |
||
|
48173A
|
48173A
90101-12091 Bolt, Hexagon(For Anchor Arm Adjusting)[08.1998 - 01.1999] LH166,176 RH |
90101-12091 |
from US $5.97 |
||
|
48173A
|
48173A
90101-12165 Bolt, Hexagon(For Anchor Arm Adjusting)[08.1998 - 01.1999] LH166,176 LH |
90101-12165 |
from US $5.13 |
||
|
48174
|
48174
48174-26010 Cover, Torsion Bar Dust[08.1989 -] RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH17 2,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0 6S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S |
48174-26010 |
US $10.08 |
||
|
48178
|
48178
48178-26030 Protector, Torsion Bar Dust Cover, Rh[08.1989 -] RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH17 2,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0 6S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S |
48178-26030 |
US $17.91 |
||
|
48510
|
48510
48511-29597 Absorber Assy, Shock, Front[08.1998 - 07.1999] LH166,176 MARK 48511-26201 |
48511-29597 |
US $109.52 |
||
|
48510A
|
48510A
90948-01031 Cushion, Shock Absorber[08.1998 - 07.1999] LH166,176 |
90948-01031 |
from US $1.66 |
||
|
48510B
|
48510B
90948-02017 Retainer, Cushion, No.1(For Front Shock Absorber)[08.1998 - 07.1999] LH166,176 |
90948-02017 |
US $5.12 |
||
|
48510C
|
48510C
90948-02002 Retainer, Steering Damper Cushion[08.1989 -] RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH17 2,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0 6S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S |
90948-02002 |
from US $1.35 |
||
|
48520
|
48520
48511-29597 Absorber Assy, Shock, Front[08.1998 - 07.1999] LH166,176 MARK 48511-26201 |
48511-29597 |
US $109.52 |
||
|
48811
|
48811
48811-26181 Bar, Stabilizer, Front[08.1998 - 07.1999] LH166,176 |
48811-26181 |
US $225.68 |
||
|
48815
|
48815
48815-26050 Bush, Front Stabilizer Bar, No.1[08.1998 - 07.1999] LH166,176 |
48815-26050 |
from US $12.01 |
||
|
48817
|
48817
90948-01002 Cushion[08.1998 - 07.1999] LH166,176 |
90948-01002 |
from US $2.75 |
||
|
48817A
|
48817A
90948-02004 Cushion Retainer[08.1989 -] RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH17 2,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0 6S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S |
90948-02004 |
from US $1.52 |
||
|
48817B
|
48817B
90948-02005 Retainer No.2[08.1998 - 07.1999] LH166,176 |
90948-02005 |
from US $1.31 |
||
|
48817D
|
48817D
91112-61080 Bolt[08.1998 - 07.1999] LH166,176 |
91112-61080 |
from US $1.38 |
||
|
48819A
|
48819A
48819-26040 Bolt, Front Stabilizer[08.1998 - 07.1999] LH166,176 |
48819-26040 |
US $15.35 |
||
|
48823B
|
48823B
48823-26090 Cover, Stabilizer Link(For Front)[08.1998 - 07.1999] LH166,176 |
48823-26090 |
US $13.92 |
||
|
48824
|
48824
48824-26090 Bracket, Stabilizer, Front[08.1998 - 07.1999] LH166,176 |
48824-26090 |
US $20.37 |
||
|
9010112164
|
9010112164
90101-12164 BOLT HEXAGON |
90101-12164 |
US $4.96 |
||
|
9017012004
|
9017012004
90170-12004 NUT |
90170-12004 |
from US $1.23 |
||
|
9017012008
|
9017012008
90170-12008 NUT |
90170-12008 |
from US $1.40 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.05 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.78 |
||
|
9462211200
|
9462211200
94622-11200 WASHER |
94622-11200 |
US $3.20 |
||
