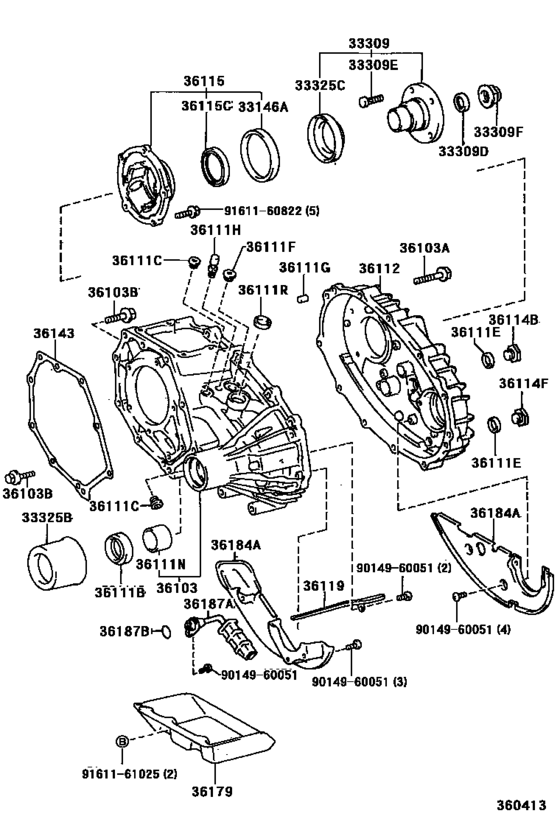

Transfer Case & Extension Housing ([08.1998 - ] (9808- )LH166,176) Diagram Toyota HIACE
- Year
- 1998 - 2004
- Sales region
- Europe
- Frame
- LH166
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 5L
- DESTINATION
- CIS
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1998
- To
- 08.2004
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33146A
|
33146A
33146-28020 Deflector, Transfer Extension Housing Dust[08.1998 - 07.1999] LH166,176 |
33146-28020 |
US $5.82 |
||
|
33309
|
33309
33309-28021 Flange Sub-Assy, Transfer Output Shaft Companion[08.1998 - 07.1999] LH166,176 |
33309-28021 |
US $192.96 |
||
|
33309D
|
33309D
90312-23001 Seal, Oil(For Transfer Output Shaft Companion Flange)[08.1998 - 07.1999] LH166,176 |
90312-23001 |
from US $1.92 |
||
|
33309E
|
33309E
90114-10017 Bolt (For Transfer Output Shaft Companion Flange)[08.1998 - 07.1999] LH166,176 |
90114-10017 |
US $2.56 |
||
|
33309E
|
33309E
90114-10061 Bolt (For Transfer Output Shaft Companion Flange)[01.2000 - 08.2004] LH166,176 |
90114-10061 |
from US $1.60 |
||
|
33309F
|
33309F
90179-20010 Nut (For Transfer Output Shaft Companion Flange)[08.1998 - 07.1999] LH166,176 |
90179-20010 |
US $3.52 |
||
|
33325B
|
33325B
33325-28020 Deflector, Dust (For Transfer Extension Front Housing)[08.1998 - 07.1999] LH166,176 |
33325-28020 |
US $10.08 |
||
|
33325C
|
33325C
33325-28040 Deflector, Dust (For Transfer Extension Rear Housing)[08.1998 - 07.1999] LH166,176 |
33325-28040 |
US $7.13 |
||
|
36103
|
36103
36103-26020
Case Sub-Assy, Transfer
[08.1998 - 07.1999] LH166,176 |
36103-26020 |
— | ||
|
36103A
|
36103A
90119-10610 Bolt (For Transfer Case)[08.1998 - 07.1999] LH166,176 *10-1.25PX55-30 |
90119-10610 |
US $3.20 |
||
| replacement | |||||
|
36103A
|
36103A
91612-61055 Bolt (For Transfer Case)[08.1998 - 07.1999] LH166,176 *10-1.25PX55-30 |
91612-61055 |
US $2.08 |
||
|
36103A
|
36103A
91612-61055 Bolt (For Transfer Case)[07.1999 - 08.2004] LH166,176 *10-1.25PX55-30 |
91612-61055 |
US $2.08 |
||
|
36103B
|
36103B
90119-10615 Bolt (For Transfer Case & Adapter Setting)[08.1998 - 07.1999] LH166,176 *10-1.25PX47-30 |
90119-10615 |
US $2.08 |
||
|
36111B
|
36111B
90311-37003 Seal, Type T, Oil (For Transfer Output Shaft)[08.1998 - 07.1999] LH166,176 |
90311-37003 |
from US $4.64 |
||
|
36111C
|
36111C
90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)[08.1998 - 07.1999] LH166,176 |
90341-12014 |
from US $1.76 |
||
|
36111E
|
36111E
90430-18008 Gasket[08.1998 - 07.1999] LH166,176 |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
36111E
|
36111E
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1998 - 07.1999] LH166,176 |
90430-T0021 |
US $1.15 |
||
|
36111F
|
36111F
90341-14008 Plug, W/head Taper Screw, No.1[08.1998 - 07.1999] LH166,176 |
90341-14008 |
US $1.75 |
||
|
36111G
|
36111G
90250-10214 Pin, Straight(For End Plate)[08.1998 - 07.1999] LH166,176 L=14,OD=10 |
90250-10214 |
from US $1.46 |
||
|
36111H
|
36111H
90930-03085 Plug, Breather[08.1998 - 07.1999] LH166,176 |
90930-03085 |
from US $7.16 |
||
|
36111N
|
36111N
90999-73139
Bush (For Transfer Case)
[08.1998 - 07.1999] LH166,176 |
90999-73139 |
— | ||
|
36111R
|
36111R
96411-12800
Plug, Tight, No.2
[08.1998 - 07.1999] LH166,176 |
96411-12800 |
— | ||
| replacement | |||||
|
36111R
|
36111R
96411-42800 Plug, Tight, No.1[08.1998 - 07.1999] LH166,176 |
96411-42800 |
US $3.68 |
||
|
36111R
|
36111R
96411-42800 Plug, Tight, No.1[07.1999 - 08.2004] LH166,176 |
96411-42800 |
US $3.68 |
||
|
36112
|
36112
36112-26020 Case, Transfer, Rear[08.1998 - 07.1999] LH166,176 |
36112-26020 |
US $204.42 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[08.1998 - 07.1999] LH166,176 |
90341-18006 |
from US $2.76 |
||
|
36114F
|
36114F
90341-18057 Drain Plug (with Magnet)[08.1998 - 07.1999] LH166,176 |
90341-18057 |
from US $5.60 |
||
|
36115
|
36115
36105-28020 Housing, Transfer Extension[08.1998 - 07.1999] LH166,176 |
36105-28020 |
US $68.58 |
||
|
36115C
|
36115C
90311-52021 Seal, Type T Oil (For Transfer Extension Housing)[08.1998 - 07.1999] LH166,176 |
90311-52021 |
from US $6.72 |
||
|
36119
|
36119
36119-25010 Receiver, Transfer Oil, No.1[08.1998 - 07.1999] LH166,176 |
36119-25010 |
US $5.82 |
||
|
36143
|
36143
36143-28020 Gasket, Transfer Case, Front[08.1998 - 07.1999] LH166,176 |
36143-28020 |
US $5.28 |
||
|
36179
|
36179
36179-28020 Protector, Transfer Case Lower[08.1998 - 07.1999] LH166,176 |
36179-28020 |
US $66.98 |
||
| replacement | |||||
|
36179
|
36179
36179-25010 Protector, Transfer Case Lower[08.1998 - 07.1999] LH166,176 |
36179-25010 |
US $48.92 |
||
|
36179
|
36179
36179-28030 Protector, Transfer Case Lower[07.1999 - 08.2004] LH166,176 |
36179-28030 |
US $51.98 |
||
|
36184A
|
36184A
36184-26010 Separator, Transfer Oil[08.1998 - 07.1999] LH166,176 REAR CASE SIDE |
36184-26010 |
US $14.56 |
||
|
36184A
|
36184A
36184-28030 Separator, Transfer Oil[08.1998 - 07.1999] LH166,176 FRONT CASE SIDE |
36184-28030 |
US $16.02 |
||
|
36187A
|
36187A
36187-25010 Strainr, Transfer Oil, No.1[08.1998 - 07.1999] LH166,176 |
36187-25010 |
US $31.74 |
||
|
36187B
|
36187B
96721-24017 Ring, O (For Transfer Oil Strainer)[08.1998 - 07.1999] LH166,176 |
96721-24017 |
US $1.75 |
||
|
9014960051
|
9014960051
90149-60051 New Genuine Part |
90149-60051 |
US $0.87 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.50 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
