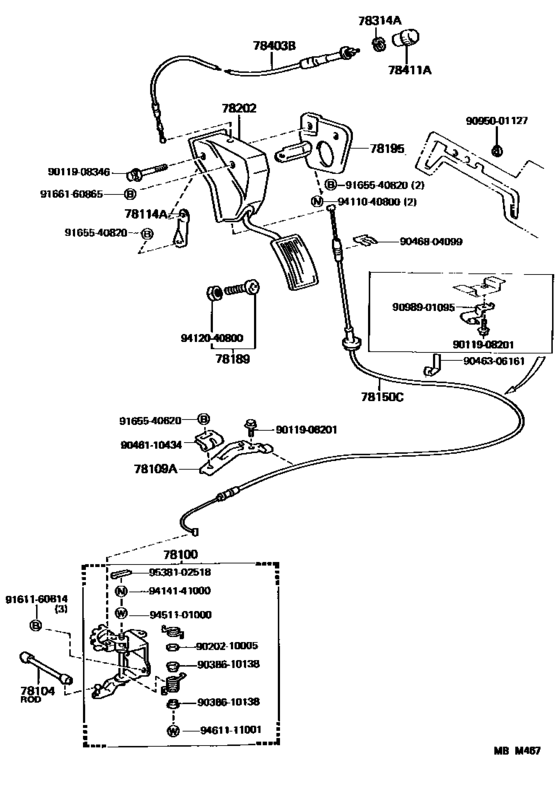

Accelerator Link ([08.1987 - 08.1989] (8708-8908)LH51,61..LHD) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- LH61
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- No.of Doors
- V5D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100
|
78100
78100-95J06 Link Assy, Accelerator[08.1987 - 08.1989] LH51,61,71..5H |
78100-95J06 |
US $51.11 |
||
|
78104
|
78104
78104-30120
Rod Sub-Assy, Accelerator Connecting, No.2
[08.1987 - 08.1989] LH51,61,71 |
78104-30120 |
— | ||
|
78109A
|
78109A
78109-95J00 Bracket Sub-Assy, Accelerator Wire Clamp[08.1987 - 08.1989] LH51,61,71 |
78109-95J00 |
US $22.57 |
||
|
78114A
|
78114A
78114-95J01 Bracket Sub-Assy, Accelerator Pedal SupportACCELERATOR PEDAL SUPPORT [08.1987 - 08.1989] LH51,61,YH51,61..LHD |
78114-95J01 |
US $4.08 |
||
|
78150C
|
78150C
78150-95J03 Wire Assy, Accelerator FlexibleACCELERATOR FLEXIBLE [08.1987 - 08.1989] LH51,61..LHD |
78150-95J03 |
US $116.48 |
||
|
78189
|
78189
78208-95J00 Bolt, Accelerator Pedal Stopper[08.1987 - 10.1996] LH51,61,71,YH5#,6#,73 |
78208-95J00 |
US $8.21 |
||
|
78195
|
78195
78014-95J00 Bracket Assy, Accelerator ControlACCELERATOR LINK [08.1987 - 08.1989] LH51,61,YH51,61..LHD |
78014-95J00 |
US $15.29 |
||
|
78202
|
78202
78202-95J01 Link, AcceleratorACCELERATOR [08.1987 - 08.1989] LH51,61,YH51,61..LHD |
78202-95J01 |
US $170.35 |
||
|
78314A
|
78314A
78314-95010 Nut, Choke[08.1987 - 08.1989] LH51,61,71 |
78314-95010 |
from US $1.88 |
||
|
78403B
|
78403B
78403-95J04 Cable Sub-Assy, Throttle ControlTHROTTLE [08.1987 - 08.1989] LH51,61..LHD |
78403-95J04 |
US $39.60 |
||
|
78411A
|
78411A
78411-22010 Knob, Throttle Cable[08.1987 - 08.1989] LH51,61,71 |
78411-22010 |
US $8.91 |
||
|
9011908201
|
9011908201
90119-08201
Bolt (for Transmission Control Cable Bracket)
|
90119-08201 |
— | ||
| replacements | |||||
|
9011908201
|
9011908201
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9011908201
|
9011908201
90119-A0310 Bolt (For Transmission Control Cable Bracket) |
90119-A0310 |
US $1.95 |
||
|
9011908346
|
9011908346
90119-08346
New Genuine Part
|
90119-08346 |
— | ||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $3.84 |
||
|
9046110434
|
9046110434
90461-10434 Clamp (For Accelerator Wire Set) |
90461-10434 |
US $3.06 |
||
|
9046306161
|
9046306161
90463-06161
New Genuine Part
|
90463-06161 |
— | ||
|
9046804099
|
9046804099
90468-04099 New Genuine Part |
90468-04099 |
US $1.22 |
||
|
9095001127
|
9095001127
90950-01127
Grommet (For Cooler Unit)
|
90950-01127 |
— | ||
|
9098901095
|
9098901095
90989-01095 New Genuine Part |
90989-01095 |
US $4.37 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9166160865
|
9166160865
91661-60865 New Genuine Part |
91661-60865 |
US $2.62 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $2.88 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.28 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
