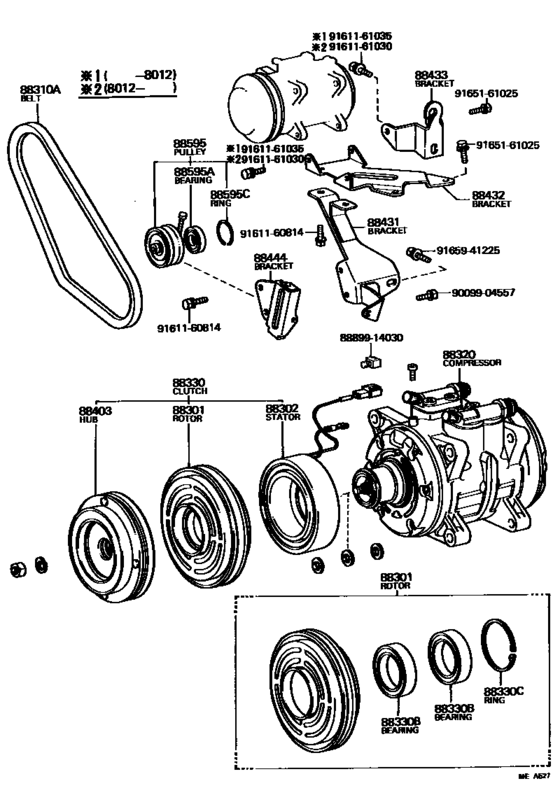

Heating & Air Conditioning - Compressor ([02.1977 - ] (7702- )RH22,32..V..ARL,GEN) Diagram Toyota HIACE
- Year
- 1977 - 1982
- Sales region
- Europe
- Frame
- RH32
- body
- V
- ENGINE
- 18R
- DESTINATION
- GEN
- Model
- HIACE
- From
- 02.1977
- To
- 11.1982
- Gear Shift Type
- 4H
- Seating Capacity
- 06S
- Vehicle Model
- Hiace
- Driver's Position
- LHD
- Building Condition
- CBU
- Truck Or Van
- V5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-26010
Rotor Sub-Assy, Magnet Clutch
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88412-26010 |
— | ||
| replacement | |||||
|
88301
|
88301
88412-22240
Rotor Sub-Assy, Magnet Clutch
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88412-22240 |
— | ||
|
88302
|
88302
88411-14020
Stator Sub-Assy, Magnet Clutch
[02.1977 - 12.1979] RH22,32..V..(ARL,GEN) |
88411-14020 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[02.1977 - 12.1979] RH22,32..V..(ARL,GEN) |
88411-14050 |
— | ||
|
88302
|
88302
88411-22030
Stator Sub-Assy, Magnet Clutch
[12.1979 - 11.1982] RH22,32..V..(ARL,GEN) |
88411-22030 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[12.1979 - 11.1982] RH22,32..V..(ARL,GEN) |
88411-14050 |
— | ||
|
88310A
|
88310A
99322-01180 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 [12.1979 - 11.1982] RH22,32..V..(ARL,GEN); RH22,32..BUS W/SINGLE COOLER |
99322-01180 |
US $21.40 |
||
| replacement | |||||
|
88310A
|
88310A
99332-01180 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 [12.1979 - 11.1982] RH22,32..V..(ARL,GEN); RH22,32..BUS W/SINGLE COOLER |
99332-01180 |
US $13.28 |
||
|
88310A
|
88310A
99522-11180
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[02.1977 - 12.1979] RH22,32..V..(ARL,GEN) |
99522-11180 |
— | ||
| replacement | |||||
|
88310A
|
88310A
99332-01180 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 [02.1977 - 12.1979] RH22,32..V..(ARL,GEN) |
99332-01180 |
US $13.28 |
||
|
88320
|
88320
88320-26050
Compressor Assy, Cooler
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88320-26050 |
— | ||
|
88330
|
88330
88410-22040 Clutch Assy, MagnetMAGNET [12.1979 - 11.1982] RH22,32..V..(ARL,GEN) |
88410-22040 |
US $502.32 |
||
| replacement | |||||
|
88330
|
88330
88410-36390
Clutch Assy, Magnet
[12.1979 - 11.1982] RH22,32..V..(ARL,GEN) |
88410-36390 |
— | ||
|
88330
|
88330
88410-26020 Clutch Assy, MagnetMAGNET [02.1977 - 12.1979] RH22,32..V..(ARL,GEN) |
88410-26020 |
US $496.50 |
||
| replacement | |||||
|
88330
|
88330
88410-36390
Clutch Assy, Magnet
[02.1977 - 12.1979] RH22,32..V..(ARL,GEN) |
88410-36390 |
— | ||
|
88330B
|
88330B
90099-10117
Bearing, Magnet Clutch
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
90099-10117 |
— | ||
| replacement | |||||
|
88330B
|
88330B
90099-10133 Bearing, Ball(For Clutch Pully)[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
90099-10133 |
US $12.15 |
||
|
88330C
|
88330C
90099-07113
Ring, Snap (For Magnet Clutch)
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
90099-07113 |
— | ||
| replacement | |||||
|
88330C
|
88330C
90099-07094
Ring, Snap (For Magnet Clutch)
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
90099-07094 |
— | ||
|
88403
|
88403
88403-22030
Hub Sub-Assy, Magnet Clutch
[12.1979 - 11.1982] RH22,32..V..(ARL,GEN) |
88403-22030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[12.1979 - 11.1982] RH22,32..V..(ARL,GEN) |
88403-12030 |
— | ||
|
88403
|
88403
88403-26020
Hub Sub-Assy, Magnet Clutch
[02.1977 - 12.1979] RH22,32..V..(ARL,GEN) |
88403-26020 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[02.1977 - 12.1979] RH22,32..V..(ARL,GEN) |
88403-12030 |
— | ||
|
88431
|
88431
88431-26080
Bracket, Compressor Mounting, No.1
[02.1977 - 12.1979] RH42; RH22,32..RHD..BUS; RH22,32..(V,WG)..(ARL,GEN,SA) |
88431-26080 |
— | ||
|
88432
|
88432
88431-26100
Bracket, Compressor Mounting, No.2
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88431-26100 |
— | ||
|
88433
|
88433
88431-26090
Bracket, Compressor Mounting, No.3
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88431-26090 |
— | ||
|
88444
|
88444
88444-26020
Bracket, Idle Pulley
[02.1977 - 11.1982] RH22,32..ARL,GEN |
88444-26020 |
— | ||
|
88595
|
88595
88440-26010
Pulley, Cooler Compressor Idle
[02.1977 - 12.1980] RH22,32..V..(ARL,GEN) |
88440-26010 |
— | ||
|
88595
|
88595
88440-26040
Pulley, Cooler Compressor Idle
[12.1980 - 11.1982] RH20,22,3#..ARL,GEN |
88440-26040 |
— | ||
|
88595A
|
88595A
90099-10090
Bearing(For Alternator Rotor)
[02.1977 - 12.1979] RH42; RH22,32..V..(ARL,GEN); RH22,32..RHD..BUS |
90099-10090 |
— | ||
| replacement | |||||
|
88595A
|
88595A
90099-10015 Bearing(For Alternator Rotor)[02.1977 - 12.1979] RH42; RH22,32..V..(ARL,GEN); RH22,32..RHD..BUS |
90099-10015 |
US $13.40 |
||
|
88595C
|
88595C
90099-07053
Ring, Snap (For Cooler Idle Pulley)
[02.1977 - 12.1979] RH42; RH22,32..V..(ARL,GEN); RH22,32..RHD..BUS |
90099-07053 |
— | ||
|
8889914030
|
8889914030
88899-14030
Cover, Evaporator
|
88899-14030 |
— | ||
|
9009904557
|
9009904557
90099-04557
New Genuine Part
|
90099-04557 |
— | ||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9165941225
|
9165941225
91659-41225
New Genuine Part
|
91659-41225 |
— | ||
