Heating & Air Conditioning - Compressor ([02.1977 - ] (7702- )RH22,32..V..ARL,GEN) Diagram Toyota HIACE
- Year
- 1977 - 1982
- Sales region
- Europe
- Frame
- RH32
- body
- V
- ENGINE
- 18R
- DESTINATION
- GEN
- Model
- HIACE
- From
- 02.1977
- To
- 11.1982
- Gear Shift Type
- 4H
- Seating Capacity
- 06S
- Vehicle Model
- Hiace
- Driver's Position
- LHD
- Building Condition
- CBU
- Truck Or Van
- V5D
Difficulties in parts search?
Difficulties in parts search?

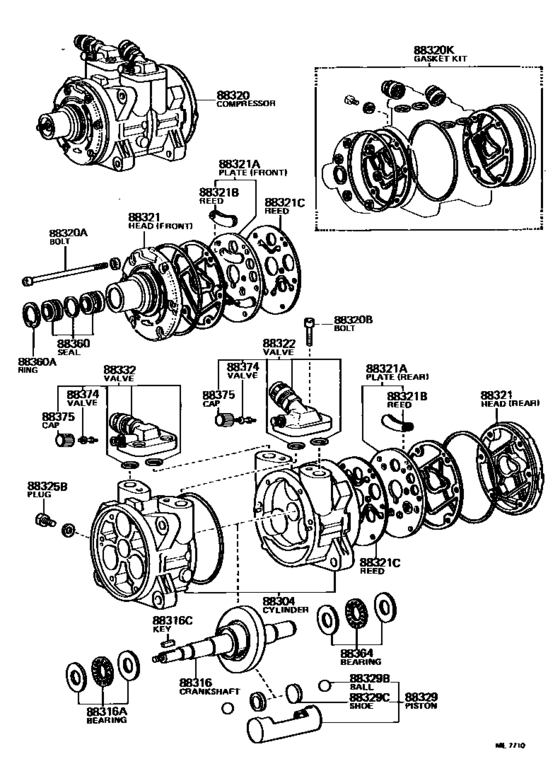

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88304
|
88304
88304-26010
Cylinder Sub-Assy, Cooler Compressor
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88304-26010 |
— | ||
|
88316
|
88316
88316-20060
Crankshaft, Cooler Compressor
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88316-20060 |
— | ||
|
88316A
|
88316A
88366-20040
Bearing, Compressor Crankshaft, Front
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88366-20040 |
— | ||
|
88316C
|
88316C
88316-20060
Crankshaft, Cooler Compressor
[02.1977 - 12.1980] RH22,32..V..(ARL,GEN) |
88316-20060 |
— | ||
|
88316C
|
88316C
90099-13011
Key, Compressor Crankshaft
[12.1980 - 11.1982] RH22,32..V..(ARL,GEN) |
90099-13011 |
— | ||
|
88320
|
88320
88320-26050
Compressor Assy, Cooler
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88320-26050 |
— | ||
|
88320A
|
88320A
90099-04906
Bolt, Through
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
90099-04906 |
— | ||
|
88320B
|
88320B
90099-04905
Bolt, Service Valve
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
90099-04905 |
— | ||
| replacement | |||||
|
88320B
|
88320B
90099-04924
Bolt, Service Valve
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
90099-04924 |
— | ||
|
88320K
|
88320K
04881-20030
Gasket Kit, Cooler Compressor Overhaul
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
04881-20030 |
— | ||
|
88321
|
88321
88321-20050
Head, Cooler Compressor Cylinder
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) FR |
88321-20050 |
— | ||
|
88321
|
88321
88322-20030
Head, Cooler Compressor Cylinder
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) RR |
88322-20030 |
— | ||
|
88321A
|
88321A
88305-22020
Plate Sub-Assy, Valve
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) FR |
88305-22020 |
— | ||
|
88321A
|
88321A
88306-22010
Plate Sub-Assy, Valve
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) RR |
88306-22010 |
— | ||
|
88321B
|
88321B
88307-30270
Reed Sub-Assy, Valve
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88307-30270 |
— | ||
|
88321C
|
88321C
88343-20030
Reed, Suction Valve
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88343-20030 |
— | ||
|
88322
|
88322
88371-30280
Valve, Cooler Compressor Suction Service
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88371-30280 |
— | ||
|
88325B
|
88325B
88339-60010
Plug, Cylinder Block Oil
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88339-60010 |
— | ||
|
88329
|
88329
88301-20040
Piston Sub-Assy, Cooler Compressor
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88301-20040 |
— | ||
|
88329B
|
88329B
88312-30250
Ball, Piston
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88312-30250 |
— | ||
|
88329C
|
88329C
88313-22010
Shoe, Piston
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88313-22010 |
— | ||
| replacement | |||||
|
88329C
|
88329C
88313-20070
Shoe, Piston
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88313-20070 |
— | ||
|
88332
|
88332
88372-20080
Valve, Cooler Compressor Discharge Service
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88372-20080 |
— | ||
|
88360
|
88360
88360-20050
Seal Assy, Cooler Compressor Shaft
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88360-20050 |
— | ||
|
88364
|
88364
88366-20040
Bearing, Compressor Crankshaft, Front
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88366-20040 |
— | ||
|
88374
|
88374
88374-12020
Valve, Service, No.1
[02.1977 - 12.1979] RH11,2#,3#,42..ARL,GEN |
88374-12020 |
— | ||
| replacement | |||||
|
88374
|
88374
88374-20020 Valve, Service, No.1[02.1977 - 12.1979] RH11,2#,3#,42..ARL,GEN |
88374-20020 |
US $5.12 |
||
|
88375
|
88375
88375-30260
Cap, Cooler Compressor Service Valve
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88375-30260 |
— | ||
| replacement | |||||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[02.1977 - 11.1982] RH22,32..V..(ARL,GEN) |
88375-30270 |
— | ||
