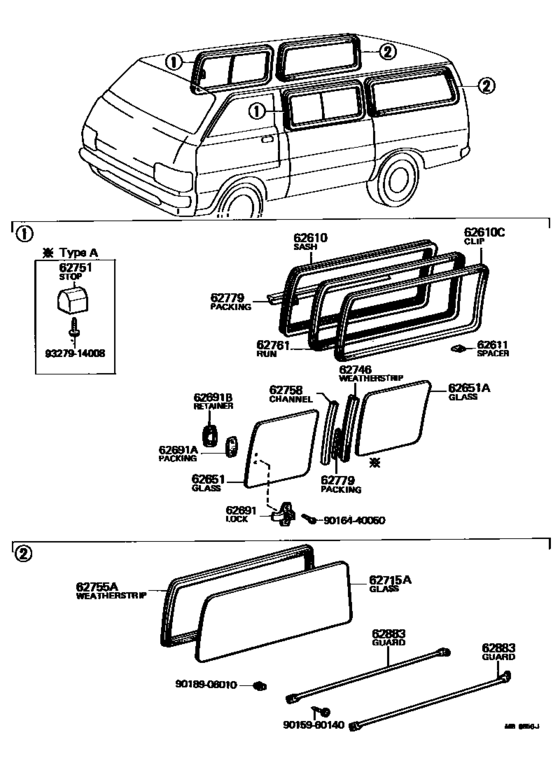

Side Window ([02.1977 - ] (7702- )LH20,30,RH20,22,3#..06S) Diagram Toyota HIACE
- Year
- 1977 - 1982
- Sales region
- Europe
- Frame
- RH32
- body
- V
- ENGINE
- 18R
- DESTINATION
- GEN
- Model
- HIACE
- From
- 02.1977
- To
- 11.1982
- Gear Shift Type
- 4H
- Seating Capacity
- 06S
- Vehicle Model
- Hiace
- Driver's Position
- LHD
- Building Condition
- CBU
- Truck Or Van
- V5D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62651
|
62651
62722-95A01 Glass, Side Window, No.1, Front (For Slide Type)[02.1977 - 12.1980] LH20,30,RH20,22,3#..RHD..06S *TEM,T=4.0,*TEM,T=4.0,LH; LH20,30,RH20,22,3#,42..RHD..(BUS,WG) *TEM,T=4.0,*TEM,T=4.0,LH; RH20..V5D..EUR;RH32..LHD..V5D;RH20..LHD..V5D..06S..GEN;LH20,30,RH22,30..LHD..V5D.. 06S *TEM,T=4.0,*TEM,T=4.0,LH |
62722-95A01 |
US $82.99 |
||
| replacement | |||||
|
62651
|
62651
62733-37020 Glass, Side Door Window, Front Lh[02.1977 - 12.1980] LH20,30,RH20,22,3#..RHD..06S *TEM,T=4.0,*TEM,T=4.0,LH; LH20,30,RH20,22,3#,42..RHD..(BUS,WG) *TEM,T=4.0,*TEM,T=4.0,LH; RH20..V5D..EUR;RH32..LHD..V5D;RH20..LHD..V5D..06S..GEN;LH20,30,RH22,30..LHD..V5D.. 06S *TEM,T=4.0,*TEM,T=4.0,LH |
62733-37020 |
US $209.66 |
||
|
62651
|
62651
62722-95A05
Glass, Side Window, No.1, Front (For Slide Type)
[12.1980 - 11.1982] LH20,30,RH20,22,3#,42..RHD..(BUS,WG) *TEM,T=3.5,LH; RH20..V5D..EUR;RH32..LHD..V5D;RH20..V5D..06S..GEN;LH20,30,RH22,30..V5D..06S *TEM,T=3.5,LH; LH20,RH20,22,3#..RHD..06S *TEM,T=3.5,LH |
62722-95A05 |
— | ||
| replacement | |||||
|
62651
|
62651
62733-37020 Glass, Side Door Window, Front Lh[12.1980 - 11.1982] LH20,30,RH20,22,3#,42..RHD..(BUS,WG) *TEM,T=3.5,LH; RH20..V5D..EUR;RH32..LHD..V5D;RH20..V5D..06S..GEN;LH20,30,RH22,30..V5D..06S *TEM,T=3.5,LH; LH20,RH20,22,3#..RHD..06S *TEM,T=3.5,LH |
62733-37020 |
US $209.66 |
||
|
62651
|
62651
62752-95A00
Glass, Side Window, No.1, Front (For Slide Type)
[02.1977 - 12.1980] LH20,30,RH20,22,3#..LHD..BUS *TEM,T=4.0,*TEM,T=4.0,RH; RH20,22,3#..RHD..V5D..06S *TEM,T=4.0,*TEM,T=4.0,RH; RH20,32..V5D..03S..EUR;LH20,30,RH20,22,3#..LHD..06S *TEM,T=4.0,*TEM,T=4.0,RH |
62752-95A00 |
— | ||
| replacement | |||||
|
62651
|
62651
62752-95A02
Glass, Side Window, No.1, Front (For Slide Type)
[02.1977 - 12.1980] LH20,30,RH20,22,3#..LHD..BUS *TEM,T=4.0,*TEM,T=4.0,RH; RH20,22,3#..RHD..V5D..06S *TEM,T=4.0,*TEM,T=4.0,RH; RH20,32..V5D..03S..EUR;LH20,30,RH20,22,3#..LHD..06S *TEM,T=4.0,*TEM,T=4.0,RH |
62752-95A02 |
— | ||
|
62651
|
62651
62752-95A02
Glass, Side Window, No.1, Front (For Slide Type)
[12.1980 - 11.1982] LH20,30,RH20,22,3#..LHD..(BUS,WG) *TEM,T=3.5,RH; RH20,32..V5D..03S..EUR;LH20,30,RH20,22,3#..LHD..06S *TEM,T=3.5,RH |
62752-95A02 |
— | ||
|
62651A
|
62651A
62723-95A00 Glass, Side Window, No.1, Rear (For Slide Type)[02.1977 - 12.1980] LH20,30,RH20,22,3#..RHD..06S *TEM,T=4.0,*TEM,T=4.0,LH; RH20..V5D..EUR;RH32..LHD..V5D;RH20..LHD..V5D..06S..GEN;LH20,30,RH22,30..LHD..V5D.. 06S *TEM,T=4.0,*TEM,T=4.0,LH |
62723-95A00 |
US $75.71 |
||
| replacement | |||||
|
62651A
|
62651A
62723-95A06
Glass, Side Door Window, Rear Lh
[02.1977 - 12.1980] LH20,30,RH20,22,3#..RHD..06S *TEM,T=4.0,*TEM,T=4.0,LH; RH20..V5D..EUR;RH32..LHD..V5D;RH20..LHD..V5D..06S..GEN;LH20,30,RH22,30..LHD..V5D.. 06S *TEM,T=4.0,*TEM,T=4.0,LH |
62723-95A06 |
— | ||
|
62651A
|
62651A
62723-95A06
Glass, Side Door Window, Rear Lh
[12.1980 - 11.1982] RH20..V5D..EUR;RH32..LHD..V5D;RH20..V5D..06S..GEN;LH20,30,RH22,30..V5D..06S *TEM,T=3.5,LH; LH20,RH20,22,3#..RHD..06S *TEM,T=3.5,LH |
62723-95A06 |
— | ||
|
62651A
|
62651A
62753-95A00 Glass, Side Window, No.1, Rear (For Slide Type)SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE) [02.1977 - 12.1980] RH20,22,3#..RHD..V5D..06S *TEM,T=4.0,*TEM,T=4.0,RH; RH20,32..V5D..03S..EUR;LH20,30,RH20,22,3#..LHD..06S *TEM,T=4.0,*TEM,T=4.0,RH |
62753-95A00 |
US $75.71 |
||
| replacement | |||||
|
62651A
|
62651A
62753-95A06
Glass, Side Window, No.1, Rear (For Slide Type)
[02.1977 - 12.1980] RH20,22,3#..RHD..V5D..06S *TEM,T=4.0,*TEM,T=4.0,RH; RH20,32..V5D..03S..EUR;LH20,30,RH20,22,3#..LHD..06S *TEM,T=4.0,*TEM,T=4.0,RH |
62753-95A06 |
— | ||
|
62651A
|
62651A
62753-95A04
Glass, Side Window, No.1, Rear (For Slide Type)
[12.1980 - 11.1982] RH20,32..V5D..03S..EUR;LH20,30,RH20,22,3#..LHD..06S *TEM,T=3.5,RH |
62753-95A04 |
— | ||
|
62715A
|
62715A
62732-95A04 Glass, Side Window, No.2(For Fixed Type)[02.1977 - 12.1980] LH30,RH3#..06S *TEM,T=4.0,*TEM,T=4.0,RH |
62732-95A04 |
US $232.96 |
||
| replacement | |||||
|
62715A
|
62715A
62732-95A12
Glass, Side Window, No.2(For Fixed Type)
[02.1977 - 12.1980] LH30,RH3#..06S *TEM,T=4.0,*TEM,T=4.0,RH |
62732-95A12 |
— | ||
|
62715A
|
62715A
62732-95A12
Glass, Side Window, No.2(For Fixed Type)
[12.1980 - 11.1982] LH30,RH3#..06S *TEM,T=3.5,RH |
62732-95A12 |
— | ||
|
62715A
|
62715A
62742-95A04 Glass, Side Window, No.2(For Fixed Type)[02.1977 - 12.1980] LH30,RH3#..06S *TEM,T=4.0,*TEM,T=4.0,LH |
62742-95A04 |
US $232.96 |
||
| replacement | |||||
|
62715A
|
62715A
62742-95A13
Glass, Side Window, No.2(For Fixed Type)
[02.1977 - 12.1980] LH30,RH3#..06S *TEM,T=4.0,*TEM,T=4.0,LH |
62742-95A13 |
— | ||
|
62715A
|
62715A
62742-95A13
Glass, Side Window, No.2(For Fixed Type)
[12.1980 - 11.1982] LH30,RH3#..06S *TEM,T=3.5,LH |
62742-95A13 |
— | ||
|
62746
|
62746
62773-95A00
Weatherstrip, Side Window Glass Channel, No.1
[02.1977 - 02.1981] LH20,30,RH20,22,3#..06S; LH20,30,RH20,22,3#,42..BUS,WG; RH20,32..V5D..03S..EUR |
62773-95A00 |
— | ||
|
62746
|
62746
62773-95A02
Weatherstrip, Side Window Glass Channel, No.1
[02.1981 - 11.1982] LH20,30,RH20,22,3#..06S; LH20,30,RH20,22,3#,42..BUS,WG; RH20,32..V5D..03S..EUR |
62773-95A02 |
— | ||
|
62755A
|
62755A
62778-95A01
Weatherstrip, Side Window, No.2(For Fixed Type)
[02.1977 - 12.1980] LH30,RH3#..06S |
62778-95A01 |
— | ||
|
62755A
|
62755A
62778-95A03 Weatherstrip, Side Window, No.2(For Fixed Type)[12.1980 - 11.1982] LH30,RH3#..06S |
62778-95A03 |
US $158.70 |
||
|
62758
|
62758
62774-95A00 Channel, Side Window Glass[02.1977 - 11.1982] LH20,30,RH20,22,3#..06S; LH20,30,RH20,22,3#,42..BUS,WG; RH20,32..V5D..03S..EUR |
62774-95A00 |
US $13.10 |
||
|
62779
|
62779
62755-95A00 Packing, Side Front Window, Lower[12.1977 - 11.1982] LH20,30,RH20,22,3#..06S LWR; LH20,30,RH20,22,3#..BUS,WG LWR; RH20,32..V5D..03S..EUR LWR |
62755-95A00 |
US $9.03 |
||
|
62779
|
62779
62757-95A00
Packing, Side Window
[12.1979 - 11.1982] LH20,30,RH20,22,3#..06S CTR; LH20,30,RH20,22,3#,42..BUS,WG CTR; RH20,32..V5D..03S..EUR CTR |
62757-95A00 |
— | ||
|
62883
|
62883
62894-95A01 Guard Assy, Side Window[02.1977 - 11.1982] LH30,RH3#..06S RH |
62894-95A01 |
US $34.94 |
||
|
62883
|
62883
62895-95A01 Guard Assy, Side Window[02.1977 - 11.1982] LH30,RH3#..06S LH |
62895-95A01 |
US $37.13 |
||
|
9015960140
|
9015960140
90159-60140 New Genuine Part |
90159-60140 |
US $1.89 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
from US $0.88 |
||
|
9018906010
|
9018906010
90189-06010 Clip(For Front Door Inside Handle) |
90189-06010 |
from US $1.29 |
||
|
9327914008
|
9327914008
93279-14008
New Genuine Part
|
93279-14008 |
— | ||
