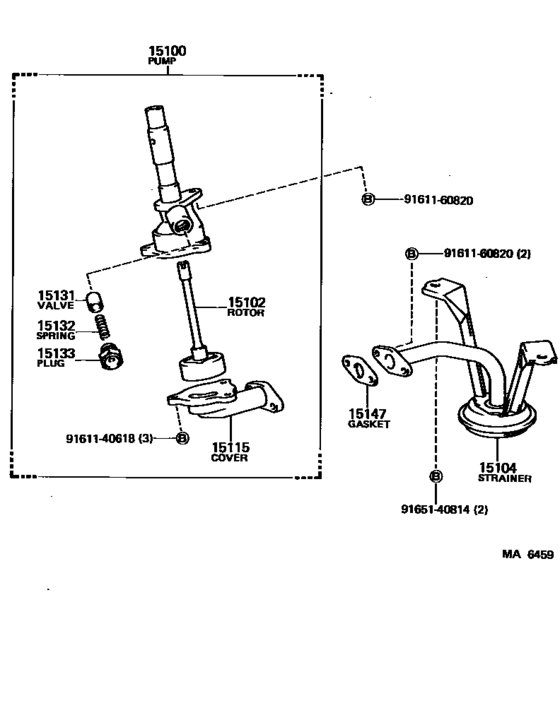

Engine Oil Pump ([12.1982 - ] (8212- )2Y,3Y#) Diagram Toyota HIACE
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15110-71010 Pump Assy, Oil[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
15110-71010 |
from US $89.54 |
||
|
15102
|
15102
15102-71010 Rotor Set, Oil Pump[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
15102-71010 |
US $72.80 |
||
|
15104
|
15104
15104-71010 Strainer Sub-Assy, Oil[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
15104-71010 |
US $50.38 |
||
|
15115
|
15115
15115-71015 Cover, Oil Pump[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
15115-71015 |
US $21.55 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
15131-24010 |
from US $4.19 |
||
|
15132
|
15132
15132-40010 Spring, Oil Pump Relief Valve[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
15132-40010 |
US $5.12 |
||
|
15133
|
15133
15133-24010 Plug, Oil Pump Relief Valve[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
15133-24010 |
US $6.12 |
||
|
15147
|
15147
15147-38020 Gasket(For Oil Strainer)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
15147-38020 |
US $1.28 |
||
|
9161140618
|
9161140618
91611-40618
Bolt(For Oil Receiver Pipe)
|
91611-40618 |
— | ||
| replacement | |||||
|
9161140618
|
9161140618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $1.92 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
