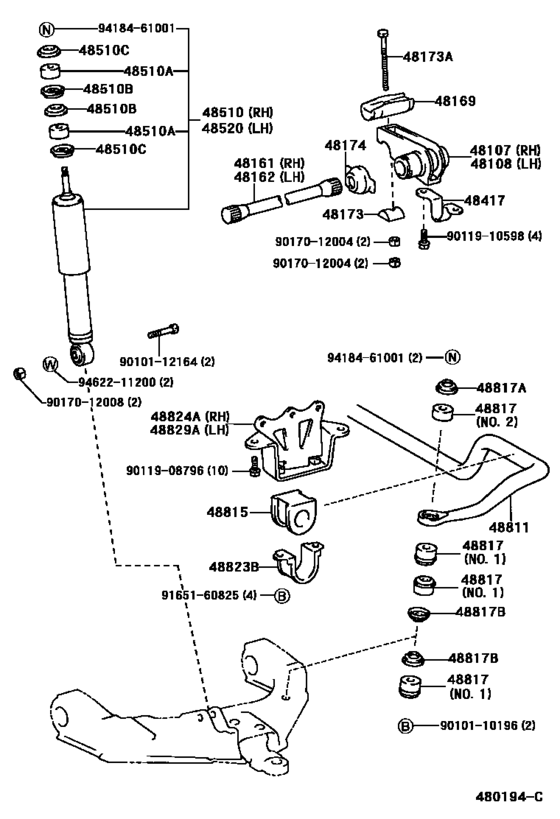

Front Spring & Shock Absorber ([04.1997 - ] (9704- )KCH46,LXH49,RCH47) Diagram Toyota HIACE REGIUS
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- KCH46
- grade
- WISTD
- body
- WG
- ENGINE
- 1KZTE
- TRANSMISSION
- ATM
- Model
- HIACE REGIUS
- From
- 07.1999
- To
- 05.2002
- No.of Doors
- 4D
- Seating Capacity
- W08S
- Vehicle Model
- Hiace Regius
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48107
|
48107
48107-26080 Arm Sub-Assy, Anchor, Rh[04.1997 -] KCH4#,LXH4#,RCH4# |
48107-26080 |
US $57.30 |
||
|
48108
|
48108
48108-26090 Arm Sub-Assy, Anchor, Lh[04.1997 -] KCH46,LXH49,RCH47 |
48108-26090 |
US $68.14 |
||
|
48161
|
48161
48161-26330 Spring, Torsion Bar, Rh[07.1999 -] KCH46 |
48161-26330 |
US $147.06 |
||
|
48162
|
48162
48162-26420 Spring, Torsion Bar, Lh[07.1999 -] KCH46 |
48162-26420 |
US $144.14 |
||
|
48169
|
48169
48169-26060 Swivel, Anchor Arm[04.1997 -] KCH4#,LXH4#,RCH4# |
48169-26060 |
US $16.11 |
||
|
48173
|
48173
48173-27010 Seat, Anchor Arm Adjuster[04.1997 -] KCH4#,LXH4#,RCH4# |
48173-27010 |
US $7.04 |
||
|
48173A
|
48173A
90101-12165 Bolt, Hexagon(For Anchor Arm Adjusting)[04.1997 -] KCH4#,LXH4#,RCH4# |
90101-12165 |
from US $5.13 |
||
|
48174
|
48174
48174-26010 Cover, Torsion Bar Dust[04.1997 -] KCH4#,LXH4#,RCH4# |
48174-26010 |
US $10.08 |
||
|
48417
|
48417
48417-26030 Bracket, Spring[04.1997 -] KCH4#,LXH4#,RCH4# |
48417-26030 |
US $9.03 |
||
|
48510
|
48510
48511-80045 Absorber Assy, Shock, Front Rh[07.1999 -] KCH46,RCH47..W08S マーク ４８５１１−２６４７０ |
48511-80045 |
US $128.76 |
||
|
48510A
|
48510A
90948-01031 Cushion, Shock Absorber[04.1997 -] KCH4#,LXH4#,RCH4# |
90948-01031 |
from US $1.66 |
||
|
48510B
|
48510B
90948-02017 Retainer, Cushion, No.1(For Front Shock Absorber)[04.1997 -] KCH4#,LXH4#,RCH4# |
90948-02017 |
US $5.12 |
||
|
48510C
|
48510C
90948-02002 Retainer, Steering Damper Cushion[04.1997 -] KCH4#,LXH4#,RCH4# |
90948-02002 |
from US $1.35 |
||
|
48520
|
48520
48511-80045 Absorber Assy, Shock, Front Rh[07.1999 -] KCH46,RCH47..W08S マーク ４８５１１−２６４７０ |
48511-80045 |
US $128.76 |
||
|
48811
|
48811
48811-26351 Bar, Stabilizer, Front[04.1998 -] KCH46,RCH47 |
48811-26351 |
US $221.31 |
||
|
48815
|
48815
48815-26310 Bush, Front Stabilizer Bar, No.1[04.1997 -] KCH46,RCH47 |
48815-26310 |
US $16.57 |
||
|
48817
|
48817
48817-26010 Cushion, Front Stabilizer[04.1997 -] KCH46,LXH49,RCH47 ＮＯ．１ |
48817-26010 |
US $8.16 |
||
|
48817
|
48817
90948-01061 Cushion, Front Stabilizer[04.1997 -] KCH46,LXH49,RCH47 ＮＯ．２ |
90948-01061 |
from US $3.20 |
||
|
48817A
|
48817A
90948-02004 Cushion Retainer[04.1997 -] KCH46,LXH49,RCH47 |
90948-02004 |
from US $1.52 |
||
|
48817B
|
48817B
90948-02005 Retainer No.2[04.1997 -] KCH46,LXH49,RCH47 |
90948-02005 |
from US $1.31 |
||
|
48823B
|
48823B
48823-26140 Cover, Front Stabilizer Bracket[04.1997 -] KCH46,LXH49,RCH47 |
48823-26140 |
from US $9.32 |
||
|
48824A
|
48824A
48824-26200
Bracket, Front Stabilizer, No.1 Rh
[04.1997 -] KCH46,LXH49,RCH47 |
48824-26200 |
— | ||
|
48829A
|
48829A
48829-26140 Bracket, Front Stabilizer, No.1 Lh[04.1997 -] KCH46,LXH49,RCH47 |
48829-26140 |
US $60.45 |
||
|
9010110196
|
9010110196
90101-10196 Bolt(For Front Stabilizer) |
90101-10196 |
US $4.96 |
||
|
9010112164
|
9010112164
90101-12164 BOLT HEXAGON |
90101-12164 |
US $4.96 |
||
|
9011908796
|
9011908796
90119-08796
New Genuine Part
|
90119-08796 |
— | ||
|
9011910598
|
9011910598
90119-10598 New Genuine Part |
90119-10598 |
US $2.48 |
||
|
9017012004
|
9017012004
90170-12004 NUT |
90170-12004 |
from US $1.23 |
||
|
9017012008
|
9017012008
90170-12008 NUT |
90170-12008 |
from US $1.40 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.78 |
||
|
9462211200
|
9462211200
94622-11200 WASHER |
94622-11200 |
US $3.20 |
||
