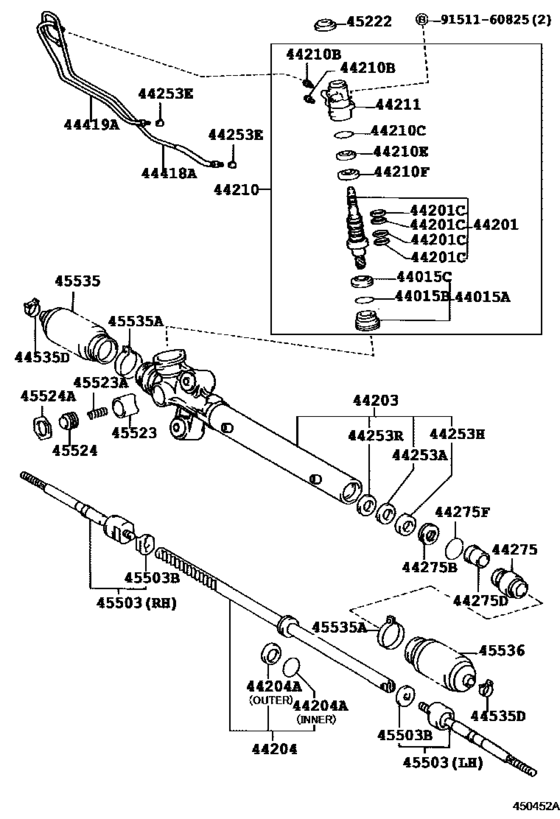

Front Steering Gear & Link ([04.1997 - ] (9704- )KCH40,LXH43,RCH41,42) Diagram Toyota HIACE REGIUS
- Year
- 1997 - 1999
- Sales region
- Japan
- Frame
- RCH42
- grade
- STD
- body
- VAN
- ENGINE
- 1RZE
- TRANSMISSION
- MTM
- Model
- HIACE REGIUS
- From
- 06.1997
- To
- 07.1999
- No.of Doors
- 5D
- Vehicle Model
- Hiace Regius
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44015A
|
44015A
44015-22020 Nut Sub-Assy, Bearing Guide[04.1997 -] KCH4#,LXH4#,RCH4# |
44015-22020 |
US $96.10 |
||
|
44015B
|
44015B
90301-43002 Ring, O(For Bearing Guide Nut)[04.1997 -] KCH4#,LXH4#,RCH4# |
90301-43002 |
from US $3.84 |
||
|
44015C
|
44015C
90310-25004 Seal, Oil(For Bearing Guide Nut)[04.1997 -] KCH4#,LXH4#,RCH4# |
90310-25004 |
from US $2.88 |
||
|
44201
|
44201
44201-26120 Valve Sub-Assy, Power Steering Control[06.1997 - 03.1999] LXH43,RCH42 |
44201-26120 |
US $294.11 |
||
|
44201
|
44201
44201-26121 Valve Sub-Assy, Power Steering Control[03.1999 -] LXH43,RCH42 |
44201-26121 |
US $294.11 |
||
|
44201C
|
44201C
90562-33007 Ring(For Power Steering Control Valve)[04.1997 -] KCH4#,LXH4#,RCH4# |
90562-33007 |
US $1.76 |
||
|
44203
|
44203
44203-26230 Housing Sub-Assy, Power Steering Rack[06.1997 - 07.1999] LXH43,RCH42 |
44203-26230 |
US $546 |
||
|
44204
|
44204
44204-26180 Rack Sub-Assy, Power Steering[04.1997 -] KCH40,LXH43,RCH41,42 |
44204-26180 |
US $221.31 |
||
|
44204A
|
44204A
90301-41007 Ring(For Rack Steering Piston)[04.1997 -] KCH4#,LXH4#,RCH4# 内側 |
90301-41007 |
US $1.89 |
||
|
44204A
|
44204A
90562-45001 Ring(For Rack Steering Piston)[04.1997 -] KCH4#,LXH4#,RCH4# 外側 |
90562-45001 |
US $1.60 |
||
|
44210
|
44210
44210-26140 Valve Assy, Power Steering Control[06.1997 -] LXH43,RCH42 |
44210-26140 |
US $563.47 |
||
|
44210B
|
44210B
90410-06005 Seat, Union(Pressure Control Valve Assy)[04.1997 -] KCH4#,LXH4#,RCH4# |
90410-06005 |
US $2.56 |
||
|
44210C
|
44210C
90301-51001 Ring, O(For Adjuster Plug)[04.1997 -] KCH4#,LXH4#,RCH4# |
90301-51001 |
from US $2.77 |
||
|
44210E
|
44210E
90311-19002 Seal, Oil(For Adjuster Plug)[04.1997 -] KCH4#,LXH4#,RCH4# |
90311-19002 |
from US $3.04 |
||
|
44210F
|
44210F
90363-19003 Bearing(For Rear Steering Control Valve Housing)[04.1997 -] KCH4#,LXH4#,RCH4# |
90363-19003 |
US $18.85 |
||
|
44211
|
44211
44211-26060 Housing, Control Valve[04.1997 - 03.1999] KCH40,LXH43,RCH41,42 |
44211-26060 |
US $193.65 |
||
| replacement | |||||
|
44211
|
44211
44211-43010 Housing, Control Valve[04.1997 - 03.1999] KCH40,LXH43,RCH41,42 |
44211-43010 |
US $192.19 |
||
|
44211
|
44211
44211-27020 Housing, Control Valve[03.1999 -] KCH40,LXH43,RCH41,42 |
44211-27020 |
US $195.10 |
||
|
44253A
|
44253A
90310-30012 Seal, Oil(For Power Steering Rack Housing)[04.1997 -] KCH4#,LXH4#,RCH4# |
90310-30012 |
from US $3.20 |
||
|
44253E
|
44253E
90410-04002 Seat, Union(For Power Steering Rack Housing)[04.1997 -] KCH40,LXH43,RCH41,42 |
90410-04002 |
US $2.72 |
||
|
44253H
|
44253H
90364-13003 Bearing(For Power Steering Control Valve Lower)[04.1997 -] KCH4#,LXH4#,RCH4# |
90364-13003 |
from US $8.04 |
||
|
44253R
|
44253R
90560-30011 Spacer(For Power Steering Rack Housing)[04.1997 -] KCH4#,LXH4#,RCH4# |
90560-30011 |
US $3.35 |
||
|
44275
|
44275
44275-26040 Stopper, Cylinder End[04.1997 -] KCH4#,LXH4#,RCH4# |
44275-26040 |
US $27.37 |
||
|
44275B
|
44275B
90310-30012 Seal, Oil(For Power Steering Rack Housing)[04.1997 -] KCH4#,LXH4#,RCH4# |
90310-30012 |
from US $3.20 |
||
|
44275D
|
44275D
90386-30001 Bush(For Power Steering Cylinder Tube)[04.1997 -] KCH4#,LXH4#,RCH4# |
90386-30001 |
from US $0.96 |
||
|
44275F
|
44275F
90301-43007 Ring, O(For Cylinder End Stopper)[04.1997 -] KCH4#,LXH4#,RCH4# |
90301-43007 |
US $1.22 |
||
|
44418A
|
44418A
44418-26180 Tube, Steering Right Turn Pressure[04.1997 -] KCH40,LXH43,RCH41,42 |
44418-26180 |
US $23.30 |
||
|
44419A
|
44419A
44419-26190 Tube, Steering Left Turn Pressure[04.1997 -] KCH40,LXH43,RCH41,42 |
44419-26190 |
US $19.66 |
||
|
44535D
|
44535D
90467-19018
Clip(For Power Steering Rack Boot)
[04.1997 - 04.2002] KCH4#,LXH4#,RCH4# |
90467-19018 |
— | ||
| replacement | |||||
|
44535D
|
44535D
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.1997 - 04.2002] KCH4#,LXH4#,RCH4# |
90467-19021 |
from US $1.54 |
||
|
45222
|
45222
45222-32010 Cover, Dust(For Power Steering Gear)[04.1997 - 04.2002] KCH4#,LXH4#,RCH4# |
45222-32010 |
from US $5.48 |
||
|
45503
|
45503
45503-29565 End Sub-Assy, Steering Rack[04.1997 -] KCH40,LXH43,RCH41,42 |
45503-29565 |
from US $112.48 |
||
|
45503B
|
45503B
90214-14005 Washer, Claw(For Power Steering Rack End)[04.1997 -] KCH4#,LXH4#,RCH4# 外径＝４１ |
90214-14005 |
US $3.52 |
||
|
45523
|
45523
45504-28020 Guide, Rack(For Steering Gear)[04.1997 -] KCH4#,LXH4#,RCH4# |
45504-28020 |
US $24.45 |
||
|
45523A
|
45523A
90501-28026 Spring(For Steering Gear Rack Guide)[04.1997 - 07.1999] KCH40,LXH43,RCH41,42 |
90501-28026 |
US $1.89 |
||
|
45524
|
45524
45524-28020 Cap, Steering Rack Guide Spring[04.1997 -] KCH4#,LXH4#,RCH4# |
45524-28020 |
US $10.48 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[04.1997 -] KCH4#,LXH4#,RCH4# |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-26030 Boot, Steering Rack, No.1[04.1997 -] KCH4#,LXH4#,RCH4# |
45535-26030 |
from US $18.58 |
||
|
45535A
|
45535A
90460-55016 Clamp(For Power Steering Rack Boot)[04.1997 -] KCH4#,LXH4#,RCH4# |
90460-55016 |
from US $3.84 |
||
|
45536
|
45536
45535-26030 Boot, Steering Rack, No.1[04.1997 -] KCH4#,LXH4#,RCH4# |
45535-26030 |
from US $18.58 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
