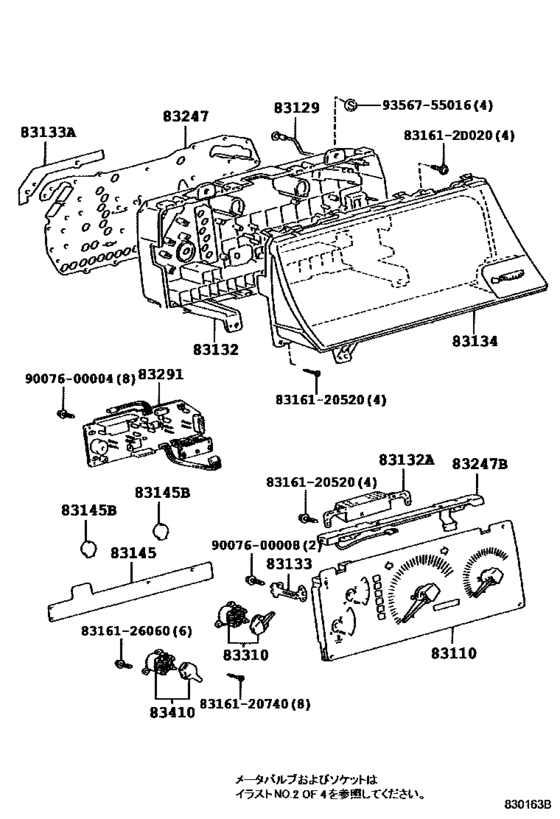

Meter ([04.1997 - ] ｵﾌﾟﾃｨﾄﾛﾝﾒ-ﾀ (9704- )) Diagram Toyota HIACE REGIUS
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- RCH47
- grade
- V
- body
- WG
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HIACE REGIUS
- From
- 07.1999
- To
- 05.2002
- No.of Doors
- 4D
- Seating Capacity
- W08S
- Vehicle Model
- Hiace Regius
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83110
|
83110
83220-26120 Speedometer Assy[04.1997 -] LXH4#..G;KCH4#,RCH41,47..STD,V,WINT,WISTD |
83220-26120 |
US $397.49 |
||
|
83110
|
83110
83220-26210 Speedometer Assy[04.1998 -] RCH41,47..G,STD,V ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83220-26210 |
US $1,121.12 |
||
|
83129
|
83129
83875-26510 Wire, Meter[05.1998 -] KCH4#,RCH41,47..G,STD,V |
83875-26510 |
US $3.49 |
||
|
83132
|
83132
83841-26510 Case, Combination Meter[05.1998 -] RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83841-26510 |
US $28.10 |
||
|
83132
|
83132
83841-26600 Case, Combination Meter[05.1998 -] LXH4#..G;KCH4#,RCH41,47..STD,V,WINT,WISTD |
83841-26600 |
US $27.81 |
||
|
83132A
|
83132A
83842-26510
Case, Meter
[05.1998 -] RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT |
83842-26510 |
— | ||
|
83133
|
83133
83811-26510 Plate, Combination Meter, No.1[05.1998 -] RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT |
83811-26510 |
US $6.70 |
||
|
83133A
|
83133A
83812-26510 Plate, Combination Meter, No.2[05.1998 -] KCH4#,RCH41,47..G,STD,V |
83812-26510 |
US $7.28 |
||
|
83134
|
83134
83821-26300 Cover, Combination Meter, No.1[05.1998 - 10.1999] LXH4#..ATM;KCH46..E,STD,WINT;KCH40,RCH4#..ATM..(E,STD,V,WINT,WISTD) |
83821-26300 |
US $74.26 |
||
|
83134
|
83134
83821-26680 Cover, Combination Meter, No.1[05.1998 -] KCH4#,RCH41,47..G,STD,V ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83821-26680 |
US $80.08 |
||
|
83134
|
83134
83822-26300 Cover, Combination Meter, No.1[10.1999 - 12.1999] LXH4#..ATM;KCH4#,RCH42,47..STD,V,WISTD |
83822-26300 |
US $29.12 |
||
|
83145
|
83145
83831-26600 Lens, Meter, No.1[05.1998 -] KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
83831-26600 |
US $9.03 |
||
|
83145B
|
83145B
83833-26010 Lens, Meter, No.1[05.1998 -] KCH4#,LXH4#,RCH4# |
83833-26010 |
from US $3.06 |
||
|
83247
|
83247
83861-26801 Plate, Meter Circuit[07.1999 -] RCH41,47..V,WISTD |
83861-26801 |
US $58.24 |
||
|
83247
|
83247
83861-2F180 Plate, Meter Circuit[07.1999 -] RCH41,47..G,V ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83861-2F180 |
US $58.24 |
||
|
83247B
|
83247B
83862-26680 Plate, Meter Circuit, No.2[05.1998 -] RCH41..5D;RCH41..(G,V)..W08S;KCH4#,RCH47..(G,V)..(W07S,W08S) |
83862-26680 |
US $51.83 |
||
|
83291
|
83291
83291-26151 Computer, Combination Meter[07.1999 -] RCH41,47..G,V |
83291-26151 |
US $559.10 |
||
|
83291
|
83291
83291-26171 Computer, Combination Meter[07.1999 -] RCH41,47..(G,V)..W08S ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
83291-26171 |
US $559.10 |
||
|
83310
|
83310
83882-26510 Gage Assy, Fuel Receiver[05.1998 -] RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT |
83882-26510 |
US $72.22 |
||
|
83410
|
83410
83883-26510 Gage Assy, Water Temperature Receiver[05.1998 -] RCH41,47..G,STD,V;KCH4#..E,G,STD,V,WINT |
83883-26510 |
US $72.22 |
||
|
831612D020
|
831612D020
83161-2D020 Case, Combination Meter Mirror, No.1 |
83161-2D020 |
US $0.87 |
||
|
8316120520
|
8316120520
83161-20520 Case, Combination Meter Mirror, No.1 |
83161-20520 |
US $1.02 |
||
|
8316120740
|
8316120740
83161-20740 Case, Combination Meter Mirror, No.1 |
83161-20740 |
US $1.75 |
||
|
8316126060
|
8316126060
83161-26060 Case, Combination Meter Mirror, No.1 |
83161-26060 |
US $1.16 |
||
|
9007600004
|
9007600004
90076-00004 New Genuine Part |
90076-00004 |
US $0.73 |
||
|
9007600008
|
9007600008
90076-00008 New Genuine Part |
90076-00008 |
US $0.73 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
