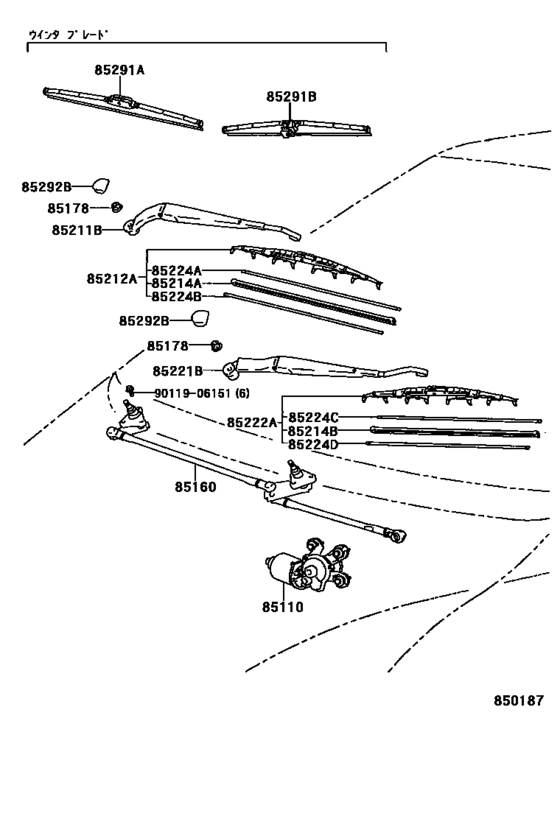

Windshield Wiper ([04.1997 - ] (9704- )) Diagram Toyota HIACE REGIUS
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- RCH47
- grade
- V
- body
- WG
- ENGINE
- 3RZFE
- TRANSMISSION
- ATM
- Model
- HIACE REGIUS
- From
- 07.1999
- To
- 05.2002
- No.of Doors
- 4D
- Seating Capacity
- W08S
- Vehicle Model
- Hiace Regius
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-26110
Motor Assy, Windshield Wiper
[04.1997 -] KCH4#,LXH4#,RCH4# |
85110-26110 |
— | ||
|
85110
|
85110
85110-26120 Motor Assy, Windshield Wiper[04.1998 -] KCH4#,LXH4#,RCH4# ｶﾝﾚｲﾁ ｼﾖｳ |
85110-26120 |
US $387.30 |
||
|
85160
|
85160
85150-26130
Link Assy, Windshield Wiper
[04.1997 -] KCH4#,LXH4#,RCH4# |
85150-26130 |
— | ||
|
85178
|
85178
90179-08113 Nut (For Front Wiper Arm Setting)[04.1997 -] KCH4#,LXH4#,RCH4# |
90179-08113 |
from US $1.92 |
||
|
85211B
|
85211B
85211-26062
Arm, Front Wiper, Rh
[04.1998 -] KCH4#,LXH4#,RCH4# |
85211-26062 |
— | ||
|
85212A
|
85212A
85212-26100 Blade, Fr Wiper, Rh[04.1998 -] KCH4#,LXH4#,RCH4# |
85212-26100 |
US $71.93 |
||
| replacement | |||||
|
85212A
|
85212A
85212-68010 Blade, Fr Wiper, Rh[04.1998 -] KCH4#,LXH4#,RCH4# |
85212-68010 |
US $65.21 |
||
|
85214A
|
85214A
85214-44070
Rubber, Wiper, Rh
[04.1998 - 06.2001] KCH4#,LXH4#,RCH4# |
85214-44070 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-44140 Rubber, Wiper, Rh[04.1998 - 06.2001] KCH4#,LXH4#,RCH4# |
85214-44140 |
from US $14.22 |
||
|
85214A
|
85214A
85214-44130 Rubber, Wiper, Rh[06.2001 -] KCH4#,LXH4#,RCH4# |
85214-44130 |
US $14.41 |
||
| replacement | |||||
|
85214A
|
85214A
85214-44140 Rubber, Wiper, Rh[06.2001 -] KCH4#,LXH4#,RCH4# |
85214-44140 |
from US $14.22 |
||
|
85214B
|
85214B
85214-35030
Rubber, Wiper, Rh
[04.1997 -] KCH4#,LXH4#,RCH4# |
85214-35030 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-46011 Rubber, Wiper, Lh[04.1997 -] KCH4#,LXH4#,RCH4# |
85214-46011 |
from US $9.54 |
||
|
85221B
|
85221B
85221-26052 Arm, Front Wiper, Lh[04.1998 -] KCH4#,LXH4#,RCH4# |
85221-26052 |
US $82.99 |
||
|
85222A
|
85222A
85222-26080 Blade, Fr Wiper, Lh[04.1997 -] KCH4#,LXH4#,RCH4# |
85222-26080 |
US $36.55 |
||
| replacement | |||||
|
85222A
|
85222A
85222-46011 Blade, Fr Wiper, Lh[04.1997 -] KCH4#,LXH4#,RCH4# |
85222-46011 |
US $38.15 |
||
|
85224A
|
85224A
85224-44060 Plate, Wiper Rubber Backing, No.1[04.1998 -] KCH4#,LXH4#,RCH4# |
85224-44060 |
US $6.41 |
||
|
85224B
|
85224B
85224-44060 Plate, Wiper Rubber Backing, No.1[04.1998 -] KCH4#,LXH4#,RCH4# |
85224-44060 |
US $6.41 |
||
|
85224C
|
85224C
85224-60100 Plate, Wiper Rubber Backing, No.3[04.1997 -] KCH4#,LXH4#,RCH4# |
85224-60100 |
US $4.22 |
||
|
85224D
|
85224D
85224-60100 Plate, Wiper Rubber Backing, No.3[04.1997 -] KCH4#,LXH4#,RCH4# |
85224-60100 |
US $4.22 |
||
|
85291A
|
85291A
85291-26080 Blade, Front Wiper, Winter, Rh[04.1998 -] KCH4#,LXH4#,RCH4# |
85291-26080 |
US $110.66 |
||
|
85291A
|
85291A
85291-26090 Blade, Front Wiper, Winter, Rh[07.1999 -] KCH4#,RCH42;RCH41,47..W08S ｶﾝﾚｲﾁ ｼﾖｳ |
85291-26090 |
US $133.95 |
||
|
85291B
|
85291B
85291-26050 Blade, Front Wiper, Winter, Lh[04.1997 -] KCH4#,LXH4#,RCH4# |
85291-26050 |
US $78.62 |
||
| replacement | |||||
|
85291B
|
85291B
85291-22080 Blade Assy, Windshield Wiper[04.1997 -] KCH4#,LXH4#,RCH4# |
85291-22080 |
US $63.84 |
||
|
85292B
|
85292B
85292-26010 Cap, Front Wiper Arm Head[04.1997 -] KCH4#,LXH4#,RCH4# |
85292-26010 |
US $6.88 |
||
|
9011906151
|
9011906151
90119-06151 New Genuine Part |
90119-06151 |
US $3.20 |
||
