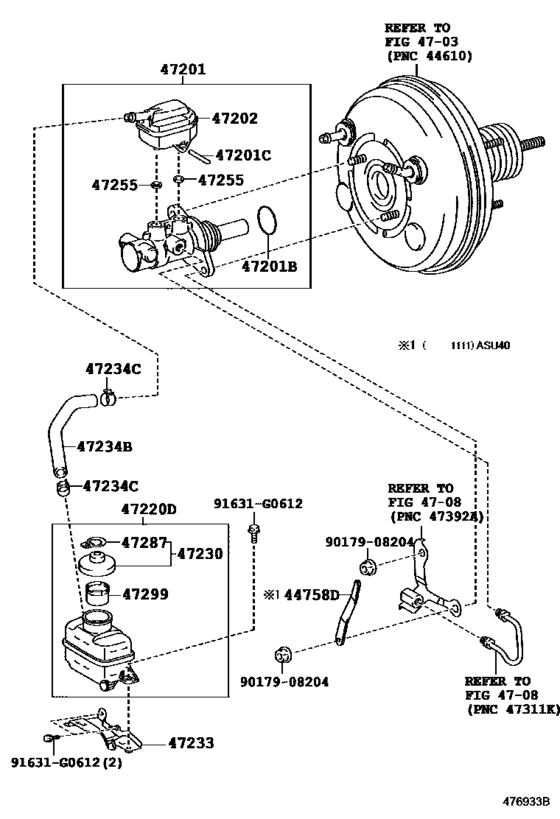

Brake Master Cylinder ([05.2009 - ] (0905- )) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2009 - 2015
- Sales region
- General
- Frame
- ASU40
- grade
- SPO
- ENGINE
- 1ARFE
- Model
- HIGHLANDER (CHINA)
- From
- 05.2009
- To
- 03.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- Highlander
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44758D
|
44758D
44758-0E010
Bracket, Vacuum Check Valve
[05.2009 - 11.2011] ASU40 |
44758-0E010 |
— | ||
|
47201
|
47201
47201-0E030
Cylinder Sub-Assy, Brake Master
[05.2009 - 02.2012] ASU40 |
47201-0E030 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-0E032
Cylinder Sub-Assy, Brake Master
[05.2009 - 02.2012] ASU40 |
47201-0E032 |
— | ||
|
47201
|
47201
47201-0E031
Cylinder Sub-Assy, Brake Master
[03.2012 - 04.2012] ASU40 |
47201-0E031 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-0E032
Cylinder Sub-Assy, Brake Master
[03.2012 - 04.2012] ASU40 |
47201-0E032 |
— | ||
|
47201
|
47201
47201-0E032
Cylinder Sub-Assy, Brake Master
[04.2012 - 05.2012] ASU40 |
47201-0E032 |
— | ||
|
47201B
|
47201B
90015-AH002 Ring, O(For Brake Master Cylinder)[05.2009 - 05.2012] ASU40,GSU45 |
90015-AH002 |
US $3.20 |
||
|
47201C
|
47201C
90029-15803 Ring Pin, Brake Master Cylinder[05.2009 - 05.2012] ASU40,GSU45 |
90029-15803 |
US $1.05 |
||
|
47202
|
47202
47220-0E040
Reservoir Sub-Assy, Brake Master Cylinder
[05.2009 - 05.2012] ASU40,GSU45 |
47220-0E040 |
— | ||
|
47220D
|
47220D
47220-0E050
Reservoir Assy, Brake Master Cylinder
[05.2009 - 05.2012] ASU40,GSU45 |
47220-0E050 |
— | ||
|
47230
|
47230
47230-02260
Cap Assy, Brake Master Cylinder Reservoir Filler
[05.2009 - 05.2012] ASU40,GSU45 |
47230-02260 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-0R030
Cap Assy, Brake Master Cylinder Reservoir Filler
[05.2009 - 05.2012] ASU40,GSU45 |
47230-0R030 |
— | ||
|
47233
|
47233
47233-0E030
Bracket, Reservoir
[05.2009 - 05.2012] ASU40,GSU45 |
47233-0E030 |
— | ||
|
47234B
|
47234B
47234-0E020
Tube, Reservoir, No.1
[05.2009 - 05.2012] ASU40,GSU45 |
47234-0E020 |
— | ||
|
47234C
|
47234C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[05.2009 - 05.2012] ASU40,GSU45 |
96133-41500 |
from US $2.24 |
||
|
47255
|
47255
90029-48001 Grommet, Master Cylinder Reservoir[05.2009 - 05.2012] ASU40,GSU45 |
90029-48001 |
US $5.76 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[05.2009 - 05.2012] ASU40,GSU45 |
47287-20010 |
US $2.08 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[05.2009 - 05.2012] ASU40,GSU45 |
47299-20060 |
US $1.89 |
||
|
91631G0612
|
91631G0612
91631-G0612 New Genuine Part |
91631-G0612 |
US $0.87 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
