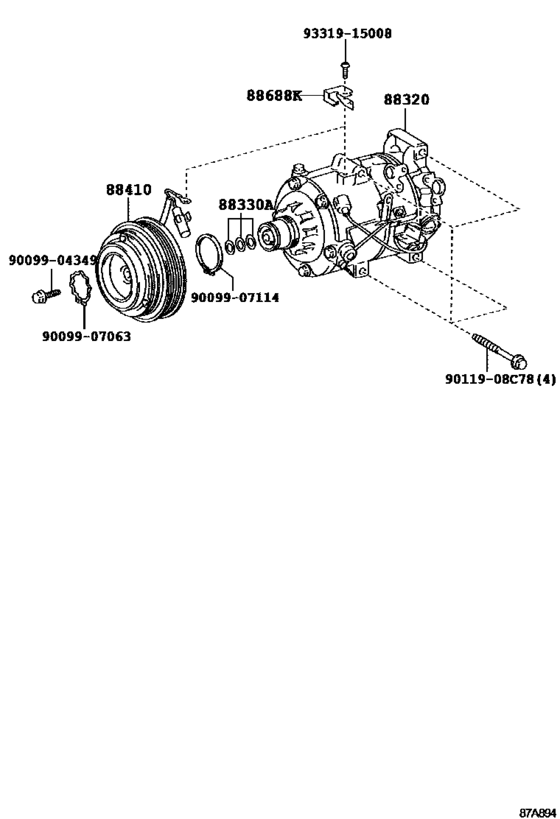

Heating & Air Conditioning - Compressor ([05.2009 - ] (0905- )GSU45) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2009 - 2015
- Sales region
- General
- Frame
- GSU45
- grade
- D
- ENGINE
- 2GRFE
- Model
- HIGHLANDER (CHINA)
- From
- 05.2009
- To
- 03.2015
- Gear Shift Type
- 5FC
- Vehicle Model
- Highlander
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-08060
Compressor Assy, Cooler
[05.2009 - 05.2012] GSU45 |
88320-08060 |
— | ||
|
88320
|
88320
88320-0E060
Compressor Assy, Cooler
[05.2012 - 10.2012] GSU45 |
88320-0E060 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-0E110
Compressor Assy, Cooler
[05.2012 - 10.2012] GSU45 |
88320-0E110 |
— | ||
|
88320
|
88320
88320-0E110
Compressor Assy, Cooler
[10.2012 -] GSU45 |
88320-0E110 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.2009 - 05.2012] GSU45 |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-33150 Clutch Assy, Magnet[05.2009 - 05.2012] GSU45 |
88410-33150 |
from US $366.91 |
||
|
88410
|
88410
88410-33180
Clutch Assy, Magnet
[05.2012 - 03.2014] GSU45 |
88410-33180 |
— | ||
| replacement | |||||
|
88410
|
88410
88410-33190 Clutch Assy, Magnet[05.2012 - 03.2014] GSU45 |
88410-33190 |
from US $366.91 |
||
|
88410
|
88410
88410-33190 Clutch Assy, Magnet[03.2014 -] GSU45 |
88410-33190 |
from US $366.91 |
||
|
88688K
|
88688K
88688-33570
Bracket, Cooler Compressor
[05.2012 -] GSU45 |
88688-33570 |
— | ||
|
88688K
|
88688K
88688-48250
Bracket, Cooler Compressor
[05.2009 - 05.2012] GSU45 |
88688-48250 |
— | ||
|
9011908C78
|
9011908C78
90119-08C78 Bolt, No.2(For Alternator) |
90119-08C78 |
from US $2.10 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907063
|
9009907063
90099-07063 RING SNAP |
90099-07063 |
from US $1.67 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
