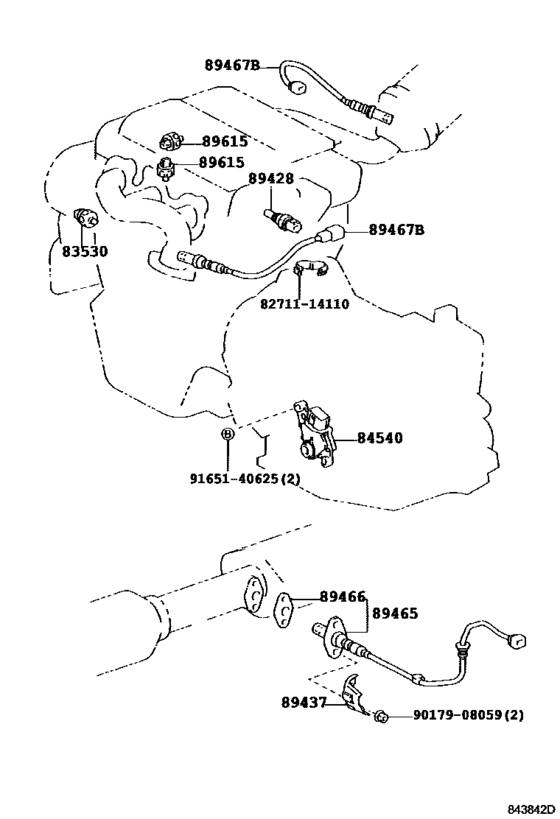

Switch & Relay & Computer ([11.2000 - 08.2003] ENGINE & TRANSMISSION (0011-0308)MCU2#) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2000 - 2003
- Sales region
- U.S.A.
- Frame
- MCU20
- body
- WG
- ENGINE
- 1MZFE
- Model
- HIGHLANDER
- From
- 11.2000
- To
- 08.2003
- Gear Shift Type
- 4FC
- Seating Capacity
- 05S
- Vehicle Model
- Highlander
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[05.2002 - 08.2003] ACU2#,MCU2# (L),DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[11.2000 - 08.2003] ACU2#,MCU2# (J),DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.2000 - 08.2003] ACU2#,MCU2# (J),DENSO |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[11.2000 - 08.2003] ACU2#,MCU2# (J),DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.2000 - 08.2003] ACU2#,MCU2# (J),YAZAKI |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-AA011 Switch Assy, Oil Pressure (For Engine)[01.2003 - 08.2003] ACU2#,MCU2# (L),FASCO |
83530-AA011 |
US $14.56 |
||
| replacement | |||||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[01.2003 - 08.2003] ACU2#,MCU2# (L),FASCO |
83530-0E010 |
from US $51.25 |
||
|
84540
|
84540
84540-12230 Switch Assy, Neutral Start[11.2000 - 02.2002] ACU2#,MCU2# |
84540-12230 |
US $336.34 |
||
| replacement | |||||
|
84540
|
84540
84540-32110 Switch Assy, Neutral Start[11.2000 - 02.2002] ACU2#,MCU2# |
84540-32110 |
from US $159 |
||
|
84540
|
84540
84540-32110 Switch Assy, Neutral Start[02.2002 - 08.2003] ACU2#,MCU2# |
84540-32110 |
from US $159 |
||
|
89428
|
89428
89428-41010 Switch, Temperature Detect[11.2000 - 08.2003] MCU2# |
89428-41010 |
from US $76.96 |
||
|
89437
|
89437
89437-48010 Cover, Sensor[11.2000 - 08.2003] MCU2# |
89437-48010 |
US $13.10 |
||
|
89465
|
89465
89465-49075 Sensor, Oxygen[11.2000 - 08.2003] MCU2# |
89465-49075 |
from US $161.28 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[11.2000 - 08.2003] MCU2# |
89466-20020 |
from US $13.88 |
||
|
89467B
|
89467B
89467-48011 Sensor, Air Fuel RatioAIR FUEL RATIO [11.2000 - 08.2003] MCU2# |
89467-48011 |
US $283.76 |
||
|
89615
|
89615
89615-12090 Sensor, Knock Control[11.2000 - 08.2003] MCU2# |
89615-12090 |
from US $137.81 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
