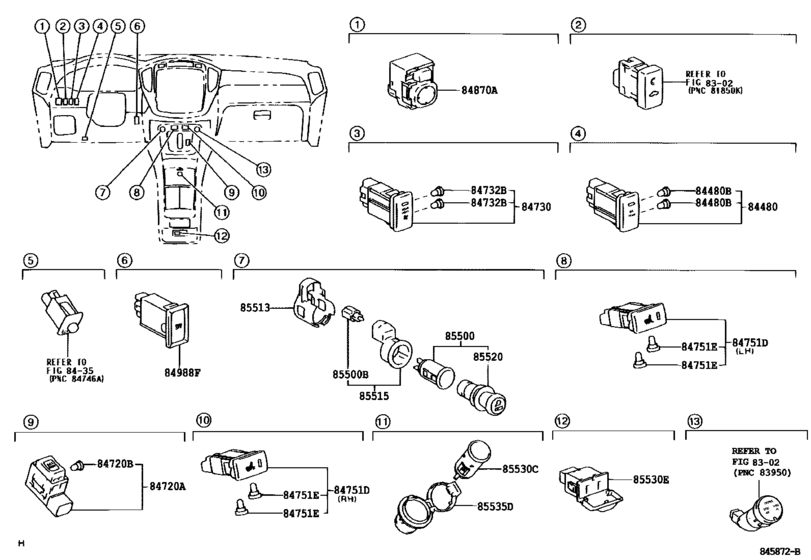

Switch & Relay & Computer ([08.2003 - ] INSTRUMENT PANEL (0308- )) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2003 - 2007
- Sales region
- U.S.A.
- Frame
- MCU23
- body
- WG
- ENGINE
- 3MZFE
- Model
- HIGHLANDER
- From
- 08.2003
- To
- 05.2007
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Highlander
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84480
|
84480
84480-60020 Switch Assy, Main[08.2003 -] ACU2#,MCU2# |
84480-60020 |
US $53.87 |
||
|
84480B
|
84480B
84999-10310 Bulb, Air Conditioner Control[08.2003 -] ACU2#,MCU2# 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84480B
|
84480B
90010-01061 Bulb (For Headlamp Leveling Switch)[08.2003 -] ACU2#,MCU2# 14V0.84W,W(GREEN CAP) |
90010-01061 |
from US $3.63 |
||
|
84720A
|
84720A
84720-48010 Switch Assy, Pattern Select[08.2003 - 05.2007] ACU2#,MCU2# |
84720-48010 |
US $57.51 |
||
|
84720B
|
84720B
90010-01039 Blub, Center Cluster Module Switch[08.2003 -] ACU2#,MCU2# 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.20 |
||
|
84730
|
84730
84730-48010 Switch Assy, Heater Blower[08.2003 -] ACU2#,MCU2#..07S |
84730-48010 |
US $64.65 |
||
|
84732B
|
84732B
84999-10310 Bulb, Air Conditioner Control[08.2003 -] ACU2#,MCU2#..07S 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84732B
|
84732B
90010-01039 Blub, Center Cluster Module Switch[08.2003 -] ACU2#,MCU2#..07S 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.20 |
||
|
84751D
|
84751D
84751-48060 Switch, Seat HeaterSEAT HEATER [08.2003 -] ACU2#,MCU2# LH |
84751-48060 |
US $64.65 |
||
| replacement | |||||
|
84751D
|
84751D
84751-58020 Switch, Seat Heater[08.2003 -] ACU2#,MCU2# LH |
84751-58020 |
US $44.84 |
||
|
84751D
|
84751D
84751-48070 Switch, Seat Heater(Front)SEAT HEATER [08.2003 -] ACU2#,MCU2# RH |
84751-48070 |
US $64.65 |
||
| replacement | |||||
|
84751D
|
84751D
84751-58010 Switch, Seat Heater[08.2003 -] ACU2#,MCU2# RH |
84751-58010 |
US $44.84 |
||
|
84751E
|
84751E
84999-10310 Bulb, Air Conditioner Control[08.2003 -] ACU2#,MCU2# 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84751E
|
84751E
90010-01061 Bulb (For Headlamp Leveling Switch)[08.2003 -] ACU2#,MCU2# 14V0.84W,W(GREEN CAP) |
90010-01061 |
from US $3.63 |
||
|
84870A
|
84870A
84872-52030 Switch Assy, Outer Mirror[08.2003 -] ACU2#,MCU2# |
84872-52030 |
US $53.29 |
||
|
84988F
|
84988F
84988-33030 Switch, Traction ControlTRACTION CONTROL [08.2003 -] ACU20,MCU23 |
84988-33030 |
from US $49.65 |
||
| replacement | |||||
|
84988F
|
84988F
84988-22050 Switch, Traction Control[08.2003 -] ACU20,MCU23 |
84988-22050 |
US $55.91 |
||
|
85500
|
85500
85500-17050
Lighter Assy, Cigarette
[08.2003 -] ACU2#,MCU2# |
85500-17050 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[08.2003 -] ACU2#,MCU2# |
85500-12240 |
from US $27.83 |
||
|
85500B
|
85500B
90010-01022 Bulb, Key Cylinder Lamp[08.2003 -] ACU2#,MCU2# 14V 1.4W,W(GREEN CAP) |
90010-01022 |
from US $2.67 |
||
|
85513
|
85513
85513-48010 Cover, Cigarette Lighter[08.2003 -] ACU2#,MCU2# |
85513-48010 |
US $6.84 |
||
|
85515
|
85515
85515-48010 Stay, Cigarette Lighter Bezel[08.2003 -] ACU2#,MCU2# |
85515-48010 |
US $11.53 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[08.2003 -] ACU2#,MCU2# |
85520-89101 |
from US $19.19 |
||
|
85530C
|
85530C
85530-33020 Socket Assy, Power Outlet, No.1[08.2003 - 05.2007] ACU2#,MCU2# |
85530-33020 |
from US $15.52 |
||
| replacement | |||||
|
85530C
|
85530C
85530-06010 Socket Assy, Power Outlet, No.1[08.2003 - 05.2007] ACU2#,MCU2# |
85530-06010 |
from US $26.06 |
||
|
85530E
|
85530E
85530-41030 Socket Assy, Power Outlet, No.1POWER POINT, NO.2 [08.2003 -] ACU2#,MCU2# |
85530-41030 |
US $31.30 |
||
| replacement | |||||
|
85530E
|
85530E
85530-73010
Socket Assy, Power Outlet, No.2
[08.2003 -] ACU2#,MCU2# |
85530-73010 |
— | ||
|
85535D
|
85535D
85535-48060 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [08.2003 - 05.2007] ACU2#,MCU2# |
85535-48060 |
US $9.03 |
||
