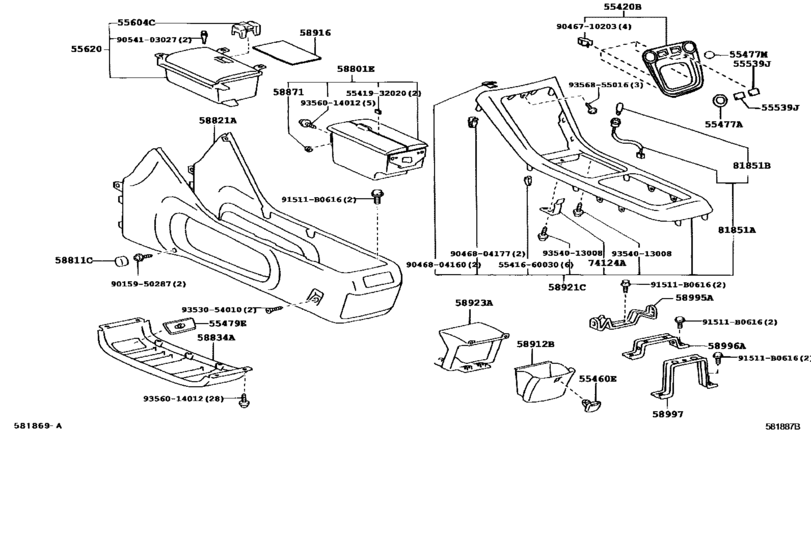

Console Box & Bracket ([08.2003 - ] (0308- )) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- MCU28
- body
- WG
- ENGINE
- 3MZFE
- DESTINATION
- ARL
- Model
- KLUGER
- From
- 08.2003
- To
- 05.2007
- Gear Shift Type
- 5FC
- Seating Capacity
- 5S
- Vehicle Model
- Kluger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55420B
|
55420B
55420-48070-B0
Panel Assy, Instrument Cluster Finish, Center No.1
[08.2003 - 05.2007] MCU28 SILVER,TRIM0#,1# |
55420-48070-B0 |
— | ||
|
55460E
|
55460E
55460-33010-A2 Lock Assy, Instrument Panel BoxINSTRUMENT PANEL BOX [08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
55460-33010-A2 |
US $10.19 |
||
| replacement | |||||
|
55460E
|
55460E
55460-33010-P1 Lock Assy, Instrument Panel Box[08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
55460-33010-P1 |
US $6.81 |
||
|
55460E
|
55460E
55460-33010-B6 Lock Assy, Instrument Panel Box[08.2003 - 05.2007] MCU28 GRAY,TRIM1# |
55460-33010-B6 |
US $10.19 |
||
| replacement | |||||
|
55460E
|
55460E
55460-33010-P1 Lock Assy, Instrument Panel Box[08.2003 - 05.2007] MCU28 GRAY,TRIM1# |
55460-33010-P1 |
US $6.81 |
||
|
55477A
|
55477A
55477-48020 Bezel, Cigarette Lighter Hole[08.2003 - 05.2007] MCU28 |
55477-48020 |
US $5.97 |
||
|
55477M
|
55477M
55477-48030 Cover, Cigarette Lighter HoleCIGARETTE LIGHTER HOLE [08.2003 - 05.2007] MCU28 |
55477-48030 |
US $4.95 |
||
|
55479E
|
55479E
55479-48010-A0 Cover, Instrument, Lower CenterINSTRUMENT, LOWER CENTER [08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
55479-48010-A0 |
US $18.93 |
||
|
55479E
|
55479E
55479-48010-B0 Cover, Instrument, Lower CenterINSTRUMENT, LOWER CENTER [08.2003 - 05.2007] MCU28 GRAY,TRIM1# |
55479-48010-B0 |
US $18.93 |
||
|
55539J
|
55539J
55539-48010 Cover, Spare Switch Hole[08.2003 - 05.2007] MCU28 |
55539-48010 |
US $4.80 |
||
|
55604C
|
55604C
55604-48020 Holder Sub-Assy, Console Box Cup[08.2003 -] MCU28 |
55604-48020 |
US $30.05 |
||
|
55620
|
55620
55620-48060-B0 Holder Assy, Instrument Panel CupINSTRUMENT PANEL CUP [08.2003 - 05.2007] MCU28 SILVER,TRIM0#,1# |
55620-48060-B0 |
US $225.68 |
||
|
58801E
|
58801E
58801-48040-A0 Box Sub-Assy, Console, UpperCONSOLE, UPPER [08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
58801-48040-A0 |
US $215.49 |
||
| replacement | |||||
|
58801E
|
58801E
58801-48040-B1 Box Sub-Assy, Console, Upper[08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
58801-48040-B1 |
US $215.49 |
||
|
58801E
|
58801E
58801-48040-B1 Box Sub-Assy, Console, Upper[08.2003 - 05.2007] MCU28 GRAY,TRIM1# |
58801-48040-B1 |
US $215.49 |
||
|
58811C
|
58811C
90339-10014-A0
Cap
[08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
90339-10014-A0 |
— | ||
| replacement | |||||
|
58811C
|
58811C
90339-10014-C0 Cap[08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
90339-10014-C0 |
US $2.08 |
||
|
58811C
|
58811C
90339-10014-B5 Cap(For Console)[08.2003 - 05.2007] MCU28 GRAY,TRIM1# |
90339-10014-B5 |
US $2.08 |
||
| replacement | |||||
|
58811C
|
58811C
90339-10014-C0 Cap[08.2003 - 05.2007] MCU28 GRAY,TRIM1# |
90339-10014-C0 |
US $2.08 |
||
|
58821A
|
58821A
58821-48020-A0 Panel, ConsoleCONSOLE [08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
58821-48020-A0 |
US $365.46 |
||
|
58821A
|
58821A
58821-48020-B2 Panel, Console[08.2003 - 05.2007] MCU28 GRAY,TRIM1# |
58821-48020-B2 |
US $365.46 |
||
|
58834A
|
58834A
58834-48040-A0 Cover, Console, LowerCONSOLE, LOWER [08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
58834-48040-A0 |
US $80.08 |
||
|
58834A
|
58834A
58834-48040-B0 Cover, Console, LowerCONSOLE, LOWER [08.2003 - 05.2007] MCU28 NEW GRAY,TRIM1# |
58834-48040-B0 |
US $80.08 |
||
|
58871
|
58871
58871-30050 Cushion, Console Box[08.2003 -] MCU28 |
58871-30050 |
US $2.04 |
||
|
58912B
|
58912B
58912-48030-A0 Box, Rear Console, LowerREAR CONSOLE, LOWER [08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
58912-48030-A0 |
US $72.80 |
||
|
58912B
|
58912B
58912-48030-B1 Box, Rear Console, Lower[08.2003 - 05.2007] MCU28 GRAY,TRIM1# |
58912-48030-B1 |
US $72.80 |
||
|
58916
|
58916
58916-48020 Mat, Box Bottom[08.2003 -] MCU28 |
58916-48020 |
US $3.84 |
||
|
58921C
|
58921C
58921-48050-A0 Plate, Box, Upper No.1BOX, UPR NO.1 [08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
58921-48050-A0 |
US $189.28 |
||
|
58921C
|
58921C
58921-48050-B0 Plate, Box, Upper No.1[08.2003 - 05.2007] MCU28 NEW GRAY,TRIM1# |
58921-48050-B0 |
US $189.28 |
||
|
58923A
|
58923A
58923-48010-A0 Panel, Console Rear EndCONSOLE REAR END [08.2003 - 05.2007] MCU28 IVORY,TRIM0# |
58923-48010-A0 |
US $39.17 |
||
|
58923A
|
58923A
58923-48010-B2 Panel, Console Rear End[08.2003 - 05.2007] MCU28 GRAY,TRIM1# |
58923-48010-B2 |
US $39.17 |
||
|
58995A
|
58995A
58995-48030 Bracket, Console Box Mounting, No.1[08.2003 -] MCU28 |
58995-48030 |
US $17.91 |
||
|
58996A
|
58996A
58996-48020 Bracket, Console Box Mounting, No.2[08.2003 -] MCU28 |
58996-48020 |
US $15.43 |
||
|
58997
|
58997
58997-48020 Bracket, Console Box Mounting, No.3[08.2003 -] MCU28 |
58997-48020 |
US $19.51 |
||
|
74124A
|
74124A
74124-20120 Spring, Ash Receptacle[08.2003 -] MCU28 |
74124-20120 |
US $3.49 |
||
|
81851A
|
81851A
81850-48010 Lamp Assy, Indicator[08.2003 -] MCU28 |
81850-48010 |
US $18.64 |
||
|
81851B
|
81851B
90981-11014 Bulb, Position Indicator Lamp[08.2003 -] MCU28 |
90981-11014 |
from US $1.92 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $1.76 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 BOLT, FLANGE |
90080-10164 |
US $2.67 |
||
|
5541660030
|
5541660030
55416-60030 Retainer, Instrument Cluster Finish Panel |
55416-60030 |
from US $1.28 |
||
|
5541932020
|
5541932020
55419-32020 Cushion, Instrument Cluster Finish Panel |
55419-32020 |
US $1.88 |
||
|
9015950287
|
9015950287
90159-50287 SCREW WWASHER |
90159-50287 |
from US $1.07 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.94 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9054103027
|
9054103027
90541-03027 New Genuine Part |
90541-03027 |
US $1.31 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.82 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
|
9354013008
|
9354013008
93540-13008 New Genuine Part |
93540-13008 |
US $2.33 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.12 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
