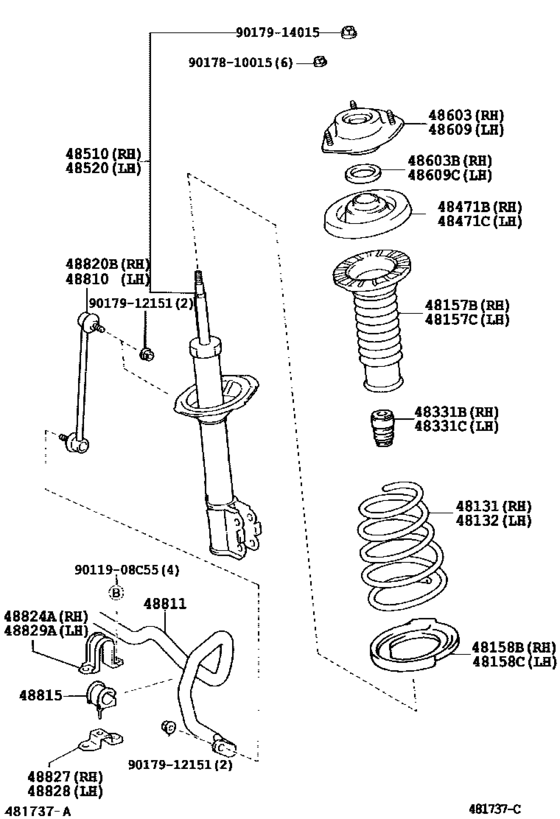

Front Spring & Shock Absorber ([08.2003 - ] (0308- )) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- MCU28
- body
- WG
- ENGINE
- 3MZFE
- DESTINATION
- ARL
- Model
- KLUGER
- From
- 08.2003
- To
- 05.2007
- Gear Shift Type
- 5FC
- Seating Capacity
- 5S
- Vehicle Model
- Kluger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-48450 Spring, Front Coil, Rh[08.2003 - 08.2004] MCU28 |
48131-48450 |
US $138.32 |
||
| replacement | |||||
|
48131
|
48131
48131-48451 Spring, Front Coil, Rh[08.2003 - 08.2004] MCU28 |
48131-48451 |
US $138.32 |
||
|
48131
|
48131
48131-48451 Spring, Front Coil, Rh[08.2004 -] MCU28 |
48131-48451 |
US $138.32 |
||
|
48132
|
48132
48131-48450 Spring, Front Coil, Rh[08.2003 - 08.2004] MCU28 |
48131-48450 |
US $138.32 |
||
| replacement | |||||
|
48132
|
48132
48131-48451 Spring, Front Coil, Rh[08.2003 - 08.2004] MCU28 |
48131-48451 |
US $138.32 |
||
|
48132
|
48132
48131-48451 Spring, Front Coil, Rh[08.2004 -] MCU28 |
48131-48451 |
US $138.32 |
||
|
48157B
|
48157B
48157-48030 Insulator, Front Coil Spring, Upper[08.2003 -] MCU28 |
48157-48030 |
from US $18.70 |
||
|
48157C
|
48157C
48157-48030 Insulator, Front Coil Spring, Upper[08.2003 -] MCU28 |
48157-48030 |
from US $18.70 |
||
|
48158B
|
48158B
48158-48020 Insulator, Front Coil Spring, Lower[08.2003 -] MCU28 |
48158-48020 |
US $25.08 |
||
|
48158C
|
48158C
48158-48020 Insulator, Front Coil Spring, Lower[08.2003 -] MCU28 |
48158-48020 |
US $25.08 |
||
|
48331B
|
48331B
48331-48020 Bumper, Front Spring[08.2003 -] MCU28 |
48331-48020 |
US $18.85 |
||
|
48331C
|
48331C
48331-48020 Bumper, Front Spring[08.2003 -] MCU28 |
48331-48020 |
US $18.85 |
||
|
48471B
|
48471B
48471-41011
Seat, Front Coil Spring, Upper
[08.2003 -] MCU28 |
48471-41011 |
— | ||
| replacement | |||||
|
48471B
|
48471B
48471-41012 Seat, Front Coil Spring, Upper[08.2003 -] MCU28 |
48471-41012 |
US $27.36 |
||
|
48471C
|
48471C
48471-41011
Seat, Front Coil Spring, Upper
[08.2003 -] MCU28 |
48471-41011 |
— | ||
| replacement | |||||
|
48471C
|
48471C
48471-41012 Seat, Front Coil Spring, Upper[08.2003 -] MCU28 |
48471-41012 |
US $27.36 |
||
|
48510
|
48510
48510-49575 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [08.2003 -] MCU28 MARK 48510-48120 |
48510-49575 |
US $369.82 |
||
|
48520
|
48520
48520-49745 Absorber Assy, Shock, Front LhSHOCK, FRONT LH [08.2003 -] MCU28 MARK 48520-48120 |
48520-49745 |
US $369.82 |
||
|
48603
|
48603
48609-48020 Support Sub-Assy, Front Suspension[08.2003 -] MCU28 |
48609-48020 |
from US $74.48 |
||
|
48603B
|
48603B
90903-63014 Bearing(For Front Suspension Support)[08.2003 -] MCU28 |
90903-63014 |
from US $32.07 |
||
|
48609
|
48609
48609-48020 Support Sub-Assy, Front Suspension[08.2003 -] MCU28 |
48609-48020 |
from US $74.48 |
||
|
48609C
|
48609C
90903-63014 Bearing(For Front Suspension Support)[08.2003 -] MCU28 |
90903-63014 |
from US $32.07 |
||
|
48810
|
48810
48820-28050 Link Assy, Front Stabilizer[08.2003 -] MCU28 |
48820-28050 |
from US $53.43 |
||
|
48811
|
48811
48811-48050 Bar, Stabilizer, Front[08.2003 -] MCU28 |
48811-48050 |
US $182 |
||
|
48815
|
48815
48815-48040 Bush, Front Stabilizer Bar, No.1[08.2003 -] MCU28 |
48815-48040 |
from US $11.33 |
||
|
48820B
|
48820B
48820-28050 Link Assy, Front Stabilizer[08.2003 -] MCU28 |
48820-28050 |
from US $53.43 |
||
|
48824A
|
48824A
48824-28180 Bracket, Front Stabilizer, No.1[08.2003 -] MCU28 |
48824-28180 |
from US $25.54 |
||
| replacement | |||||
|
48824A
|
48824A
48824-0E010 Bracket, Front Stabilizer, No.1[08.2003 -] MCU28 |
48824-0E010 |
US $66.12 |
||
|
48827
|
48827
48827-48010 Bracket, Front Stabilizer, No.2[08.2003 -] MCU28 |
48827-48010 |
from US $17.47 |
||
| replacement | |||||
|
48827
|
48827
48827-08010 Bracket, Front Stabilizer, No.2[08.2003 -] MCU28 |
48827-08010 |
US $37.71 |
||
|
48828
|
48828
48827-48010 Bracket, Front Stabilizer, No.2[08.2003 -] MCU28 |
48827-48010 |
from US $17.47 |
||
| replacement | |||||
|
48828
|
48828
48827-08010 Bracket, Front Stabilizer, No.2[08.2003 -] MCU28 |
48827-08010 |
US $37.71 |
||
|
48829A
|
48829A
48824-28180 Bracket, Front Stabilizer, No.1[08.2003 -] MCU28 |
48824-28180 |
from US $25.54 |
||
| replacement | |||||
|
48829A
|
48829A
48824-0E010 Bracket, Front Stabilizer, No.1[08.2003 -] MCU28 |
48824-0E010 |
US $66.12 |
||
|
9011908C55
|
9011908C55
90119-08C55 New Genuine Part |
90119-08C55 |
from US $1.89 |
||
|
9017810015
|
9017810015
90178-10015 Nut(For Front Suspension Support) |
90178-10015 |
from US $0.96 |
||
|
9017912151
|
9017912151
90179-12151 Nut(For Front Stabilizer Link) |
90179-12151 |
from US $0.96 |
||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $1.93 |
||
