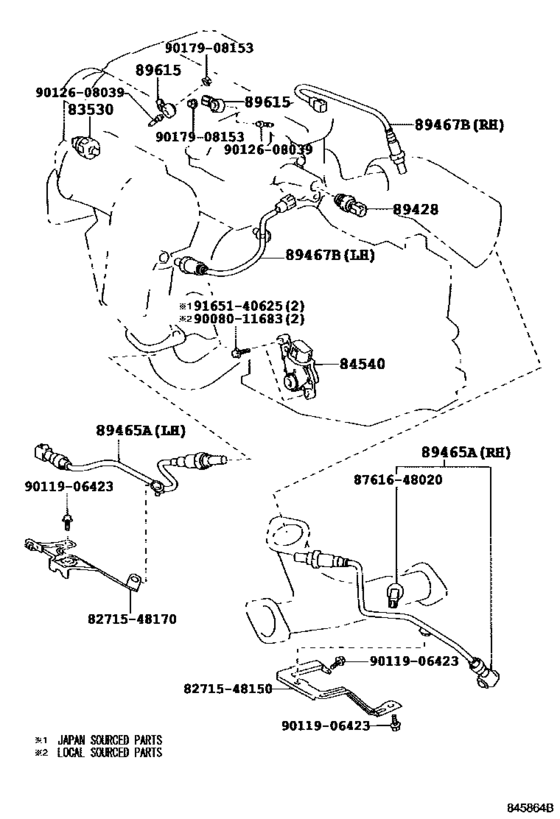

Switch & Relay & Computer ([08.2003 - ] ENGINE & TRANSMISSION (0308- )) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- MCU28
- body
- WG
- ENGINE
- 3MZFE
- DESTINATION
- ARL
- Model
- KLUGER
- From
- 08.2003
- To
- 05.2007
- Gear Shift Type
- 5FC
- Seating Capacity
- 5S
- Vehicle Model
- Kluger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[08.2003 -] MCU28 (L) |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.2003 -] MCU28 (J),DENSO |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2003 -] MCU28 (J),DENSO |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[08.2003 -] MCU28 (J),DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2003 -] MCU28 (J),YAZAKI |
83530-60020 |
from US $25.43 |
||
|
84540
|
84540
84540-0E010
Switch Assy, Neutral Start
[08.2003 - 05.2007] MCU28 (L) |
84540-0E010 |
— | ||
|
84540
|
84540
84540-48010 Switch Assy, Neutral Start[08.2003 - 05.2007] MCU28 (J) |
84540-48010 |
from US $148.98 |
||
|
89428
|
89428
89428-41010 Switch, Temperature Detect[08.2003 - 05.2007] MCU28 |
89428-41010 |
from US $76.96 |
||
|
89465A
|
89465A
89465-48170 Sensor, OxygenLH [08.2003 -] MCU28 LH |
89465-48170 |
US $160.74 |
||
|
89465A
|
89465A
89465-48180 Sensor, Oxygen No.2RH [08.2003 -] MCU28 RH |
89465-48180 |
from US $162.72 |
||
|
89467B
|
89467B
89467-48050 Sensor, Air Fuel RatioAIR FUEL RATIO [08.2003 -] MCU28 LH |
89467-48050 |
from US $227.14 |
||
|
89467B
|
89467B
89467-48060 Sensor, Air Fuel Ratio[08.2003 -] MCU28 RH |
89467-48060 |
from US $165.77 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[08.2003 -] MCU28 |
89615-20090 |
from US $36.02 |
||
|
8271548150
|
8271548150
82715-48150 Bracket,wiring Harness Clamp |
82715-48150 |
US $18.35 |
||
|
8271548170
|
8271548170
82715-48170 Bracket,wiring Harness Clamp |
82715-48170 |
US $13.83 |
||
| replacement | |||||
|
8271548170
|
8271548170
82715-08120
Bracket,wiring Harness Clamp
|
82715-08120 |
— | ||
|
8761648020
|
8761648020
87616-48020 Clamp, Cooling Unit Case |
87616-48020 |
US $5.24 |
||
|
9008011683
|
9008011683
90080-11683
New Genuine Part
|
90080-11683 |
— | ||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.12 |
||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $3.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
