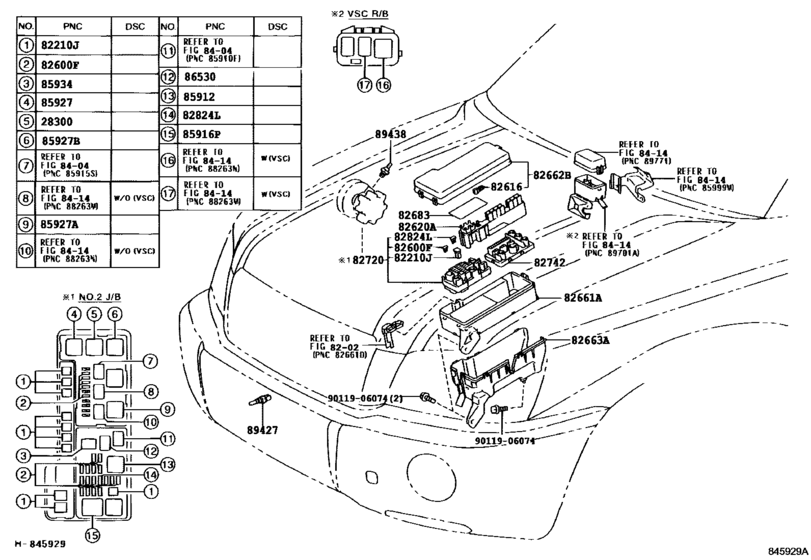

Switch & Relay & Computer ([08.2003 - ] ENGINE ROOM (0308- )) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- MCU28
- body
- WG
- ENGINE
- 3MZFE
- DESTINATION
- ARL
- Model
- KLUGER
- From
- 08.2003
- To
- 05.2007
- Gear Shift Type
- 5FC
- Seating Capacity
- 5S
- Vehicle Model
- Kluger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[08.2003 -] 3MZFE..MCU28 |
28300-10020 |
from US $55.30 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[08.2003 -] MCU28 30A,TERMINAL:FEMALE |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[08.2003 -] MCU28 40A,TERMINAL:FEMALE |
90982-08284 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[08.2003 -] MCU28 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[08.2003 -] MCU28 140A,TERMINAL:MALE |
90982-08286 |
from US $7.68 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[02.2006 -] MCU28 7.5A,MINI FUSE,SUMITOMO |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[02.2006 -] MCU28 10A,MINI FUSE,SUMITOMO |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[02.2006 -] MCU28 15A,MINI FUSE,SUMITOMO |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[02.2006 -] MCU28 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[02.2006 -] MCU28 25A,MINI FUSE,SUMITOMO |
90080-82033 |
— | ||
|
82600F
|
82600F
90982-09008 Fusible Link[08.2003 -] MCU28 7.5A,MINI FUSE,PACIFIC |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.2003 -] MCU28 10A,MINI FUSE,PACIFIC |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.2003 -] MCU28 15A,MINI FUSE,PACIFIC |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.2003 - 01.2006] MCU28 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.2003 -] MCU28 25A,MINI FUSE,PACIFIC |
90982-09012 |
from US $0.92 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[08.2003 -] MCU28 |
82616-20010 |
from US $2.36 |
||
|
82620A
|
82620A
82620-48030 Block Assy, Fusible Link[08.2003 -] MCU28 |
82620-48030 |
US $94.64 |
||
|
82661A
|
82661A
82661-48010 Cover, Relay Block, No.2[08.2003 -] MCU28 |
82661-48010 |
US $70.18 |
||
|
82662B
|
82662B
82662-48020 Cover, Relay Block, Upper, No.2[08.2003 -] MCU28 |
82662-48020 |
US $49.80 |
||
|
82663A
|
82663A
82663-48010 Cover, Relay Block, Lower, No.2[08.2003 -] MCU28 |
82663-48010 |
from US $105.24 |
||
|
82683
|
82683
82683-48160 Plate, Fuse Block Caution[08.2003 -] MCU28 W(VSC) |
82683-48160 |
US $3.49 |
||
|
82683
|
82683
82683-48170 Plate, Fuse Block Caution[08.2003 -] MCU28 |
82683-48170 |
US $3.49 |
||
|
82720
|
82720
82720-48021 Block Assy, Engine Room Junction[08.2003 -] MCU28 |
82720-48021 |
US $314.50 |
||
|
82742
|
82742
82741-48040 Block, Engine Room Relay, No.2[08.2003 -] MCU28 |
82741-48040 |
US $47.17 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[08.2003 -] MCU28 |
82824-20140 |
US $3.32 |
||
|
85912
|
85912
90987-04003 Relay, Ignition, No.1[08.2003 -] MCU28 |
90987-04003 |
from US $31.32 |
||
|
85916P
|
85916P
90987-02006 Relay[08.2003 -] MCU28 |
90987-02006 |
from US $27.28 |
||
|
85927
|
85927
90987-02009 Relay Assy[08.2003 -] MCU28 |
90987-02009 |
from US $32.51 |
||
|
85927A
|
85927A
90987-04003 Relay, Ignition, No.1[08.2003 -] MCU28 |
90987-04003 |
from US $31.32 |
||
|
85927B
|
85927B
90987-02009 Relay Assy[08.2003 -] MCU28 |
90987-02009 |
from US $32.51 |
||
|
85934
|
85934
90987-02022 Relay, Starter Cut[08.2003 - 09.2003] MCU28 |
90987-02022 |
from US $52.26 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[09.2003 -] MCU28 |
90987-02028 |
from US $44.54 |
||
|
86530
|
86530
90987-02027 Relay[08.2003 -] MCU28 |
90987-02027 |
from US $44.54 |
||
|
89427
|
89427
89428-21010 Switch, Temperature Detect[08.2003 - 05.2007] MCU28 |
89428-21010 |
from US $87.93 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[08.2003 - 05.2007] MCU28 |
89438-33010 |
from US $30.23 |
||
|
9011906074
|
9011906074
90119-06074 Bolt |
90119-06074 |
US $1.92 |
