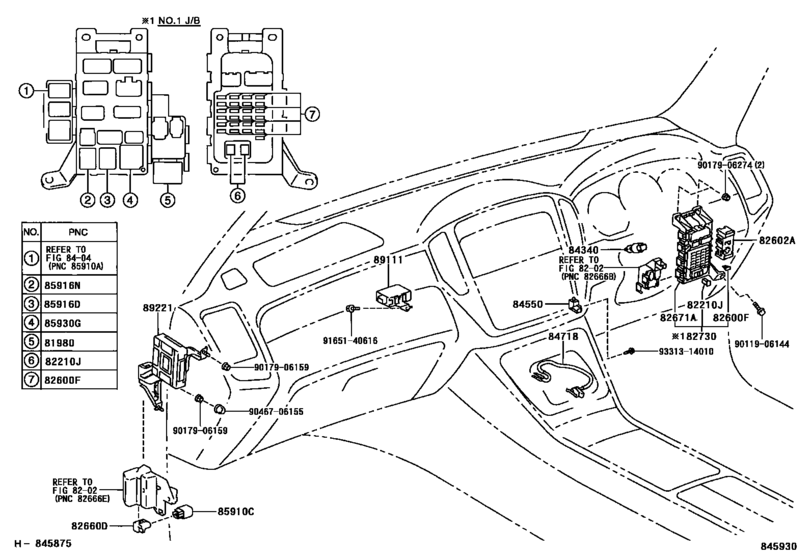

Switch & Relay & Computer ([08.2003 - ] COWL (0308- )) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- MCU28
- body
- WG
- ENGINE
- 3MZFE
- DESTINATION
- ARL
- Model
- KLUGER
- From
- 08.2003
- To
- 05.2007
- Gear Shift Type
- 5FC
- Seating Capacity
- 5S
- Vehicle Model
- Kluger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-50020 Flasher Assy, Turn Signal[08.2003 -] MCU28 |
81980-50020 |
US $108.33 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[08.2003 -] MCU28 30A,TERMINAL:FEMALE |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[08.2003 -] MCU28 40A,TERMINAL:FEMALE |
90982-08284 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[08.2003 -] MCU28 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[08.2003 -] MCU28 140A,TERMINAL:MALE |
90982-08286 |
from US $7.68 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[02.2006 -] MCU28 7.5A,MINI FUSE,SUMITOMO |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[02.2006 -] MCU28 10A,MINI FUSE,SUMITOMO |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[02.2006 -] MCU28 15A,MINI FUSE,SUMITOMO |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[02.2006 -] MCU28 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[02.2006 -] MCU28 25A,MINI FUSE,SUMITOMO |
90080-82033 |
— | ||
|
82600F
|
82600F
90982-09008 Fusible Link[08.2003 -] MCU28 7.5A,MINI FUSE,PACIFIC |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.2003 -] MCU28 10A,MINI FUSE,PACIFIC |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.2003 -] MCU28 15A,MINI FUSE,PACIFIC |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.2003 - 01.2006] MCU28 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.2003 -] MCU28 25A,MINI FUSE,PACIFIC |
90982-09012 |
from US $0.92 |
||
|
82602A
|
82602A
82602-48010 Block Sub-Assy, Relay[08.2003 -] MCU28 |
82602-48010 |
US $24.90 |
||
|
82660D
|
82660D
82660-44010 Block Assy, Relay[08.2003 -] MCU28 |
82660-44010 |
US $10.48 |
||
|
82671A
|
82671A
82732-48011 Block, Junction[08.2003 -] MCU28 |
82732-48011 |
US $139.78 |
||
|
82730
|
82730
82730-48060 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [08.2003 -] MCU28 |
82730-48060 |
US $340.70 |
||
|
84340
|
84340
84340-35030 Switch Assy, Stop Lamp[08.2003 - 03.2005] MCU28 |
84340-35030 |
from US $52.24 |
||
|
84340
|
84340
84340-47020 Switch Assy, Stop Lamp[03.2005 -] MCU28 |
84340-47020 |
from US $51.52 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[08.2003 - 05.2007] MCU28 |
84550-16060 |
from US $17.48 |
||
|
84718
|
84718
84718-48030 Switch, Transmission Shift Main[08.2003 - 05.2007] MCU28 |
84718-48030 |
US $42.52 |
||
| replacement | |||||
|
84718
|
84718
84718-48020 Switch, Transmission Shift MainTRANSMISSION SHIFT MAIN [08.2003 - 05.2007] MCU28 |
84718-48020 |
US $42.52 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[08.2003 -] MCU28 |
90987-04002 |
from US $24.67 |
||
|
85916D
|
85916D
90987-02027 Relay[08.2003 -] MCU28 |
90987-02027 |
from US $44.54 |
||
|
85916N
|
85916N
90987-02027 Relay[08.2003 -] MCU28 |
90987-02027 |
from US $44.54 |
||
|
85930G
|
85930G
90987-02009 Relay Assy[08.2003 -] MCU28 |
90987-02009 |
from US $32.51 |
||
|
89221
|
89221
89221-48230
Computer, Multiplex Network Body
[08.2003 -] MCU28 |
89221-48230 |
— | ||
|
89221
|
89221
89221-48240
Computer, Multiplex Network Body
[08.2003 -] MCU28 W(KEY LESS ENTRY) |
89221-48240 |
— | ||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046706155
|
9046706155
90467-06155 Clip |
90467-06155 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
