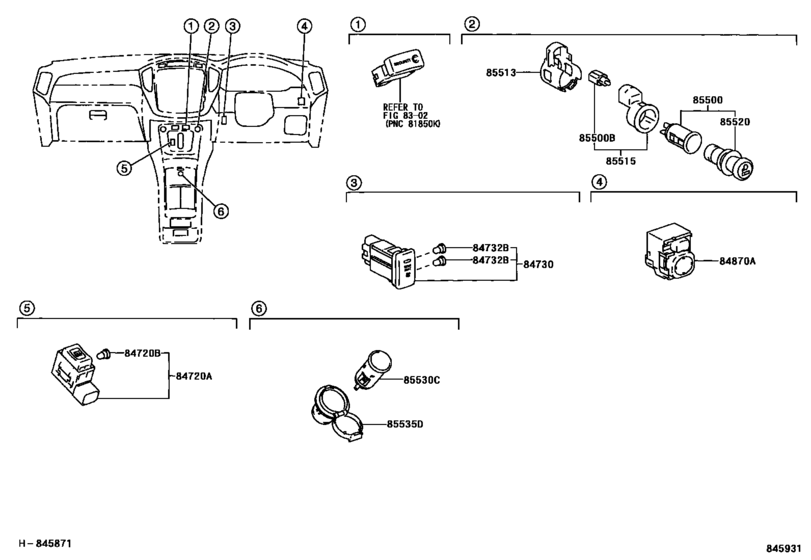

Switch & Relay & Computer ([08.2003 - ] INSTRUMENT PANEL (0308- )) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- MCU28
- body
- WG
- ENGINE
- 3MZFE
- DESTINATION
- ARL
- Model
- KLUGER
- From
- 08.2003
- To
- 05.2007
- Gear Shift Type
- 5FC
- Seating Capacity
- 5S
- Vehicle Model
- Kluger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84720A
|
84720A
84720-48010 Switch Assy, Pattern Select[08.2003 - 05.2007] MCU28 |
84720-48010 |
US $57.51 |
||
|
84720B
|
84720B
90010-01039 Blub, Center Cluster Module Switch[08.2003 -] MCU28 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.30 |
||
|
84870A
|
84870A
84872-52030 Switch Assy, Outer Mirror[08.2003 -] MCU28 |
84872-52030 |
US $53.29 |
||
|
85500
|
85500
85500-17050
Lighter Assy, Cigarette
[08.2003 -] MCU28 |
85500-17050 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[08.2003 -] MCU28 |
85500-12240 |
from US $27.83 |
||
|
85500B
|
85500B
90010-01022 Bulb, Key Cylinder Lamp[08.2003 -] MCU28 14V 1.4W,W(GREEN CAP) |
90010-01022 |
from US $2.65 |
||
|
85513
|
85513
85513-48010 Cover, Cigarette Lighter[08.2003 -] MCU28 |
85513-48010 |
US $6.84 |
||
|
85515
|
85515
85515-48010 Stay, Cigarette Lighter Bezel[08.2003 -] MCU28 |
85515-48010 |
US $11.53 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[08.2003 -] MCU28 |
85520-89101 |
from US $19.19 |
||
|
85530C
|
85530C
85530-33020 Socket Assy, Power Outlet, No.1[08.2003 - 05.2007] MCU28 |
85530-33020 |
from US $15.50 |
||
| replacement | |||||
|
85530C
|
85530C
85530-06010 Socket Assy, Power Outlet, No.1[08.2003 - 05.2007] MCU28 |
85530-06010 |
from US $26.06 |
||
|
85535D
|
85535D
85535-48060 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [08.2003 - 05.2007] MCU28 |
85535-48060 |
US $9.03 |
||
