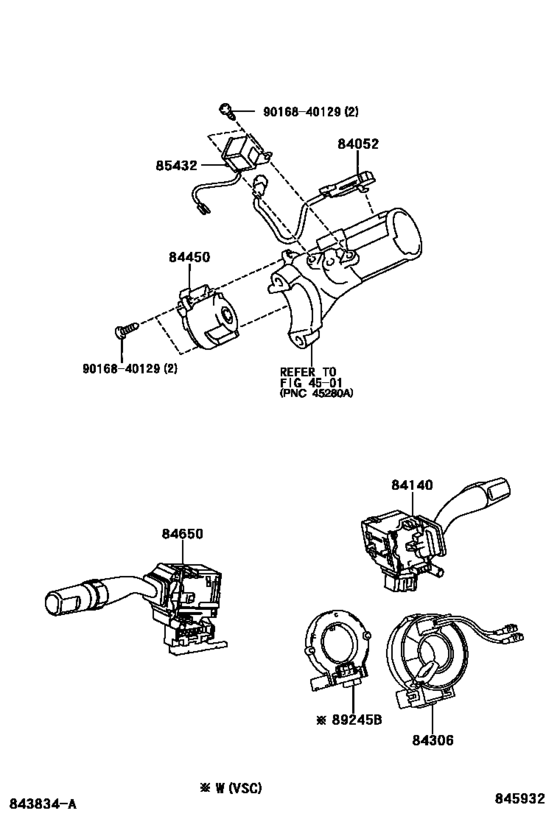

Switch & Relay & Computer ([08.2003 - ] IGNITION & COMBINATION SWITCH (0308- )) Diagram Toyota HIGHLANDER/ KLUGER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- MCU28
- body
- WG
- ENGINE
- 3MZFE
- DESTINATION
- ARL
- Model
- KLUGER
- From
- 08.2003
- To
- 05.2007
- Gear Shift Type
- 5FC
- Seating Capacity
- 5S
- Vehicle Model
- Kluger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-60020 Switch Assy, Un-Lock Warning[08.2003 - 05.2007] MCU28 |
84052-60020 |
US $16.02 |
||
| replacement | |||||
|
84052
|
84052
84052-22050 Switch Assy, Un-Lock Warning[08.2003 - 05.2007] MCU28 |
84052-22050 |
from US $14.26 |
||
|
84140
|
84140
84140-32220 Switch Assy, Headlamp Dimmer[08.2003 -] MCU28 |
84140-32220 |
from US $47.99 |
||
|
84140
|
84140
84140-48120 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2003 -] MCU28 W(FRONT FOG LAMP SW) |
84140-48120 |
US $154.34 |
||
|
84306
|
84306
84306-48040 Cable Sub-Assy, Spiral[08.2003 -] MCU28 |
84306-48040 |
US $279.55 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[08.2003 - 05.2007] MCU28 |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-2G410 Switch Assy, Windshield Wiper[08.2003 -] MCU28 |
84652-2G410 |
US $164.16 |
||
|
85432
|
85432
85432-42020 Solenoid, Key Inter Lock[08.2003 - 05.2004] MCU28 |
85432-42020 |
US $64.21 |
||
| replacement | |||||
|
85432
|
85432
85432-68010 Solenoid, Key Inter Lock[08.2003 - 05.2004] MCU28 |
85432-68010 |
US $53.29 |
||
|
85432
|
85432
85432-68010 Solenoid, Key Inter Lock[05.2004 - 05.2007] MCU28 |
85432-68010 |
US $53.29 |
||
|
89245B
|
89245B
89245-33030 Sensor, Steering[08.2003 - 08.2004] MCU28 |
89245-33030 |
US $313.04 |
||
| replacement | |||||
|
89245B
|
89245B
89245-33031 Sensor, Steering[08.2003 - 08.2004] MCU28 |
89245-33031 |
US $313.04 |
||
|
89245B
|
89245B
89245-33031 Sensor, Steering[08.2004 - 05.2007] MCU28 |
89245-33031 |
US $313.04 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
