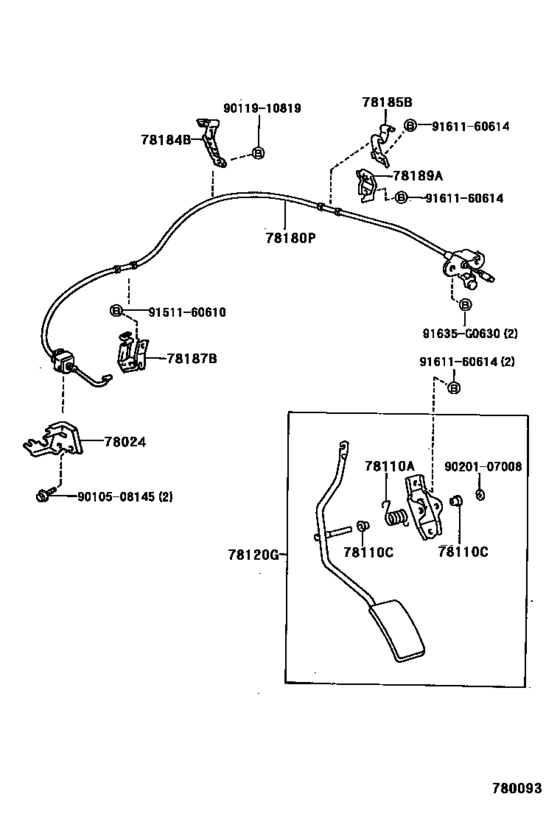

Accelerator Link ([04.1996 - 07.1998] (9604-9807)TDI) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- KZN185
- grade
- SSRX
- body
- WIB
- ENGINE
- 1KZTE
- TRANSMISSION
- ATM
- Model
- HILUX SURF
- From
- 08.1997
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux Surf
- Fuel Induction
- TDI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-35020 Bracket Sub-Assy, Accelerator Control Cable[07.1996 - 07.1998] KZN185..TDI |
78024-35020 |
US $18.05 |
||
|
78110A
|
78110A
90959-03085 Spring (For Accelerator Pedal Rod)[11.1995 - 07.1998] KZN185;RZN185..5F |
90959-03085 |
US $4.22 |
||
|
78110C
|
78110C
90386-08063
Bush (For Accelerator Pedal Rod)
[11.1995 -] KZN185,RZN18#,VZN18# |
90386-08063 |
— | ||
|
78120G
|
78120G
78010-35010
Rod Assy, Accelerator Pedal
[07.1998 - 08.2000] KZN185 |
78010-35010 |
— | ||
|
78120G
|
78120G
78120-35321
Rod Assy, Accelerator Pedal
[04.1996 - 07.1998] KZN185 |
78120-35321 |
— | ||
|
78180P
|
78180P
78180-35280
Cable Assy, Accelerator Control
[07.1996 - 07.1998] KZN185..TDI |
78180-35280 |
— | ||
|
78184B
|
78184B
78184-35130
Bracket, Accelerator Control Cable
[07.1996 - 07.1998] KZN185..TDI |
78184-35130 |
— | ||
|
78185B
|
78185B
78185-35020 Bracket, Accel Control No.6 Rod, Rear[11.1995 - 07.1998] KZN185,VZN185 |
78185-35020 |
US $7.13 |
||
|
78187B
|
78187B
78187-35020
Clamp, Accelerator Control Cable, No.4
[07.1996 - 07.1998] KZN185..TDI |
78187-35020 |
— | ||
|
78189A
|
78189A
78189-35010 Support, Accelerator Control Cable, No.2[11.1995 - 07.1998] KZN185,RZN185,VZN185 |
78189-35010 |
US $4.95 |
||
|
91635G0630
|
91635G0630
91635-G0630 New Genuine Part |
91635-G0630 |
US $1.46 |
||
| replacement | |||||
|
91635G0630
|
91635G0630
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.11 |
||
|
9010508145
|
9010508145
90105-08145 BOLT |
90105-08145 |
US $1.92 |
||
|
9011910819
|
9011910819
90119-10819 New Genuine Part |
90119-10819 |
US $1.75 |
||
|
9020107008
|
9020107008
90201-07008 New Genuine Part |
90201-07008 |
US $0.70 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
