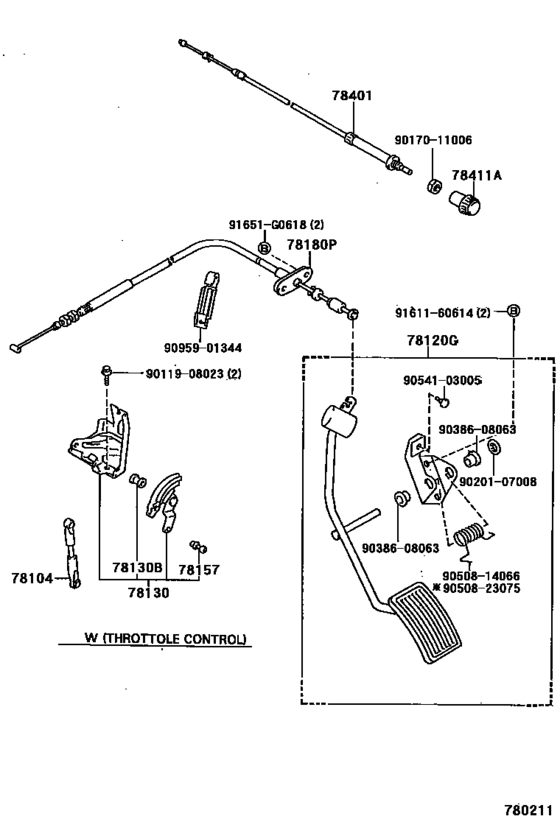

Accelerator Link ([08.1988 - ] (8808- )YN106,135..RHD) Diagram Toyota HILUX SURF/ 4RUNNER
- Year
- 1989 - 1991
- Sales region
- General
- Frame
- YN135
- grade
- DLX
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- 4RUNNER
- From
- 04.1989
- To
- 08.1991
- Body
- WG
- Gear Shift Type
- 5F
- Vehicle Model
- 4Runner
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- 4D
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78104
|
78104
78104-89106 Rod Sub-Assy, Accelerator Connecting, No.2[08.1988 - 08.1997] YN106,135 |
78104-89106 |
from US $8.04 |
||
|
78120G
|
78120G
78120-89145 Rod Assy, Accelerator Pedal[08.1988 - 08.1997] YN106,13#..RHD |
78120-89145 |
US $49.94 |
||
|
78120G
|
78120G
78120-89146
Rod Assy, Accelerator Pedal
[08.1988 - 08.1997] YN106,135..RHD W(THROTTLE ADJUS) |
78120-89146 |
— | ||
|
78130
|
78130
78130-35020 Bellcrank Assy, Accelerator[08.1988 - 08.1997] YN106,135 |
78130-35020 |
US $151.42 |
||
| replacement | |||||
|
78130
|
78130
78130-35030 Bellcrank Assy, Accelerator[08.1988 - 08.1997] YN106,135 |
78130-35030 |
from US $122.56 |
||
|
78130B
|
78130B
90386-08003
Bush, Accelerator Bellcrank
[08.1988 - 08.1991] YN106,135 |
90386-08003 |
— | ||
|
78157
|
78157
78157-10010 Ball, Accelerator Joint[08.1988 - 08.1991] YN106,135 |
78157-10010 |
US $1.41 |
||
|
78180P
|
78180P
78180-89155
Cable Assy, Accelerator Control
[08.1988 - 08.1997] YN106,135..RHD |
78180-89155 |
— | ||
|
78401
|
78401
78401-89113 Cable Sub-Assy, Throttle Control[04.1989 - 09.1999] LN10#,111,13#,YN106,135..RHD |
78401-89113 |
US $32.07 |
||
|
78411A
|
78411A
78411-89105 Knob, Throttle Control Cable[04.1989 - 06.2001] LN10#,111,13#,YN106,135 |
78411-89105 |
US $2.72 |
||
|
91651G0618
|
91651G0618
91651-G0618 New Genuine Part |
91651-G0618 |
US $0.92 |
||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9017011006
|
9017011006
90170-11006 Nut, Throttle |
90170-11006 |
US $1.60 |
||
|
9020107008
|
9020107008
90201-07008 New Genuine Part |
90201-07008 |
US $0.70 |
||
|
9038608063
|
9038608063
90386-08063
Bush (For Accelerator Pedal Rod)
|
90386-08063 |
— | ||
|
9050814066
|
9050814066
90508-14066 Spring (For Accelerator Pedal Rod) |
90508-14066 |
US $1.16 |
||
|
9050823075
|
9050823075
90508-23075
Spring (For Accelerator Pedal Rod)
|
90508-23075 |
— | ||
|
9054103005
|
9054103005
90541-03005 Cushion, Glove Compartment Door Check |
90541-03005 |
from US $3.20 |
||
|
9095901344
|
9095901344
90959-01344 New Genuine Part |
90959-01344 |
US $5.24 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
